620 RPS/EPS Connectivity
This section shows some recommended connection topologies using the 620
RPS/EPS. The 620 RPS/EPS can provide backup power support for up to two
ProCurve switches. In the illustration below, two ProCurve Switch 2910s are
connected to the RPS ports on a 620 RPS/EPS.

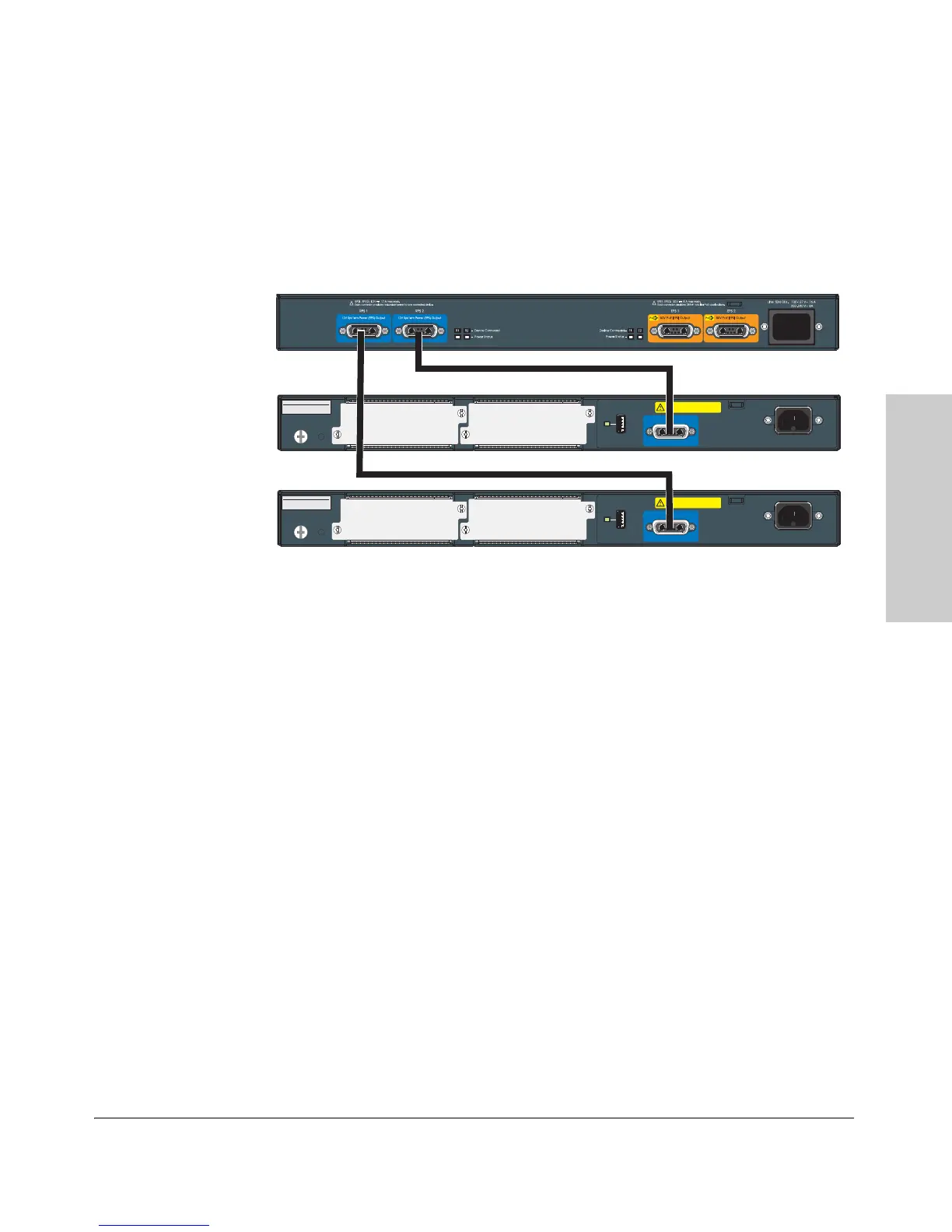

Figure 2-16. Connecting RPS to 2 switches
