Installing the Switch
Operating characteristics of the HP ProCurve 630 RPS/EPS
(J9443A)
The HP ProCurve 630 RPS/EPS has one RPS port, which can provide
redundant +12V power to a connected switch. If a switch with no AC power
is connected to an operating HP ProCurve 630 RPS/EPS, the switch will not
power on. For the switch to receive power from the external power supply,
the switch must first be powered up then connected to the external power
supply. For redundant AC power, connect the HP ProCurve 630 RPS/EPS to
the switch using the supplied RPS cable. The RPS cable is 2 meters (6.56 feet)
in length.
The HP ProCurve 630 RPS/EPS also has one EPS Port which can supply
backup or extra PoE+ power at 54V to the 2910al Switch.
HP ProCurve 630 RPS/EPS LEDs
The HP ProCurve 630 RPS/EPS LEDs are located on the front and back of the
device. The following illustration shows an example of the back of the HP
ProCurve 630 RPS/EPS. There are two dual colored (green/orange) LEDs for
each RPS and EPS port:
■ Device Connected
■ Power Status

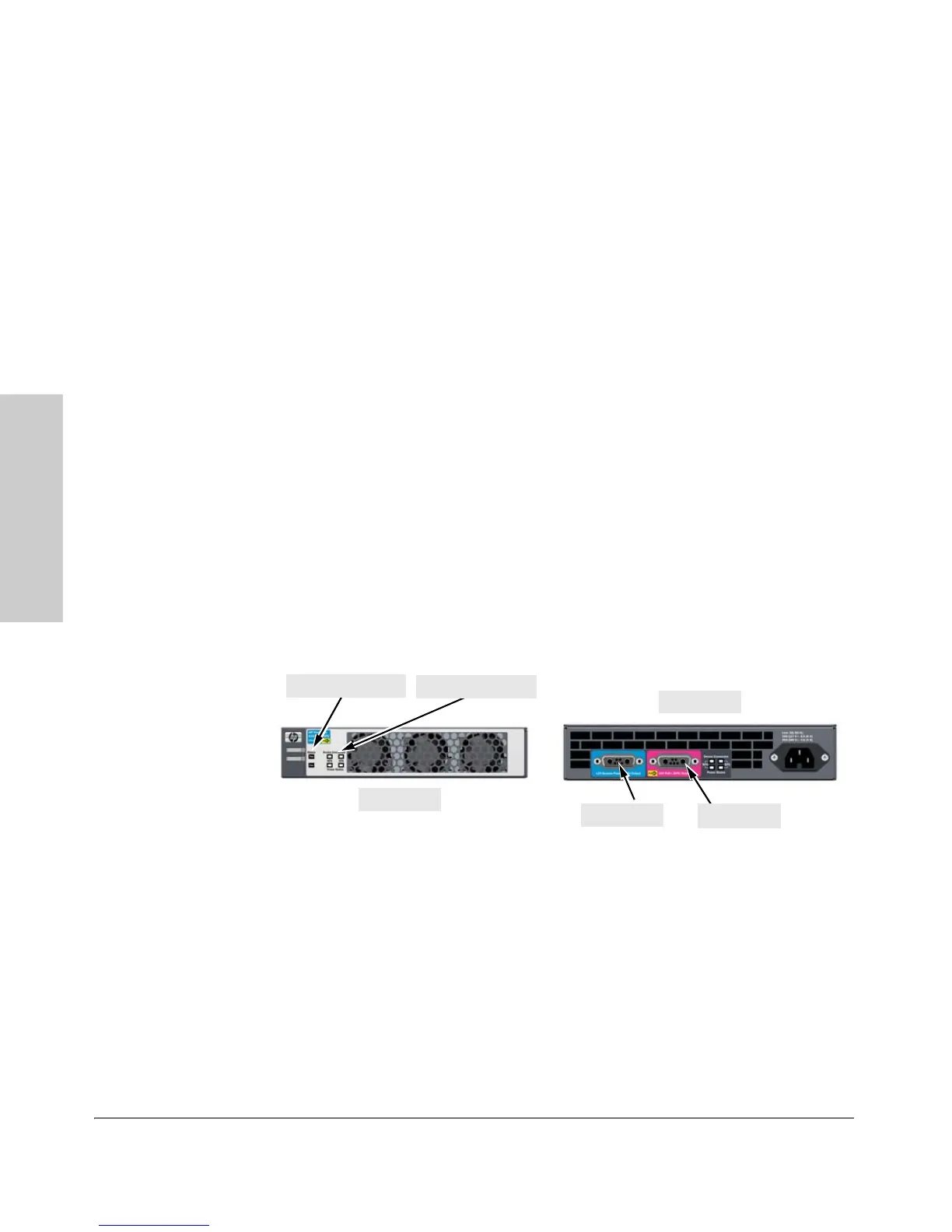

Figure 2-17. Front and Back of HP ProCurve 630 RPS/EPS
Temp and Fan LEDs
RPS/EPS port LEDs
RPS port
EPS port
Front
Back
