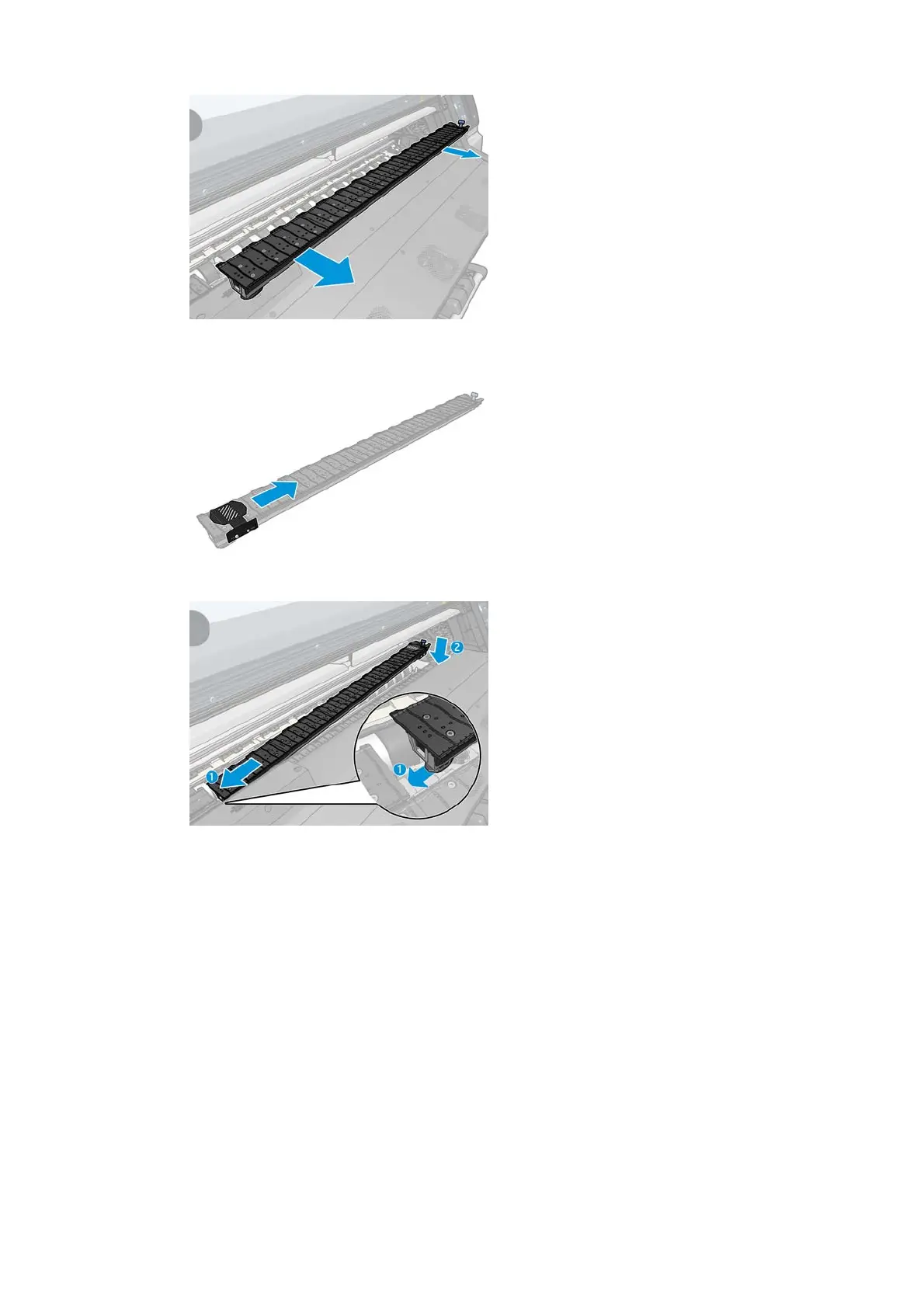

2. Slide the edge holder onto the platen module or ink collector, and adjust its position: on the left, as far
to the left as possible; on the right, as far to the right as possible.
3. Put back the platen module or ink collector with the edge holder in place.
4. Repeat with the platen module or ink collector on the other side.
Align the substrate
When the substrate has been loaded, align it with the white line on the edge holder. Misalignment could
result in a substrate jam, or damage to the substrate or to the printheads.
ENWW The edge holders 65
