80 Configuring Ethernet, IP, and VLAN settings
Employee wireless community
• R&D employees are assigned to VLAN 10 via attributes in their RADIUS account.
• Accounting employees are assigned to VLAN 15 via attributes in their RADIUS account.
• Employees without a VLAN assignment in their RADIUS account get assigned to the VLAN
that is configured for the wireless community, which in this example is 20. This enables
these employees to access the shared printer and the Internet.
Guest wireless community
• The Guest community does not use RADIUS. All traffic on the Guest community is assigned
to VLAN 20, providing access to the shared printer and the Internet.
Port statistics

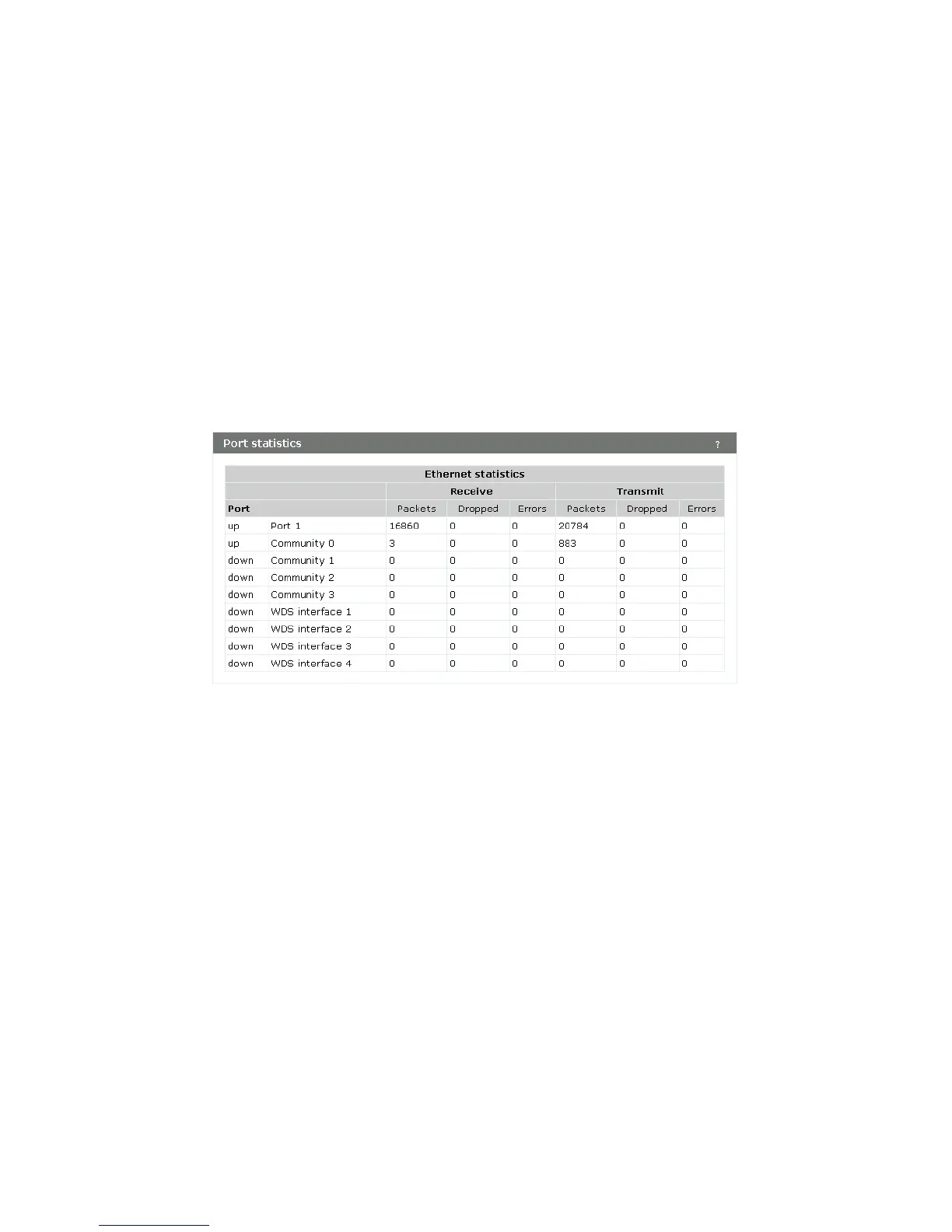

To view statistics on Ethernet packets received and transmitted on the wired and wireless ports,
select Status > Ports The Port statistics page displays.
The statistics accumulate until the AP is rebooted.
Port
The LAN port is listed as Port 1. The Wireless port entry includes all wireless communities and
WDS interfaces, even when not configured.
Packets
The total number of packets received or transmitted on the interface.
Dropped
The number of packets dropped upon receipt or transmission.
Errors
The number of packets received or transmitted that had errors.
