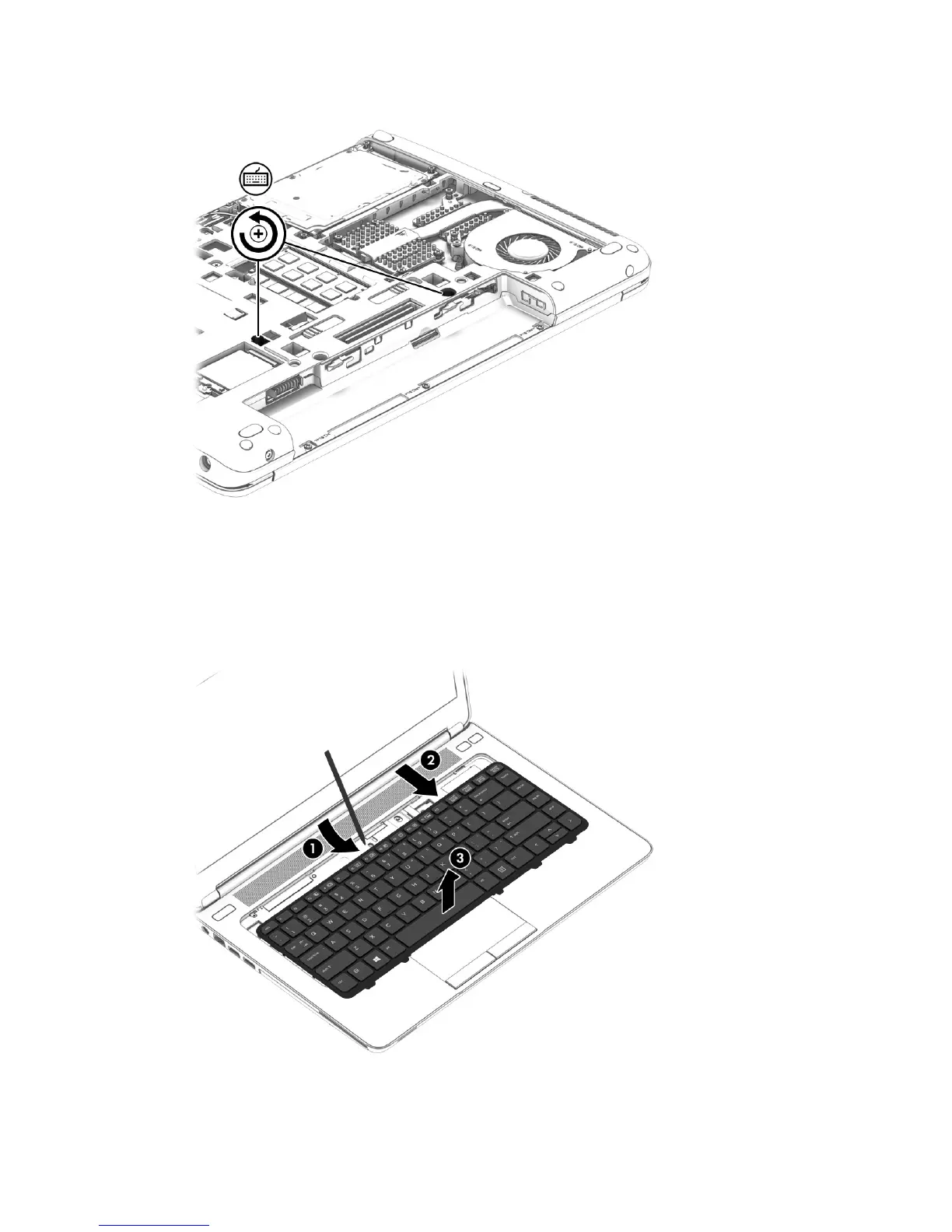

2. Loosen the two captive screws that secure the keyboard to the computer.
3. Open the computer facing toward you.
4. Insert a thin tool (1) at the back of the keyboard to release the tabs, and then press on the back
of the keyboard until the keyboard disengages from the computer.
5. Push down on the keyboard, and then slide the keyboard (2) toward the front of the computer.
6. Lift the keyboard (3) up.
7. Swing the keyboard (1) up and forward until it rests upside down on the palm rest.
46 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
