HP mt41 User Manual

Heat sink assembly
NOTE: The heat sink assembly spare part kit includes replacement thermal material.
Description Spare part number
Heat sink assembly (includes replacement thermal material) 738686-001
Before removing the heat sink assembly, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 32), and then remove the following components:
a. Service door (see
Service door on page 33)
b. Fan (see
Fan on page 44)

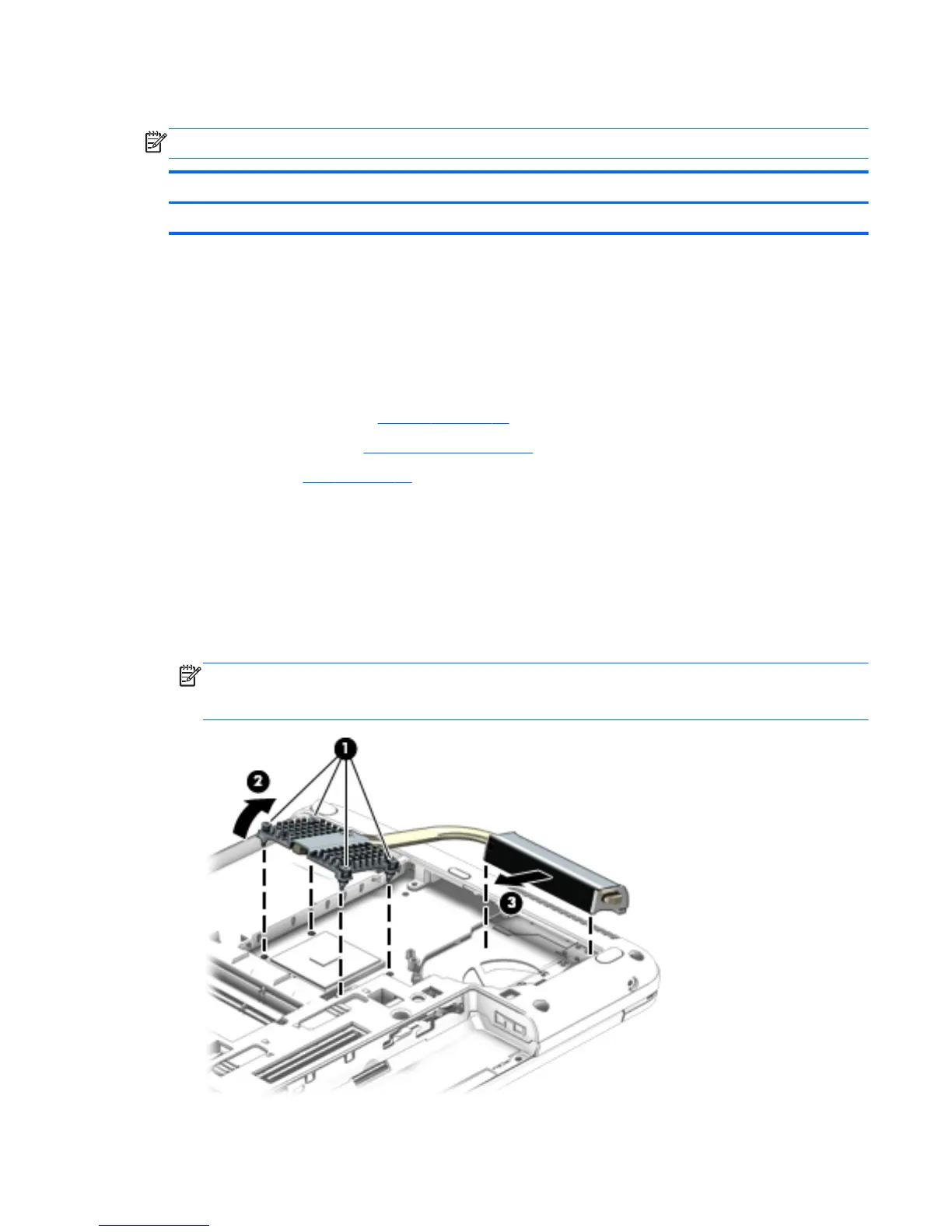

Remove the heat sink assembly:
1. Position the computer upside down, with the battery bay facing you.
2. Following the 1 through 4 sequence stamped into the processor heat sink, loosen the four
Phillips captive screws (1) that secure the processor heat sink to the system board.
3. Lift the heat sink assembly at an angle (2).
4. Remove the heat sink assembly (3).
NOTE: Due to the adhesive quality of the thermal material located between the heat sink
assembly and the system board components, it may be necessary to move the heat sink
assembly from side to side to detach it.
Component replacement procedures 51

HP mt41 Specifications

General

Form factor	Clamshell
Product type	Mobile thin client
Product color	Silver
Country of origin	China
Processor cache	1 MB
Processor cores	2
Processor model	A4-5150M
Processor family	AMD A4
Processor frequency	2.7 GHz
Processor manufacturer	AMD
Processor boost frequency	3.3 GHz
Motherboard chipset	AMD A76M FCH
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Optical drive type	No
Card reader integrated	Yes
Total storage capacity	16 GB
Compatible memory cards	SD
Number of SSDs installed	1
Display surface	-
Display diagonal	14 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon HD 8350G
On-board graphics card family	AMD Radeon HD 8000
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile network generation	3G
Charging port type	DC-in jack
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Pointing device	Touchpad
Operating system installed	Windows Embedded Standard
Battery capacity	55 Wh
Battery life (max)	8.5 h
Number of battery cells	6
AC adapter power	65 W

Weight and Dimensions

Depth	237 mm
Width	340 mm
Height	25.3 mm
Weight	2080 g
