HP mt41 User Manual

Power button board
Description Spare part number
Power button board (includes cable) 738399-001
Before removing the power button board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 32), and then remove the following components:
a. Service door (see
Service door on page 33)
b. Base enclosure (see
Base enclosure on page 55)
c. USB board (see
USB board on page 64)
d. Speakers (see
Speakers on page 65)
e. Power connector cable (see
Power connector cable on page 66)

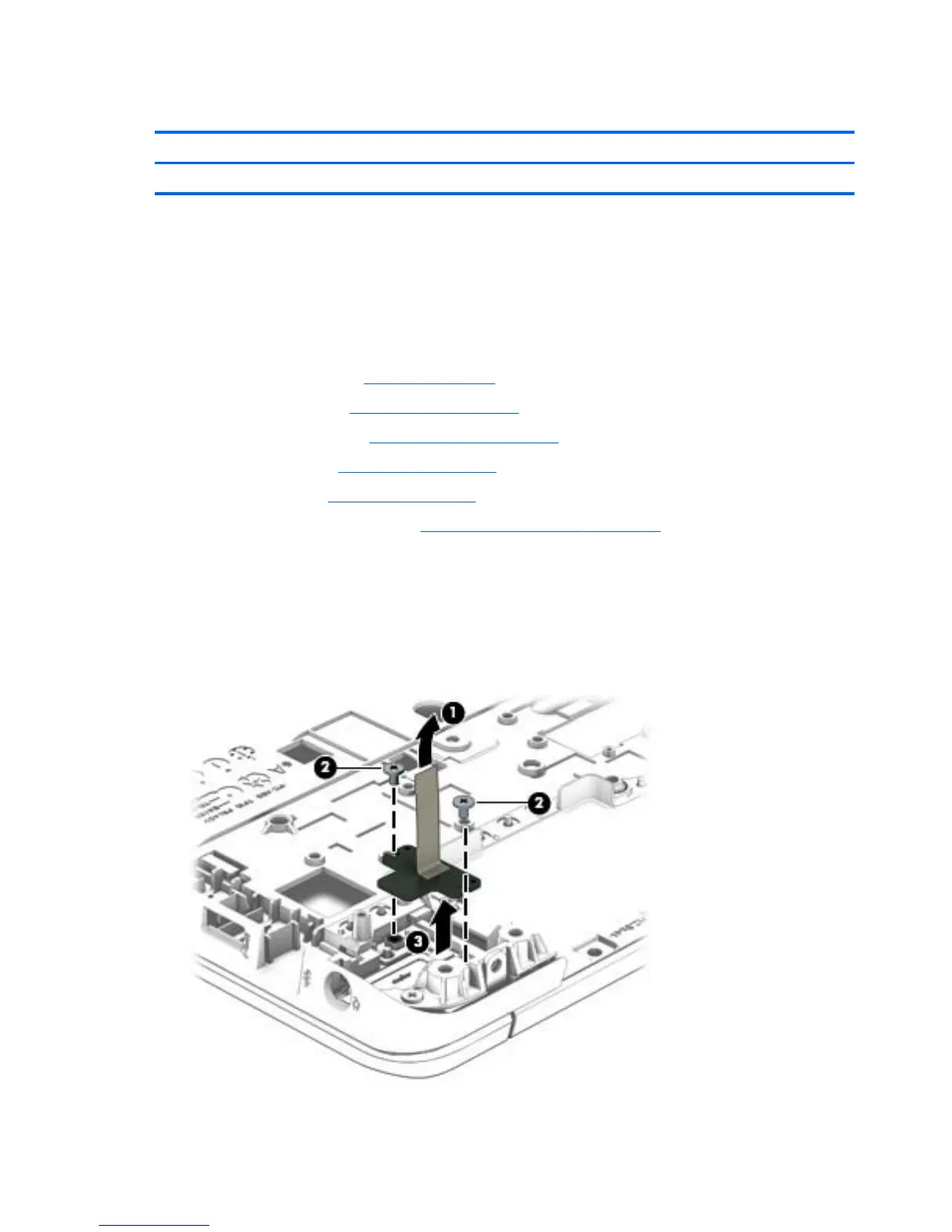

Remove the power button board:
1. Turn the top cover upside down, with the front toward you.
2. Lift up the power button board cable (1).
3. Remove the two Phillips screws (2) that secure the power button board to the top cover.
4. Remove the power button board (3) and cable.
Reverse this procedure to install the power button board.
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP mt41 Specifications

General

Form factor	Clamshell
Product type	Mobile thin client
Product color	Silver
Country of origin	China
Processor cache	1 MB
Processor cores	2
Processor model	A4-5150M
Processor family	AMD A4
Processor frequency	2.7 GHz
Processor manufacturer	AMD
Processor boost frequency	3.3 GHz
Motherboard chipset	AMD A76M FCH
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Optical drive type	No
Card reader integrated	Yes
Total storage capacity	16 GB
Compatible memory cards	SD
Number of SSDs installed	1
Display surface	-
Display diagonal	14 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon HD 8350G
On-board graphics card family	AMD Radeon HD 8000
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile network generation	3G
Charging port type	DC-in jack
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Pointing device	Touchpad
Operating system installed	Windows Embedded Standard
Battery capacity	55 Wh
Battery life (max)	8.5 h
Number of battery cells	6
AC adapter power	65 W

Weight and Dimensions

Depth	237 mm
Width	340 mm
Height	25.3 mm
Weight	2080 g
