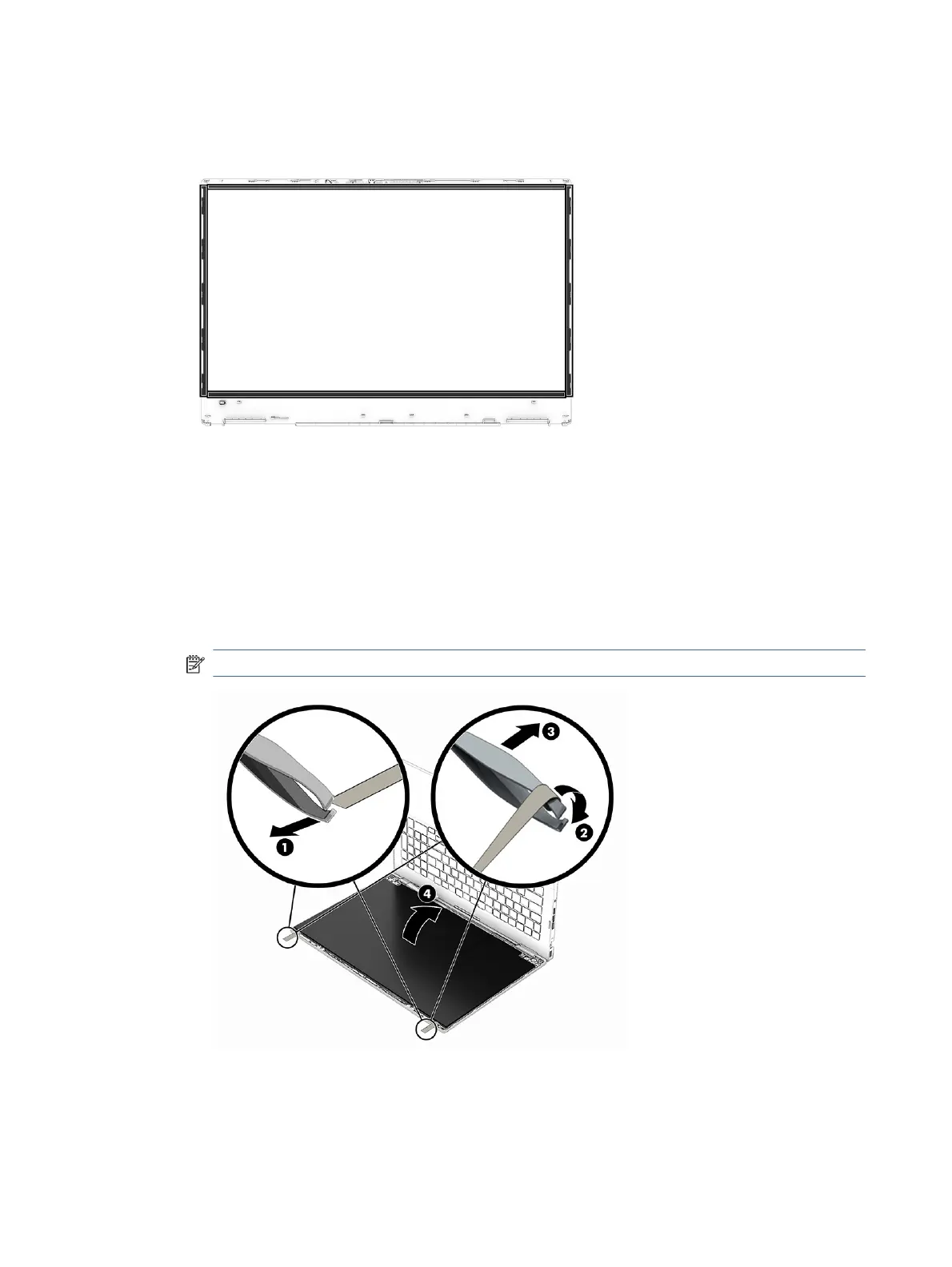

7. When installing a bezel, be sure the tape is installed on the inside of the bezel as shown in the following
illustration.
8. If you need to remove the display panel:
a. At the top left and right corners of the display panel, use tweezers to grasp the end of the retention
tape (1) that is installed under the left and right sides of the display panel.
b. While turning the tweezers (2), wrap the tape around the tweezers as you continue to pull the tape
(3) out from behind the display panel.
c. Lift the panel o the display enclosure (4).
NOTE: In this procedure, the display assembly will not be connected to the computer.
d. Peel the tape o the connector on the back of the display panel (1).
e. Lift the wire latch from the connector (2).
58
Chapter 6Removal and replacement procedures for authorized service provider parts
