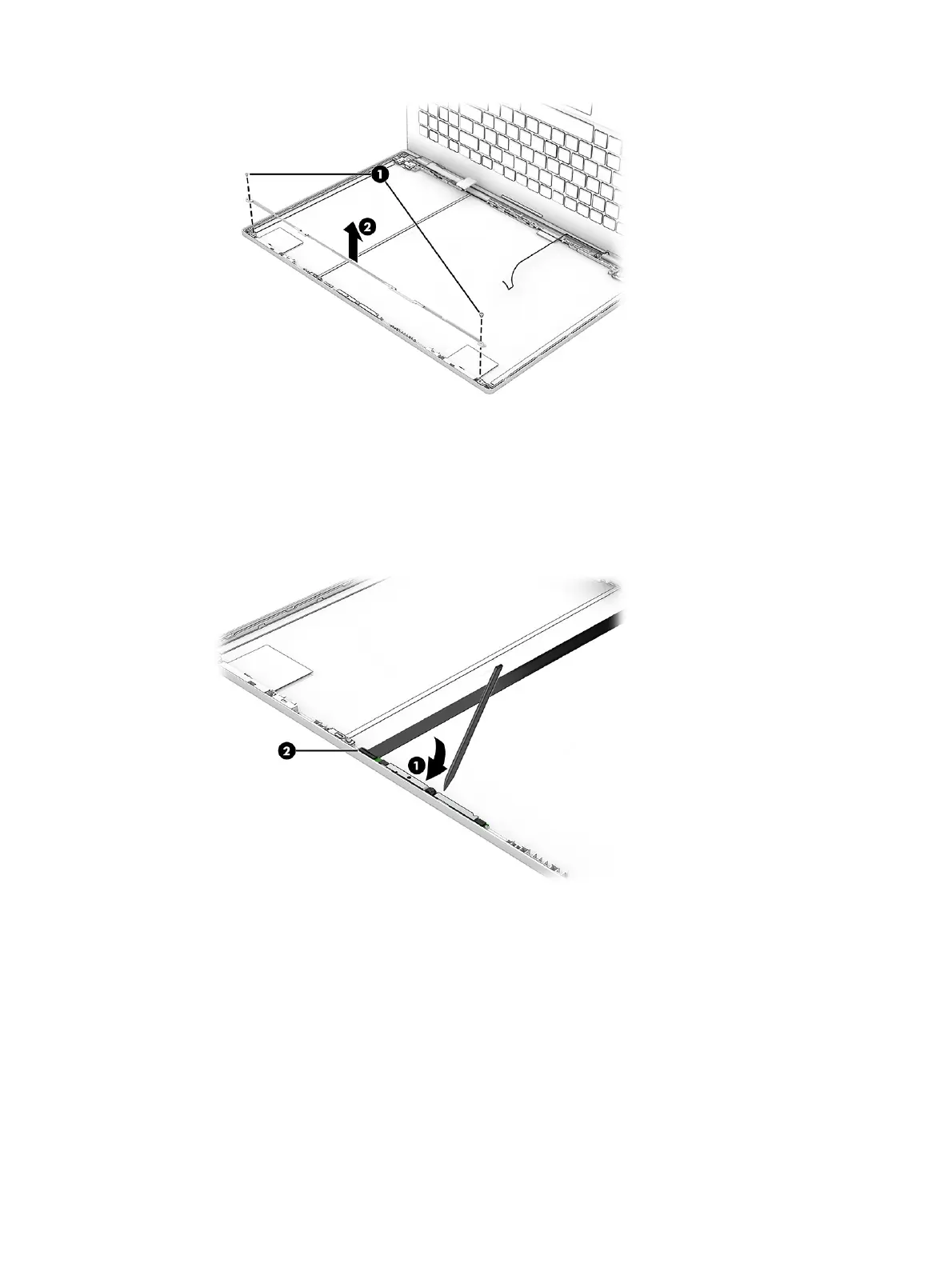

b. Use to tool to detach the module (1) from the display back cover. (The module is attached to the
display back cover with double-sided adhesive.)
c. Disconnect the cables from the reverse ZIF connector on the camera module (2), and then remove
the module.
The camera module is available as spare part number N14112-001.
10. If you need to remove the hinges from the display enclosure:
a. Remove the three broadhead Phillips M2.0 × 3.0 screws (1) that secure each hinge to the display
back cover.
b. Remove the two rubber pieces from inside each hinge cover (2).
c. Remove the WLAN antenna cables from the left hinge (3).
d. Remove the display cable from the right hinge (4).
e. Remove the hinges (5).
The display hinges are available using spare part number N14103-001.
60
Chapter 6Removal and replacement procedures for authorized service provider parts
