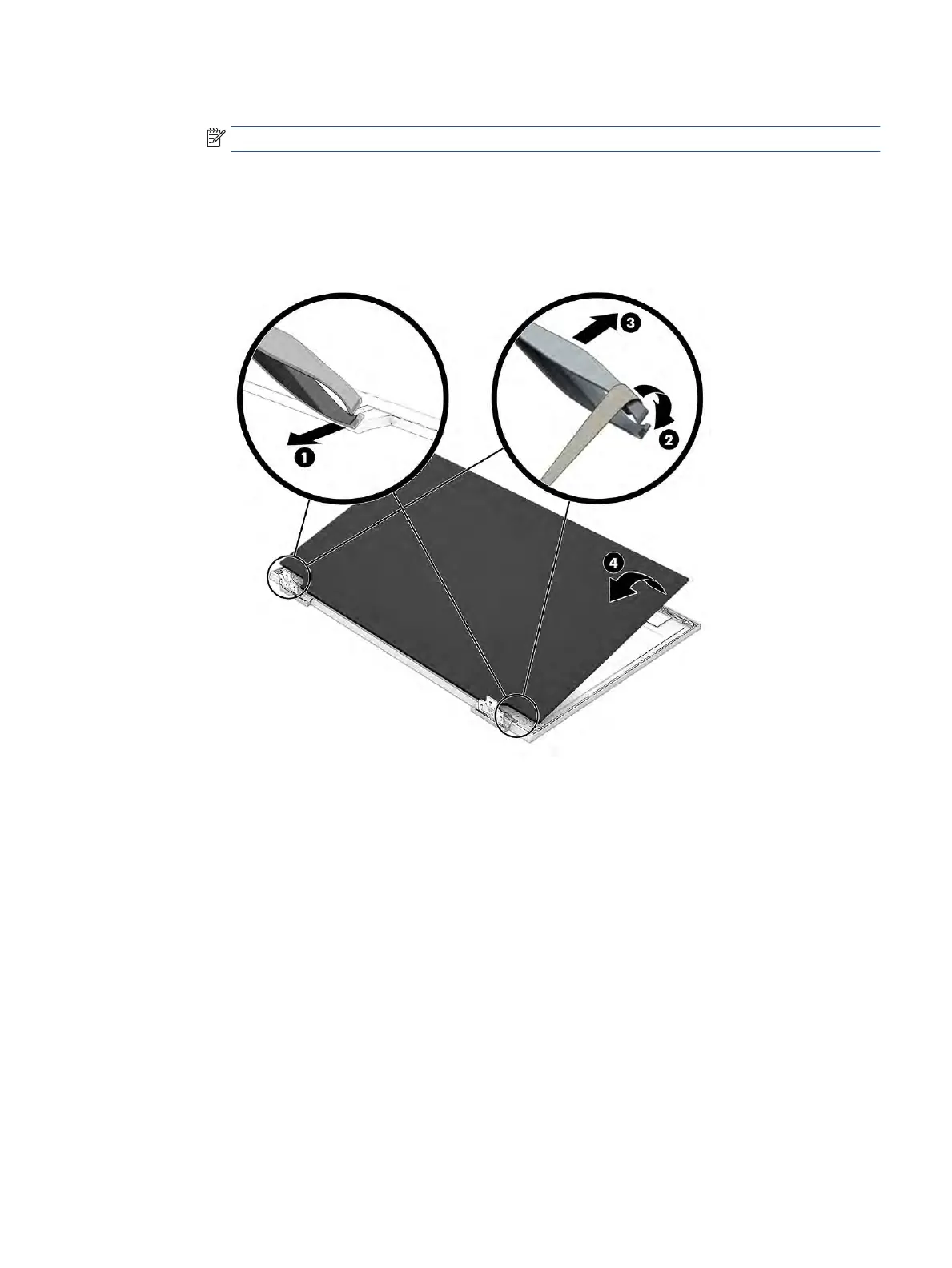

b. Rotate the display panel over and place it next to the display enclosure (4).
NOTE: Pull the tape out slowly and evenly to prevent it from breaking prematurely.
Display panels are available as the following spare part numbers:
M57128-001: QHD, 165 Hz
M57127-001: FHD, 144 Hz
M57126-001: FHD, 60 Hz
c. Release the adhesive support strip (1) that secures the display panel cable connector to the display
panel.
d. Disconnect the display panel cable (2) from the display panel.
Component replacement procedures 53
