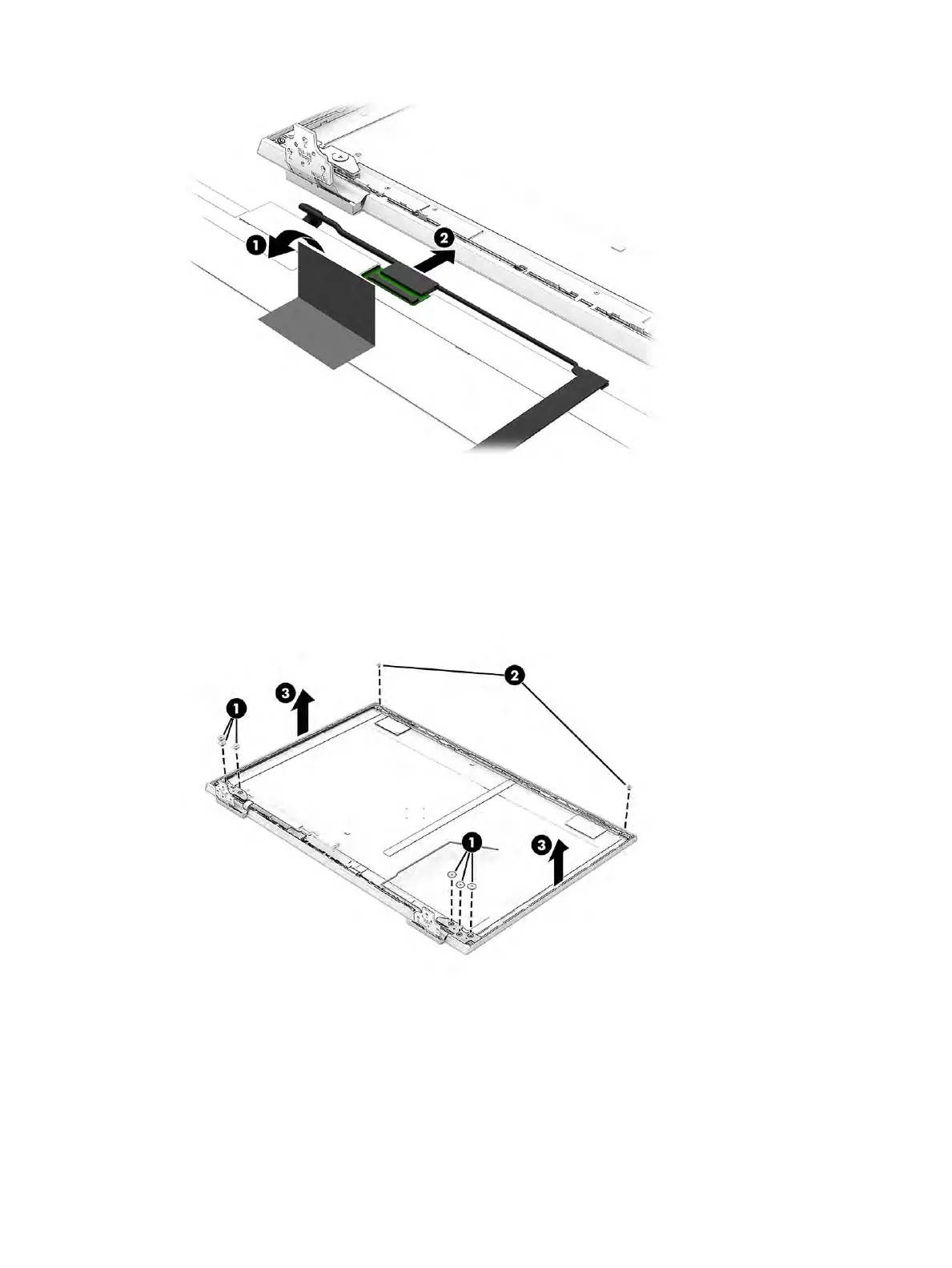

7. If you need to remove the hinges and side brackets from the display rear cover:
a. Remove the three Phillips M2.5 × 3.0 screws (1) from the bottom of each hinge.
b. Remove the Phillips M2.0 × 3.0 screw (2) from the top of each hinge.
c. Remove the display hinges from the display back cover (3).
The display hinges are available as spare part number M57119-001.
54 Chapter 5 Removal and replacement procedures for authorized service provider parts
