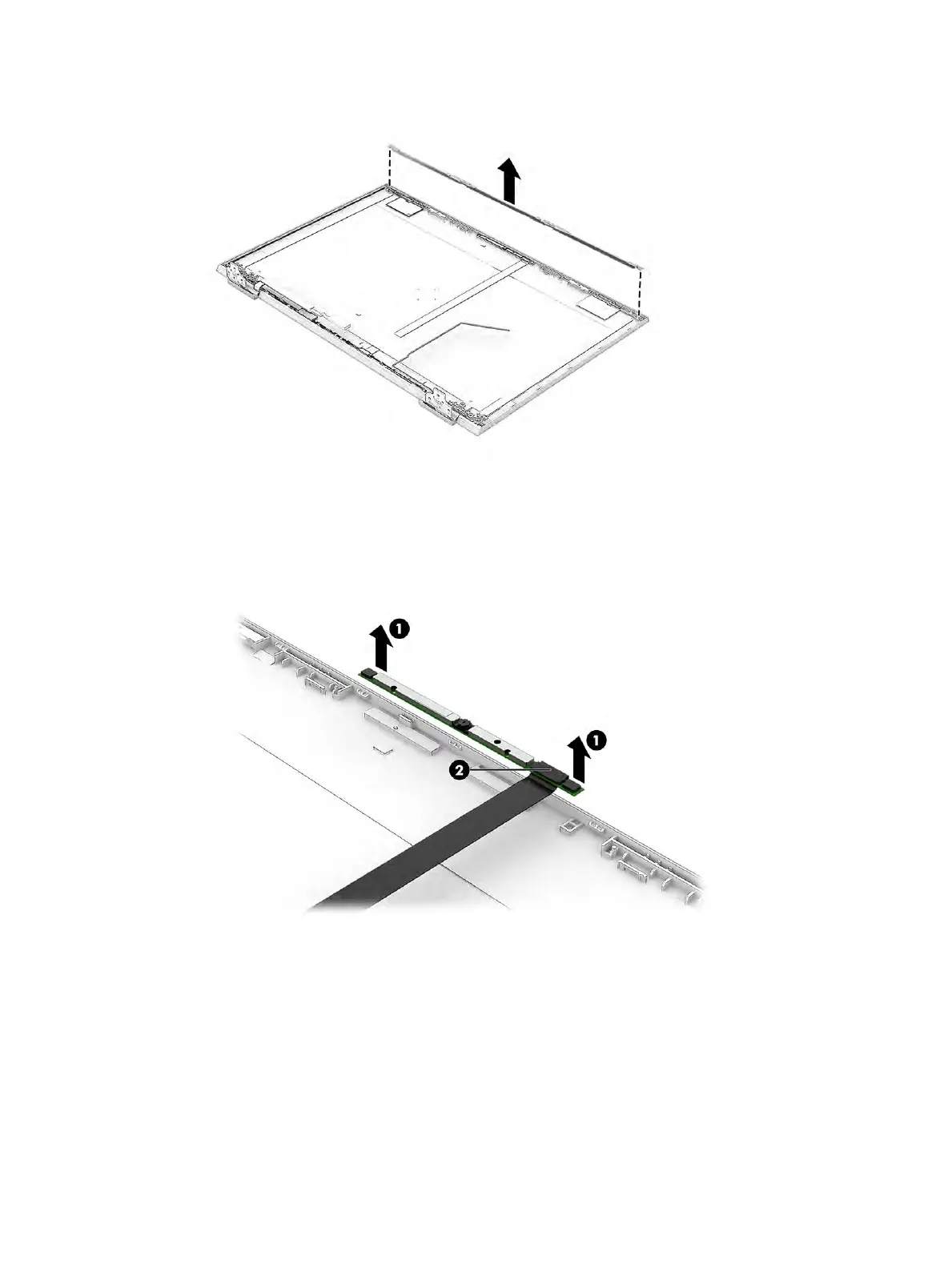

8. To remove the top bracket, pull the bracket o the top of the display rear cover.
9. If you need to remove the camera module:
a. Use a tool to detach the camera module (1) from the display back cover. (The module is attached
with double-sided adhesive.)
b. Disconnect the cable from the module (2). Note that the cable routes under the module. The
camera module is available as spare part number M57138-001.
10. If you need to remove the hinge covers from the hinges:
a. Remove the rubber pieces from the inside of each hinge cover (1).
b. Remove the Phillips M1.6 × 2.0 screw from the inside of each hinge cover (2).
c. Slide the hinge covers o the hinges (3).
The hinge covers are available as spare part number M57120-001.
Hinge cover rubber caps are available as spare part number M57121-001.
Component replacement procedures 55
