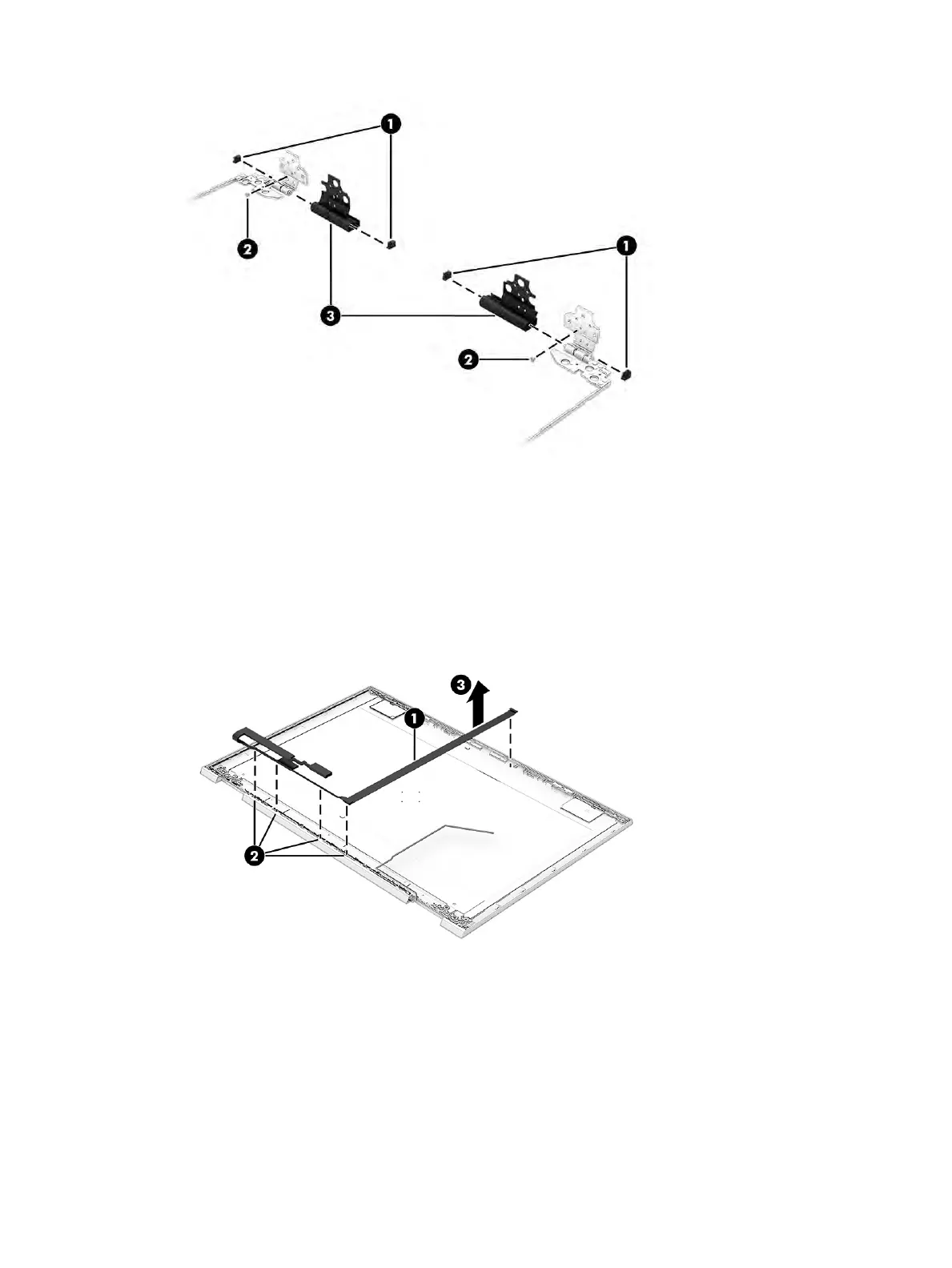

11. If you need to remove the display/camera cable, peel the cable o the inside of the display back cover
(1), remove the cable from the routing along the bottom of the display rear cover (2), and then remove
the cable from the display rear cover (3).
Display panel cables are available as the following spare part numbers:
M57112-001: QHD 165 Hz panels
M57111-001: FHD 60 Hz panels
M84808-001: FHD 144 Hz panels
56 Chapter 5 Removal and replacement procedures for authorized service provider parts
