Changing the Cutting Head
You can change the cutting head on the cutting device as necessary.
To obtain a new cutting head, please contact your supplier or the manufacturer.
F G
H I
1

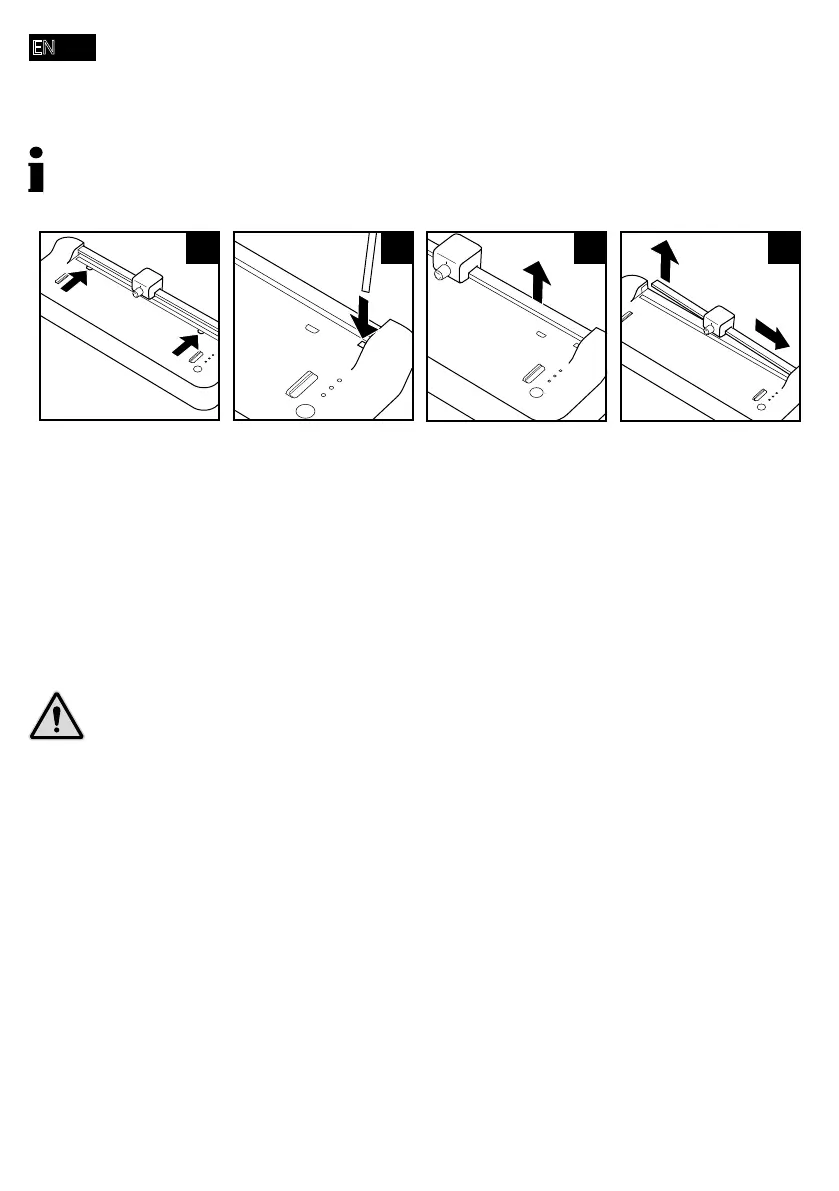

2 Guide a suitable tool (e.g. the plastic rail or slot screwdriver) in the recess (G) beside the right-
hand holder, press the tool down and maintain the pressure.
Î The lock in the right-hand holder is released.
3 Raise the guide rail up as far as possible (H) and slide the guide rail to the right (I) until the
guide rail is released from the left-hand holder. Remove the guide rail.
Î You have disassembled the guide rail together with the cutting head.
Caution!
Do not touch the knife blades in the cutting heads to be changed.
4 Pull the old cutting head from the guide rail.
5 Assemble the new cutting head on the guide rail in the direction of installation.
6
hand holder and then in the left-hand holder.
7 Remove the tool from the recess and engage the lock.
8
9 Fix the plastic rail in place.
10 Check the function of the cutting head.
Î The cutting head has been changed.
