HP P2000 G3 User Manual

28 Installing the enclosures
NOTE: For clarity, the schematic illustrations of controller and expansion modules shown in this section
provide only relevant details such as expansion ports within the module face plate outline. For detailed
illustrations showing all components, see Rear panel components on page 19.

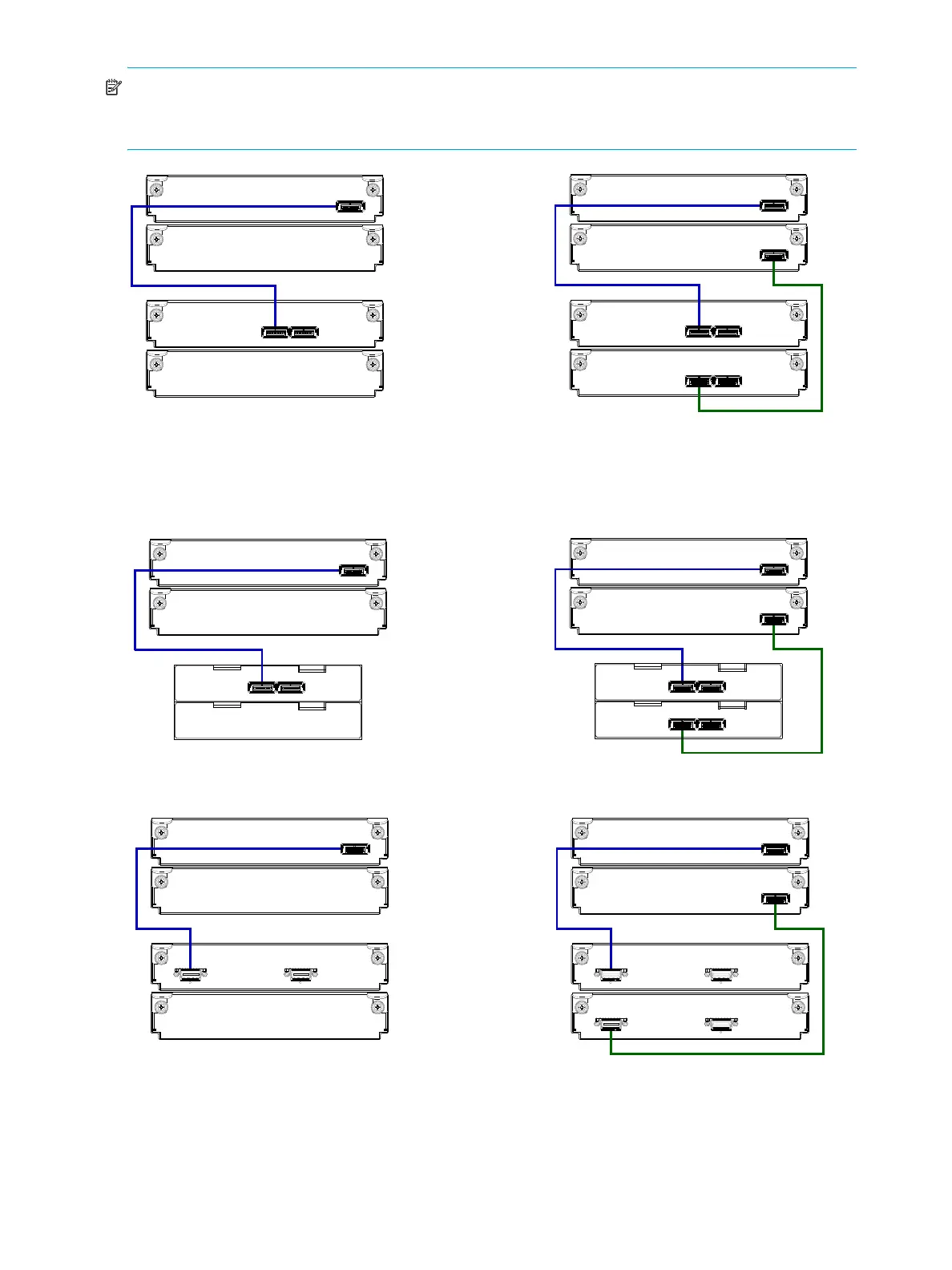

Figure 2 Cabling connections between P2000 G3 MSA System controllers and P2000 6Gb drive
enclosures
Figures 2 - 4 show a single controller module connected to a single expansion module (illustrations on left),
with dual controller modules connected to dual expansion modules (illustrations on right).
Figure 3 Cabling connections between P2000 G3 controllers and D2700 6Gb drive enclosures
Figure 4 Cabling connections between P2000 G3 controllers and MSA2000 3Gb drive enclosures
In Out
1A
2A
Controller A
In Out
1B
1A
2A
2B
Controller A
Controller B
In Out
P1 P2
1A
2A
Controller A
P1 P2
1A
2A
Controller A
Controller B
P1 P2
1B
2B
In Out
1B
1A
2A
2B
Controller A
Controller B
In Out
In Out
1A
2A
Controller A

HP P2000 G3 Specifications

General

Model	P2000 G3
Category	Storage
Drive Support	SAS, SATA
Host Interface	iSCSI, Fibre Channel, SAS
Form Factor	2U
RAID Levels	0, 1, 5, 6, 10
Cache	2 GB
Drive Bays	12 (SFF), 24 (SFF), 12 (LFF)
Cache Memory	2GB per controller
Operating Temperature	10°C to 35°C
Power Supply	Redundant
Expansion Options	Disk Enclosures
