HP P2000 G3 SAS MSA System User Guide 61

D2700 6Gb drive enclosure

P2000 G3 MSA System controllers support D2700 6Gb drive enclosures. For information about

P2000G3MSA System products, visit http://www.hp.com/go/p2000

. Select Related products, select

your drive enclosure, select Support > HP Support & Drivers from the right side of the page, select your

product name, and select Manuals.

P2000 6Gb 3.5” 12-drive enclosure

MSA70 3Gb drive enclosure

A P2000 G3 MSA System controller can also be attached to an MSA70 3Gb drive enclosure running

firmware version 2.18 or later. For information about the MSA70 3Gb drive enclosure, including detailed

steps to upgrade the firmware, see the HP StorageWorks 70 Modular Smart Array Enclosure User Guide

located on the MSA2000 G2 Software Support/Documentation CD shipped with your product, or at

http://hp.com/support/manuals

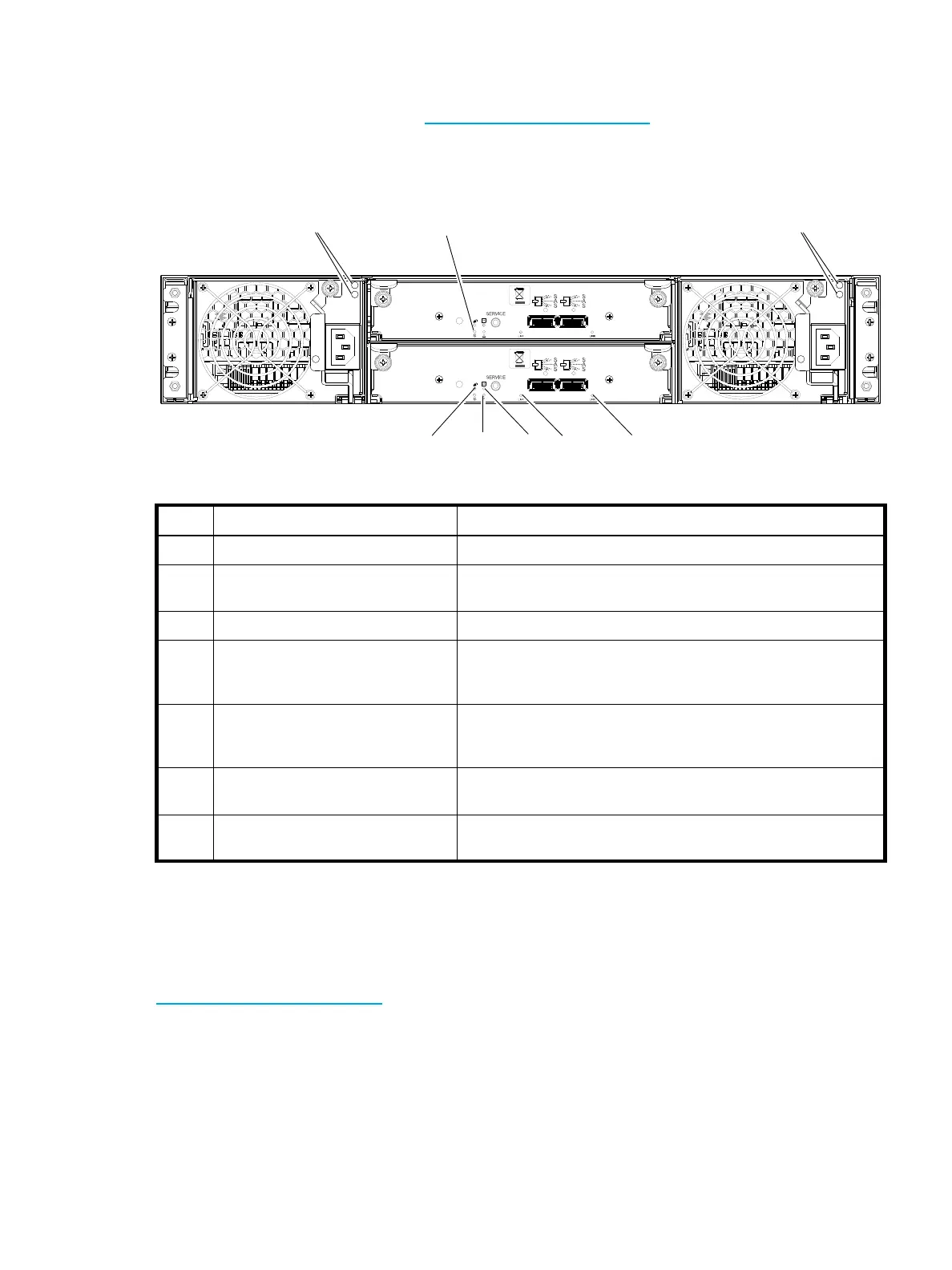

Table 16 LEDs — HP P2000 6Gb rear panel

LED Description Definition

1 Power supply LEDs See Power supply LEDs on page 63.

2 Unit Locator Off — Normal operation.

Blinking white— Physically identifies the expansion module.

3 OK to Remove Not implemented.

4 Fault/Service Required Amber — A fault has been detected or a service action is required.

Blinking amber — Hardware-controlled powerup or a cache flush

or restore error.

5 FRU OK Green — Expansion module is operating normally.

Blinking green — System is booting.

Off — Expansion module is not OK.

6 SAS In Port Status Green — Port link is up and connected.

Off — Port is empty or link is down.

7 SAS Out Port Status Green — Port link is up and connected.

Off — Port is empty or link is down.

IN OUT

3 4 5
