HP P2000 G3 User Manual

62 LED descriptions
MSA2000 3Gb 3.5” 12-drive enclosure

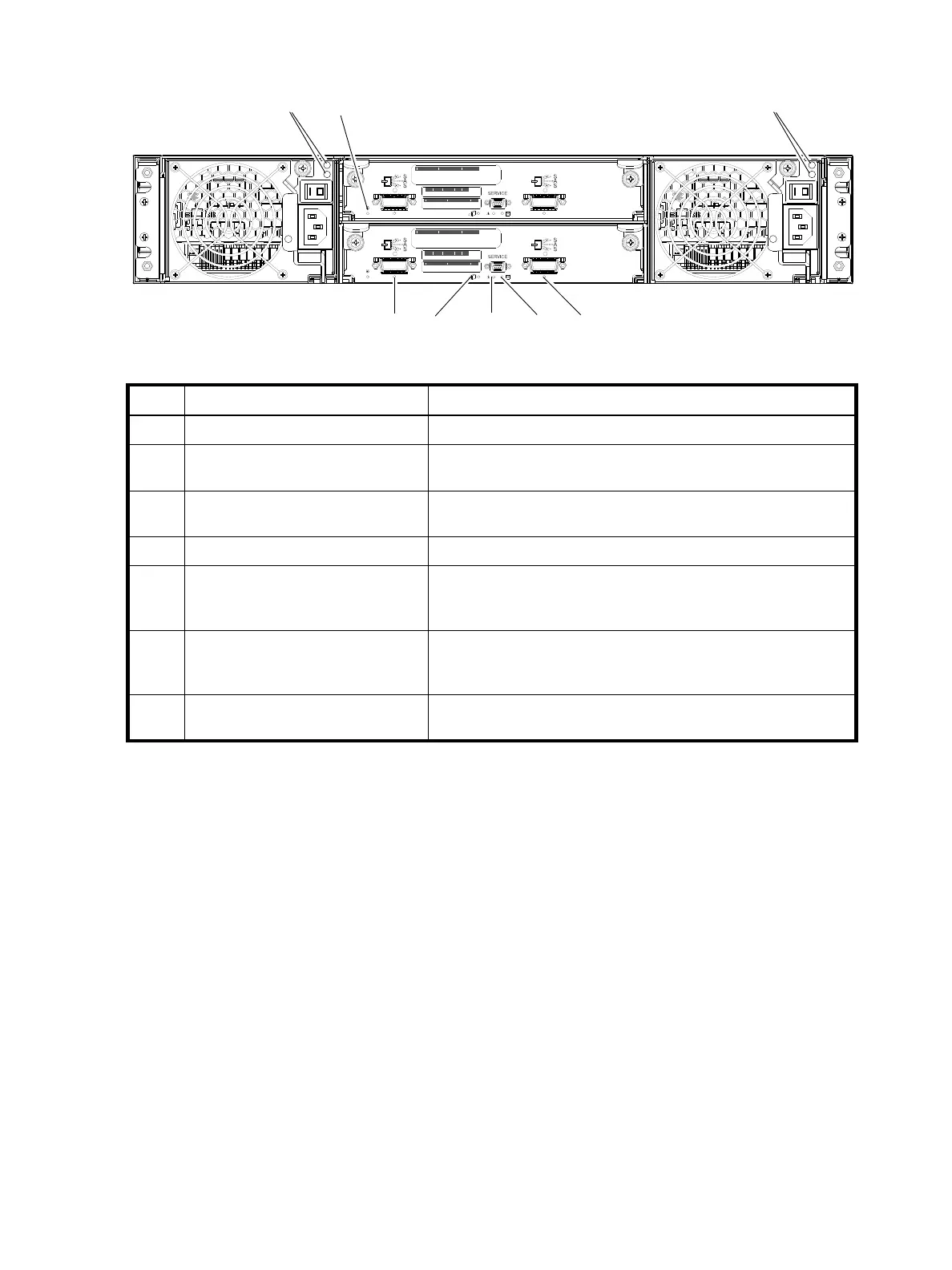

Table 17 LEDs — HP MSA2000 3Gb rear panel
LED Description Definition
1 Power supply LEDs See Power supply LEDs on page 63.
2 Unit Locator Off — Normal operation.
Blinking white— Physically identifies the expansion module.
3 SAS In Port Status Green — Port link is up and connected.
Off — Port is empty or link is down.
4 OK to Remove Not implemented.
5 Fault/Service Required Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled powerup or a cache flush
or restore error.
6 FRU OK Green — Expansion module is operating normally.
Blinking green — System is booting.
Off — Expansion module is not OK.
7 SAS Out Port Status Green — Port link is up and connected.
Off — Port is empty or link is down.
00
1 2
4356 7
1

HP P2000 G3 Specifications

General

Model	P2000 G3
Category	Storage
Drive Support	SAS, SATA
Host Interface	iSCSI, Fibre Channel, SAS
Form Factor	2U
RAID Levels	0, 1, 5, 6, 10
Cache	2 GB
Drive Bays	12 (SFF), 24 (SFF), 12 (LFF)
Cache Memory	2GB per controller
Operating Temperature	10°C to 35°C
Power Supply	Redundant
Expansion Options	Disk Enclosures
