HP P2000 G3 User Manual

HP P2000 G3 SAS MSA System User Guide 31

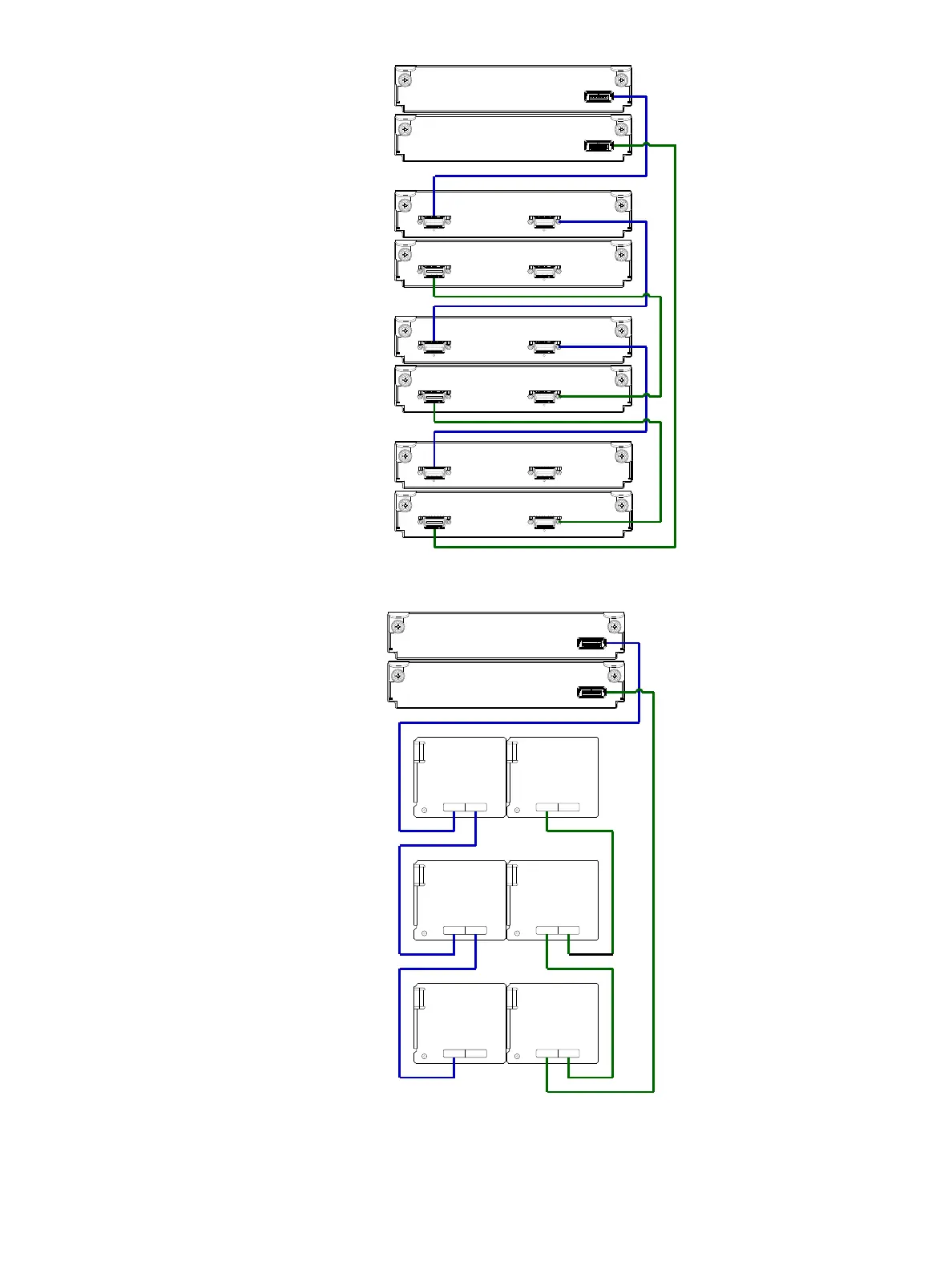

Figure 8 Fault-tolerant cabling: P2000 G3 controllers and MSA2000 3Gb drive enclosures
Figure 9 Fault-tolerant cabling: P2000 G3 controllers and MSA70 3Gb drive enclosures
Out
In
Controller A
Controller B
Out
In
Out
In
Out
In
Out
In
Out
In
1A
1B
2A
2B
3A
3B
4A
4B
1B
1A
Controller B
Controller A
In Out
2A
In Out
2B
In Out
3A
In Out
3B
In Out
4A
In Out
4B

HP P2000 G3 Specifications

General

Model	P2000 G3
Category	Storage
Drive Support	SAS, SATA
Host Interface	iSCSI, Fibre Channel, SAS
Form Factor	2U
RAID Levels	0, 1, 5, 6, 10
Cache	2 GB
Drive Bays	12 (SFF), 24 (SFF), 12 (LFF)
Cache Memory	2GB per controller
Operating Temperature	10°C to 35°C
Power Supply	Redundant
Expansion Options	Disk Enclosures
