12

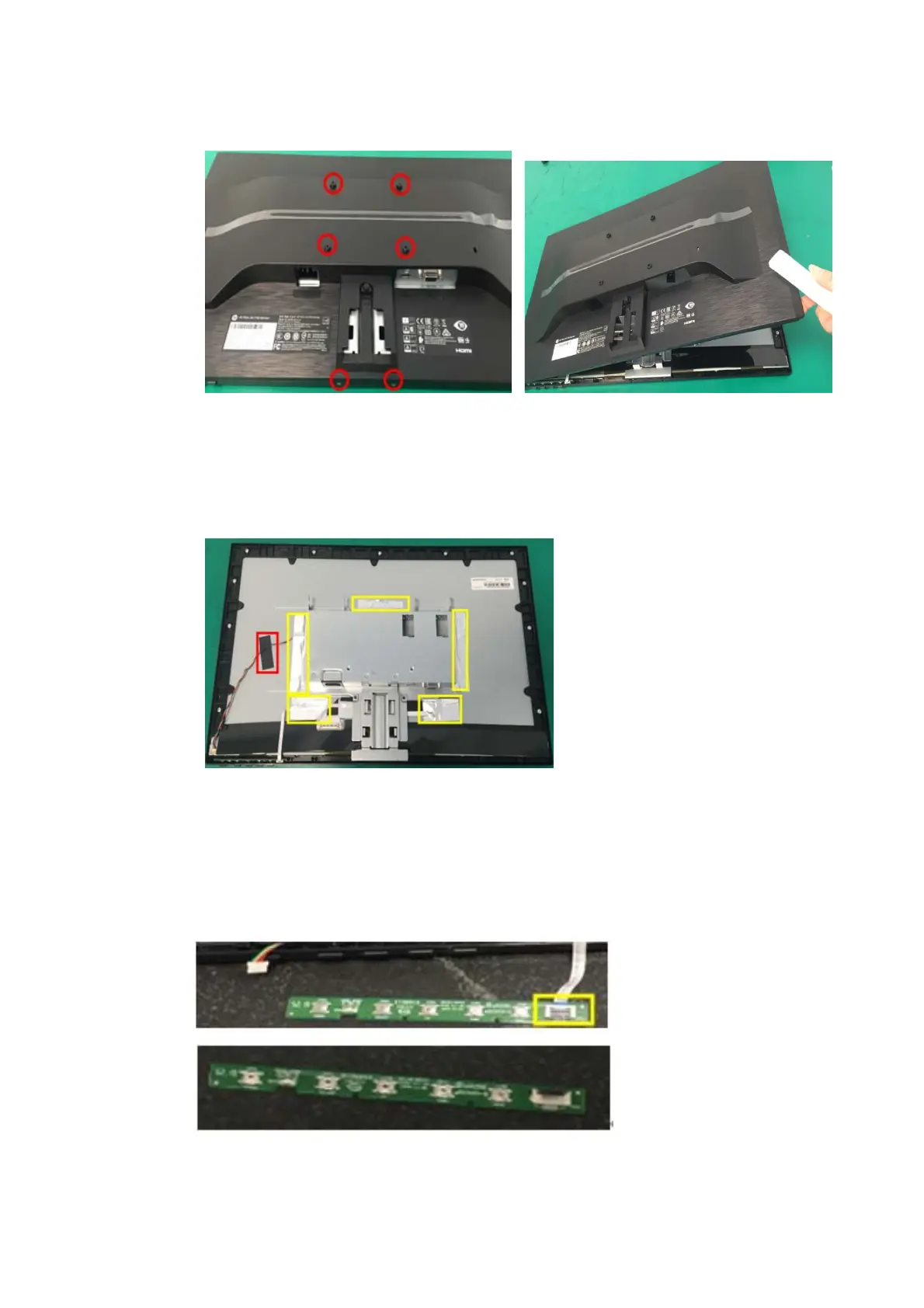

3) Remove the rear cover. Remove the screws that lock the rear case and use the knife to remove the
case.
4) Remove shielding case/cables. Remove the acetate tape (red frame) that fixes the wire and the
isolation cover as shown in the figure, and then remove the aluminum foil (yellow frame)
5) Remove KB from rear cover. Take the function key board out of the front frame, remove the tab on
the function key board, and pull out the function key wire.
