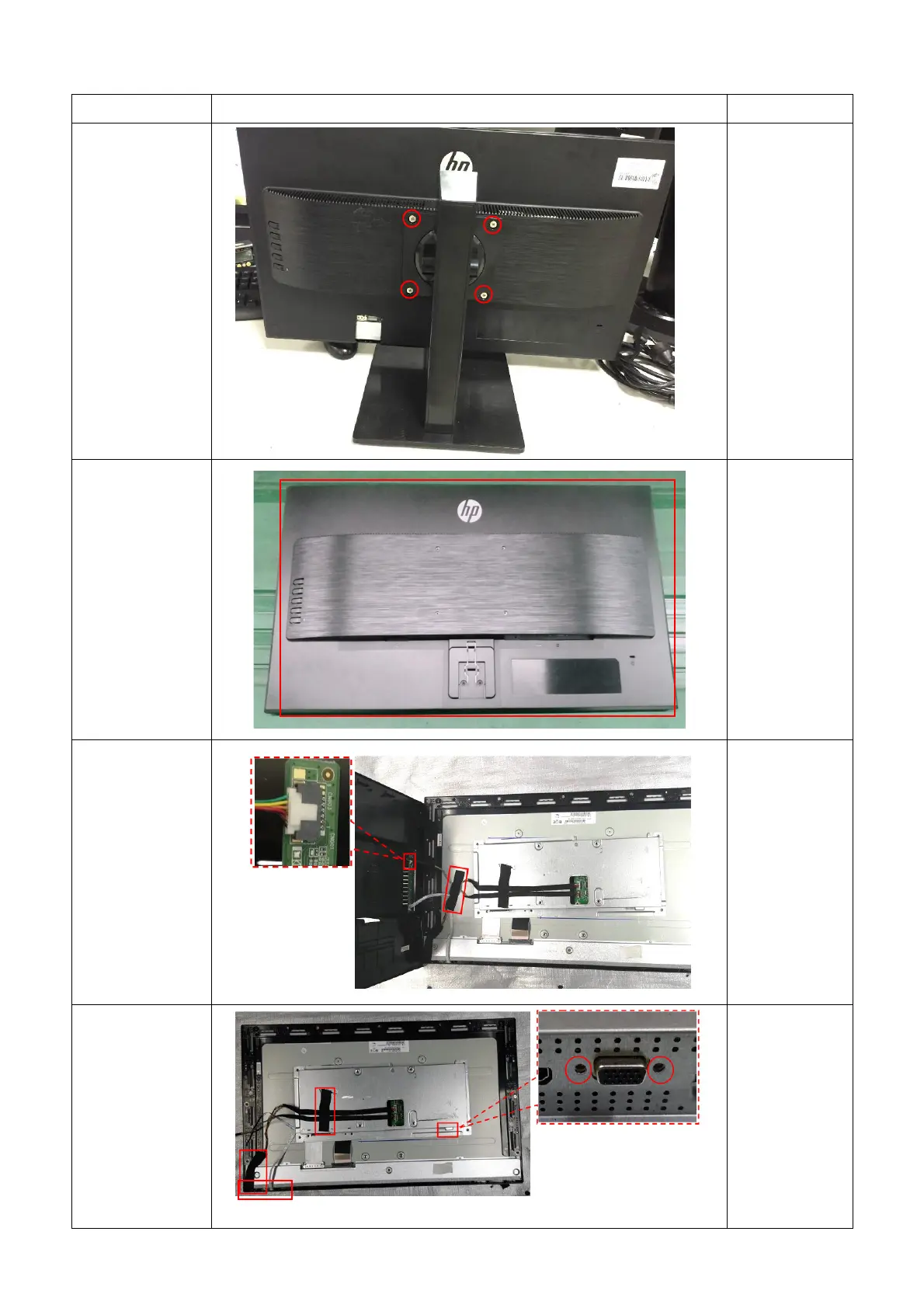

12. Mechanical Instructions
Step Figure Description
Preparation and
remove the
stand-base
ass'y
Lay the monitor
on a flat, soft
and clean
surface.
Remove the
screws to
remove the
stand-base
assy.
Remove the rear
cover
Remove the
rear cover
Disconnect the
cable and the
tape
Disconnect the
cable and the
tape
Disconnect the
tapes and
remove the
screws. Remove
the Led Board
Disconnect the
tapes and
remove the
screws.
Remove the
LED Board
