3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 47).
Remove the optical drive:

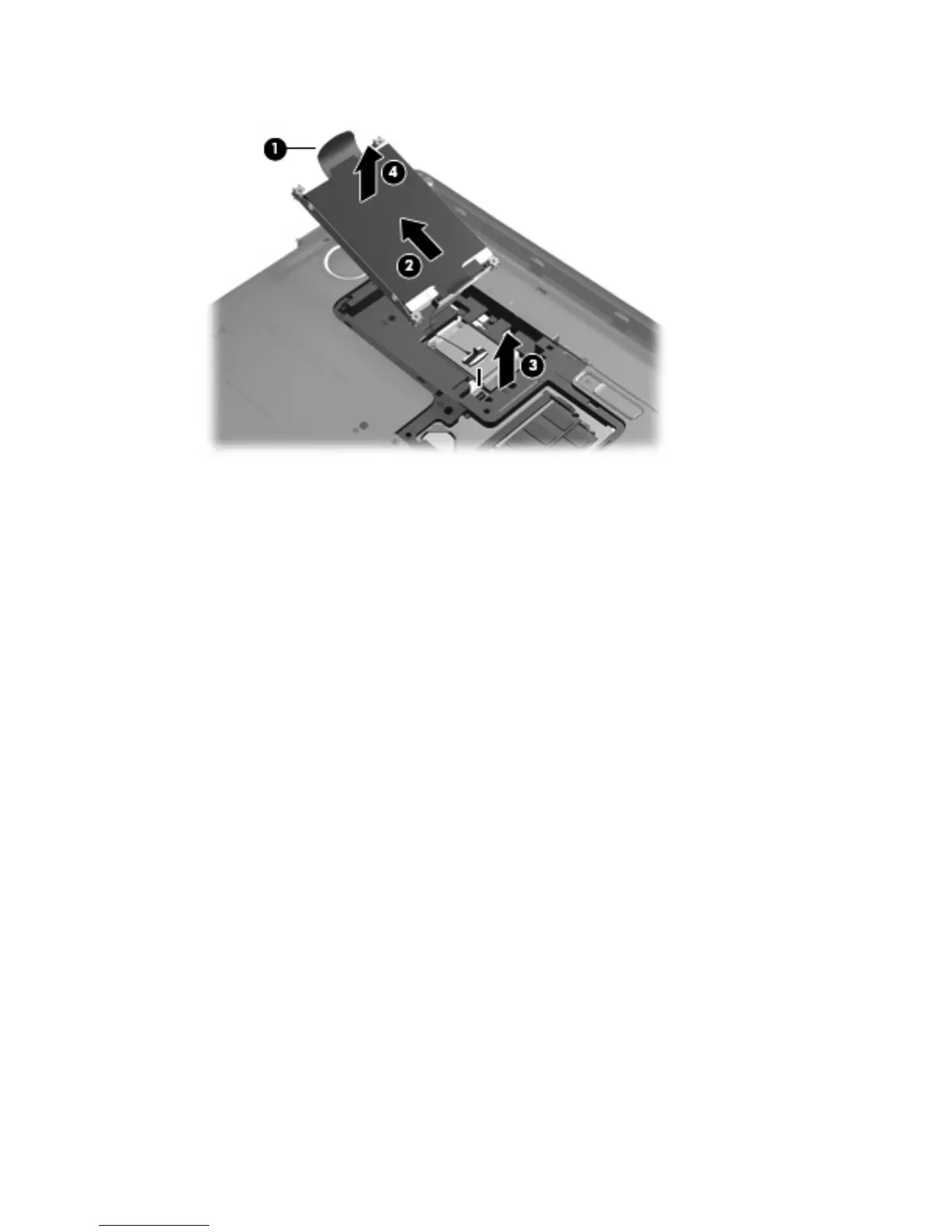

1. Slide the release latch (1) to release the service cover from the computer.
2. Lift the rear edge of the service cover (2) up and forward until it rests at an angle.
3. Remove the service cover. The service cover is available in the Plastics Kit, spare part number
665604-001.
4. Remove the Phillips PM2.5×5.0 screw that secures the optical drive to the computer.
5.
Push on the hard drive bracket (1) to release the optical drive.
Component replacement procedures
49
