Speaker assembly
Table 6-2 Speaker description and part number
Description Spare part number
Speaker assembly L45092-001
Before removing the speaker assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Place the computer in Battery Safe mode (Battery Safe mode on page 32).
3. Remove the bottom cover (Bottom cover on page 33).
4. Remove the battery (Battery on page 41).

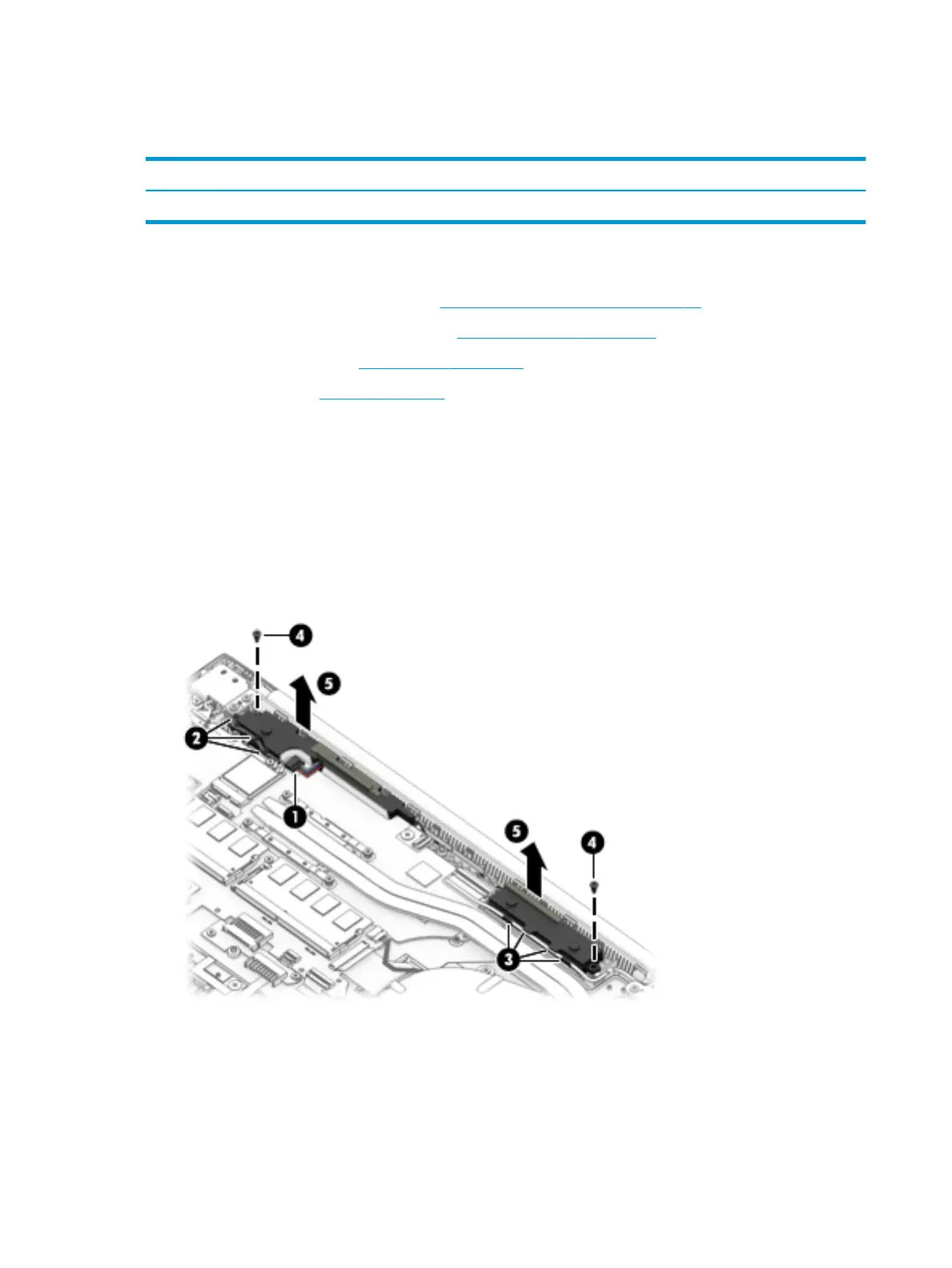

Remove the speaker assembly:
1. Disconnect the speaker cable from the system board (1).
2. Remove the antenna cables from the routing channel in the right speaker (2).
3. Remove the display cable from the routing channel near the left speaker (3).
4. Remove the two Phillips M2.0 × 5.5 screws (4) that secure the speakers to the computer.
5. Remove the speakers from the computer (5).
Reverse this procedure to install the speaker assembly.
42 Chapter 6 Removal and replacement procedures for authorized service provider parts
