Fingerprint sensor assembly
Table 6-8 Fingerprint sensor assembly, cable, bracket, and insert descriptions and part numbers
Description Spare part number
Fingerprint sensor assembly L45096-001
Fingerprint sensor bracket (included in Bracket Kit) L45097-001
Fingerprint sensor cable (included in the Cable Kit) L52208-001
Fingerprint sensor insert (included in Plastics Kit; for use in models without a ngerprint sensor) LL45095-001
Before removing the ngerprint sensor assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Place the computer in Battery Safe mode (Battery Safe mode on page 32).
3. Remove the following components:
a. Bottom cover (Bottom cover on page 33).
b. Battery (Battery on page 41).
c. Hard drive (Hard drive on page 38)

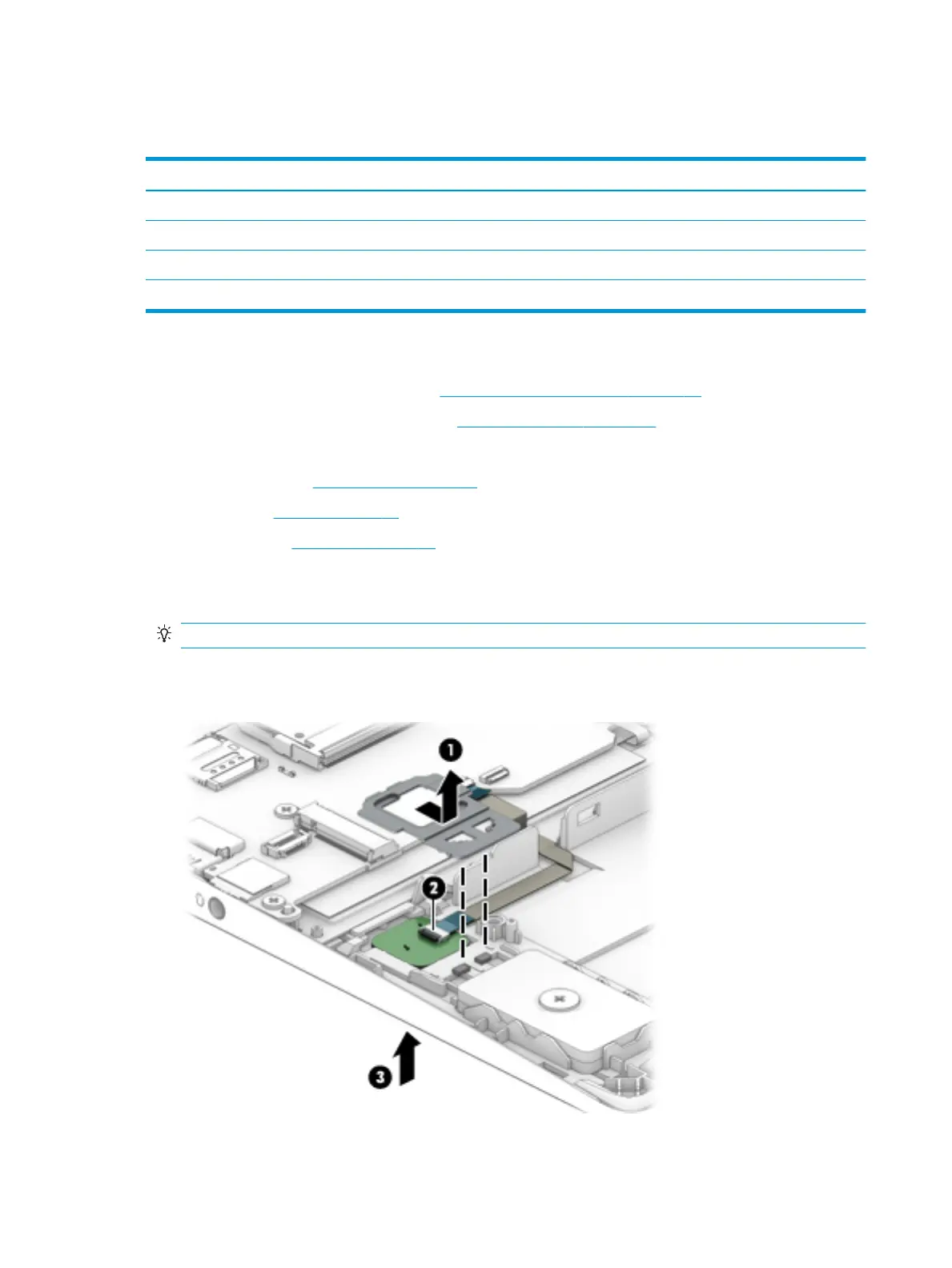

Remove the ngerprint sensor assembly:
1. Slide the bracket toward the inside of the computer, and then lift it o the ngerprint sensor board (1).
TIP: A tool may be required to push and disengage the bracket.
2. Disconnect the cable from the ZIF connector on the ngerprint sensor (2).
3. From the top of the computer, push the ngerprint sensor up to disengage and remove it (3).
Reverse this procedure to install the ngerprint sensor assembly.
50 Chapter 6 Removal and replacement procedures for authorized service provider parts
