Touchpad assembly
Table 6-7 Touchpad assembly and cable descriptions and part numbers
Description Spare part number
Touchpad assembly
NOTE: The touchpad cable is available in the Cable Kit as spare part number L52208-001.
L45093-001
Before removing the touchpad assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Place the computer in Battery Safe mode (Battery Safe mode on page 32).
3. Remove the bottom cover (Bottom cover on page 33).
4. Remove the battery (Battery on page 41).
Remove the touchpad assembly:

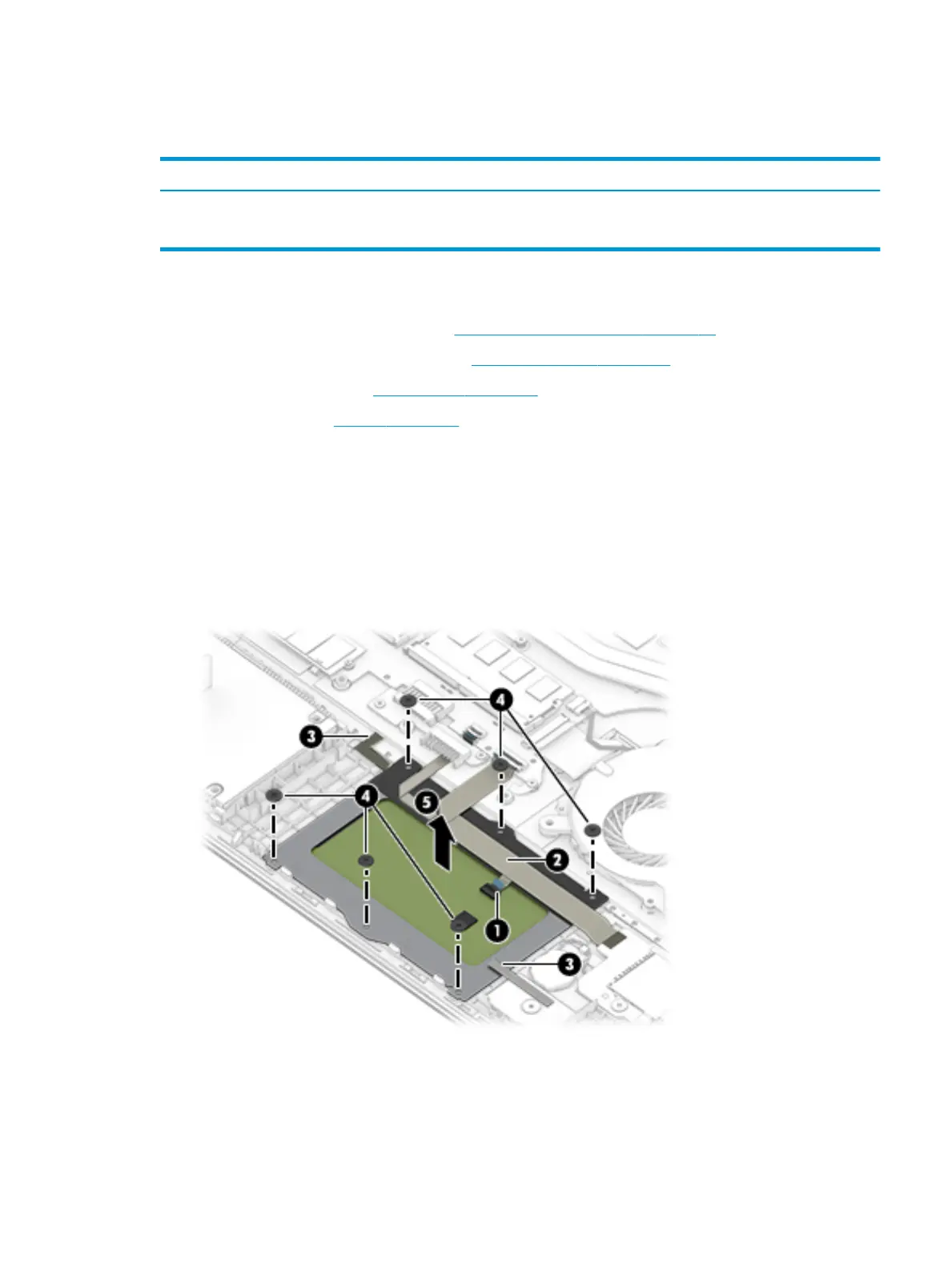

1. Disconnect the cable from the ZIF connector on the touchpad (1).
2. Lift the cable to remove it from the adhesive that secures it to the touchpad (2).
3. Lift the two pieces of silver tape from the touchpad (3).
4. Remove the six broadhead Phillips M2.0 × 2.0 screws (4) that secure the touchpad to the computer.
5. Lift the touchpad out of the computer (5).
Reverse this procedure to install the touchpad assembly.
