Heat sink
NOTE: All heat sink spare part kits include replacement thermal material.
Table 6-4 Heat sink description and part number
Description Spare part number
Heat sink L45098-001
Before removing the heat sink, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Place the computer in Battery Safe mode (Battery Safe mode on page 32).
3. Remove the bottom cover (Bottom cover on page 33).
4. Remove the battery (Battery on page 41).
Remove the heat sink:

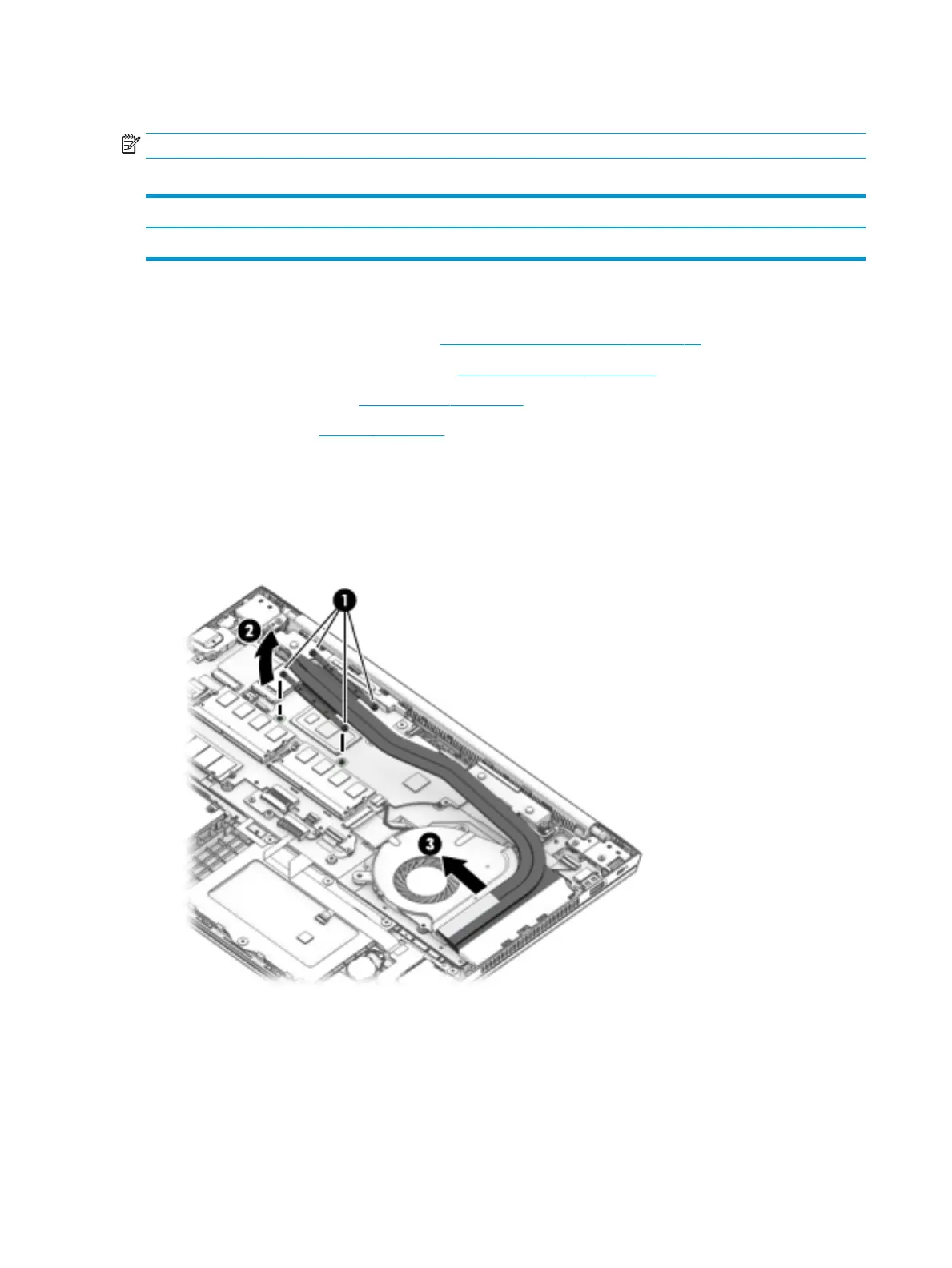

1. In the order indicated on the heat sink, loosen the four captive Phillips screws (1) that secure the heat
sink to the system board.
2. Lift the heat sink from the system board (2), and then pull the heat sink away from the side of the
chassis to remove it (3).
44 Chapter 6 Removal and replacement procedures for authorized service provider parts
