Display assembly
Before disassembling the display assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Place the computer in Battery Safe mode (Battery Safe mode on page 32).
3. Remove the bottom cover (Bottom cover on page 33).
4. Remove the battery (Battery on page 41).
Disassemble the display assembly:
TIP: You can remove the bezel, display panel, and camera with or without removing the display assembly
from the computer. Steps 1 - 9 show how to remove these components with the display assembly attached to
the computer. Removing the remaining subcomponents requires that you remove the display assembly from
the computer.

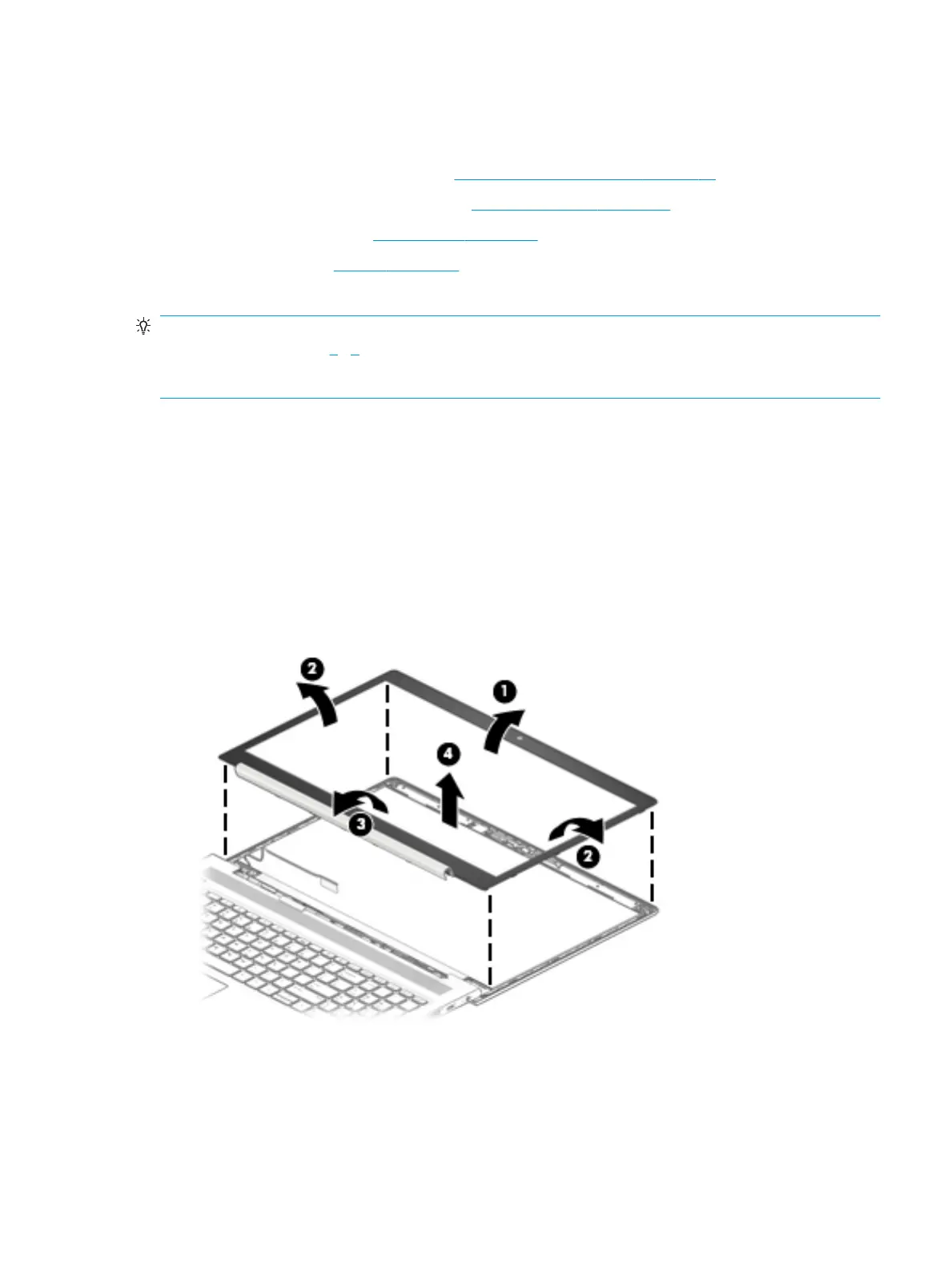

1. Flex the top (1) of the bezel, the inside edges of the left and right sides (2), and the bottom (3) of the
bezel until it disengages from the display enclosure.
2. Remove the display bezel (4).
Bezels are available using the following spare part numbers:
L45114-001: Models with an HD camera
L45115-001: Models with an HD+IR camera
L45116-001: Models without a camera
3. If it is necessary to remove or replace the display panel, use a tweezer to grasp the end of the two pieces
of tape that secure the bezel to the display enclosure (1). The tape is positioned under the left and right
sides of the display panel.
4. Working up the side of the display panel, pull the tape out from behind both the left and right sides of
the panel (2). You must pull the tape multiple times before it is completely removed.
Component replacement procedures 57
