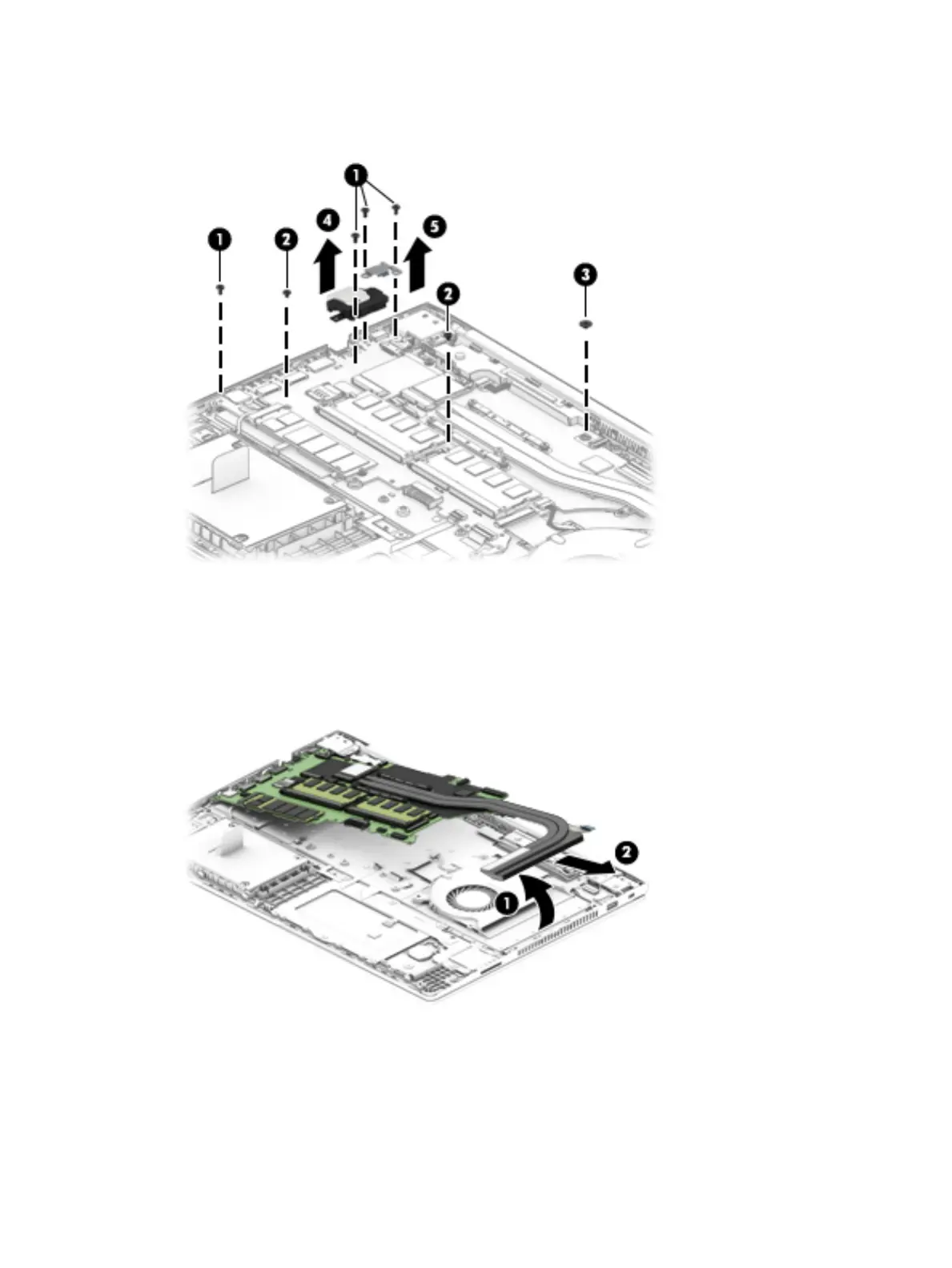

6. Remove the bracket from the USB-Type C port (5).
The USB bracket and RJ-45 cover are available in the Bracket Kit as spare part number L45097-001.
7. Rotate the right side of the system board upward (1).
8. Pull the system board away from the connectors on the side of the chassis to remove it from the
computer (2).
Reverse this procedure to install the system board.
