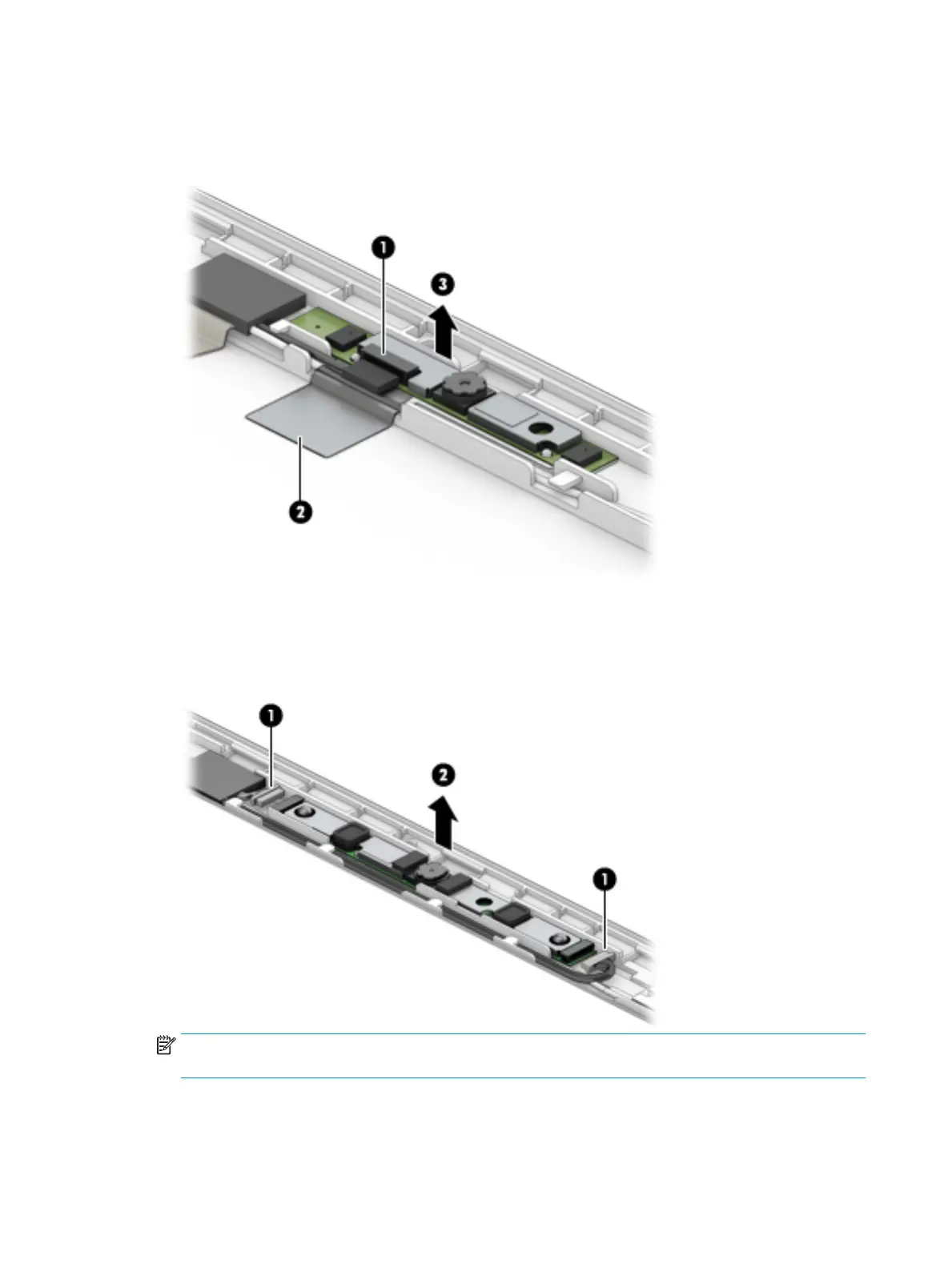

8. If it is necessary to remove or replace the HD camera, disconnect the cable from the camera (1), and
then peel the silver tape up (2) and remove the module from the enclosure (3).
The HD camera is available as spare part number L45118-001.
9. If it is necessary to remove or replace the IR camera, disconnect the cable from both sides of the camera
(1), and then peel the camera module up to remove it from the adhesive that secures it to the enclosure
(2) .
The HD+IR camera is available as spare part number L45119-001.
NOTE: You must remove the display assembly from the computer to remove the remaining display
subcomponents.
10. If it is necessary to remove the display assembly from the computer:
60 Chapter 6 Removal and replacement procedures for authorized service provider parts
