HP ProBook 455R G6 User Manual

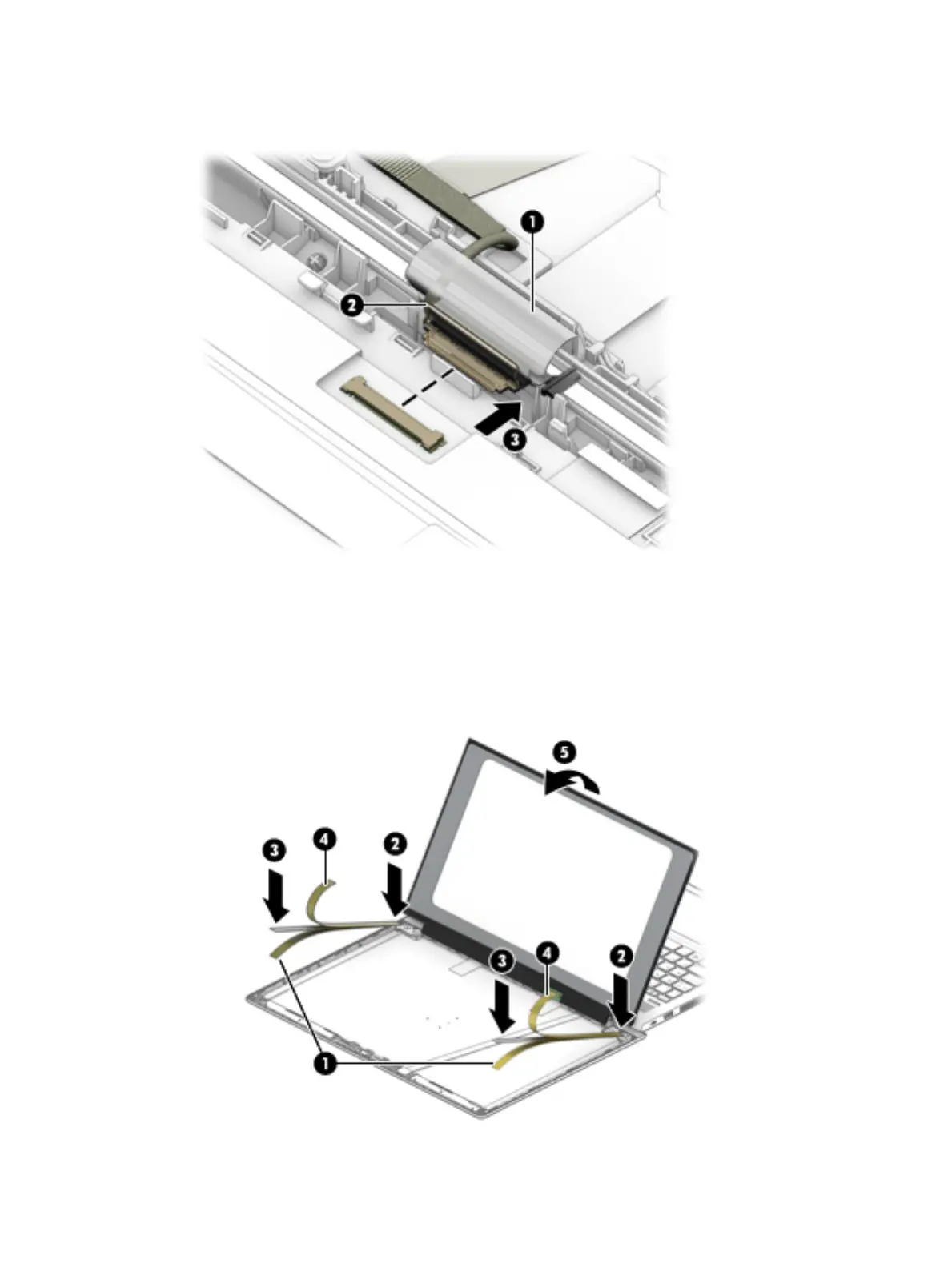

6. Lift the tape from atop the connector on the display panel (1), lift the locking latch (2), and then
disconnect the cable from the panel (3).
7. Use the following steps to install a display panel:
a. Remove the backing from the bottom of the new tape to install in the display enclosure (1).
b. Install the tape onto the left and right sides of the enclosure from the bottom (2) to the top (3).
c. Remove the backing from the top of the installed tape (4).
d. Rotate the panel into place in the display enclosure (5).
Component replacement procedures 59

HP ProBook 455R G6 Specifications

General

Operating System	Windows 10 Pro
Processor	AMD Ryzen 5 3500U
Graphics	AMD Radeon Vega Graphics
Display	15.6-inch, 1920 x 1080 pixels
RAM	Up to 32GB DDR4
Storage	256GB SSD
Weight	2.0 kg
Battery	3-cell, 45 Wh Li-ion
Ports	1 x USB-C, 1 x HDMI, 1 x headphone/microphone combo
Wireless	Bluetooth 4.2
