HP ProCurve 5400zl

2-21
Installing the 5400zl Switches
Installation Procedures
Installing the 5400zl
Switches
Power Supply Shelf LEDs

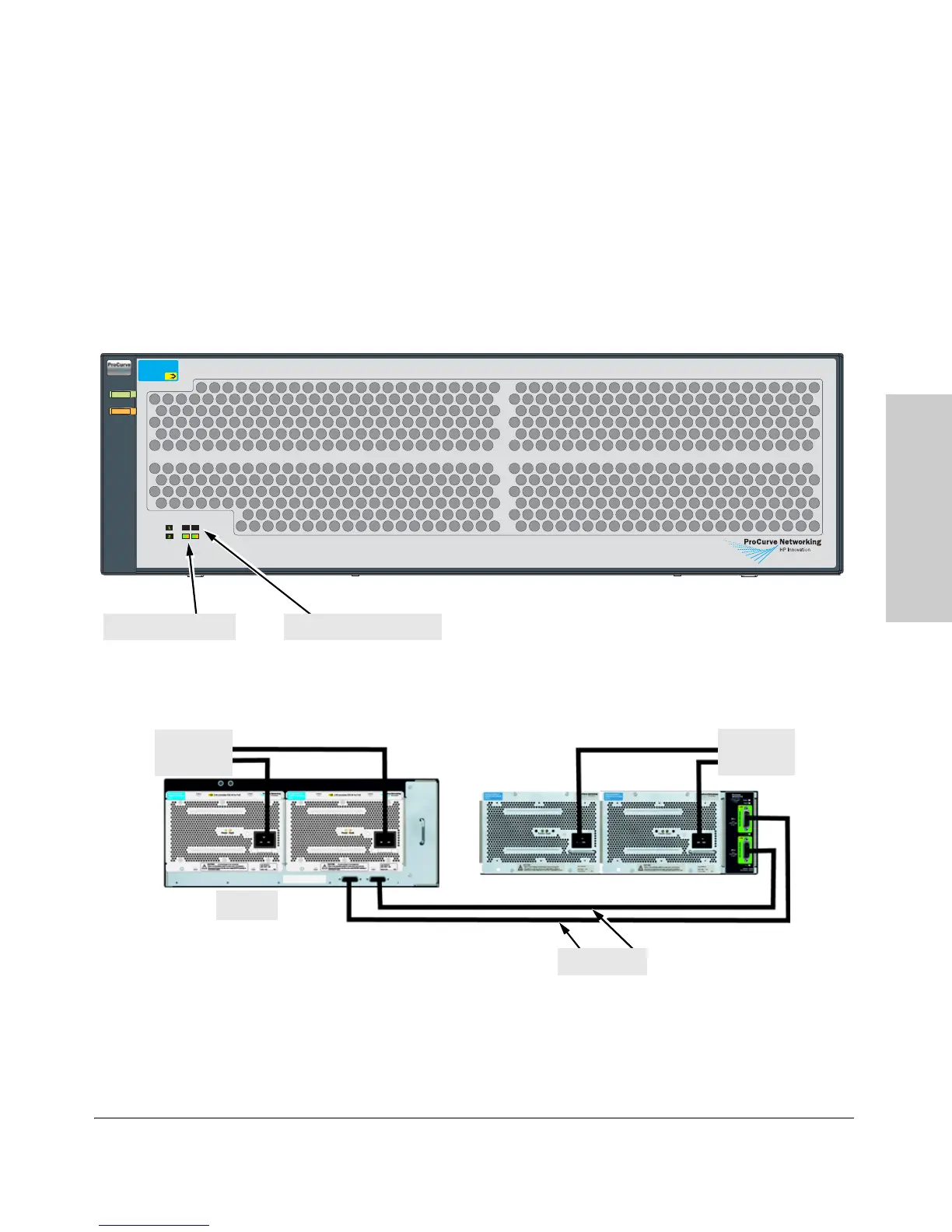

The EPS LEDs are duplicated on the front and back of the device. The
following graphic shows an example of the front of the EPS. There are two
dual colored (green/orange) LEDs for each EPS port:
■ Device Connected
■ Power Status
Connecting the Power Supply Shelf
Figure 2-11. Connecting the EPS to one 5406zl switch
Power
Supply
Status
EPS Port
Status
E1 E2
ProCurve Switch zl
Power Supply Shelf
J8714A
Power
Fault
Device Connected
Power Status
PoE
Fault
Power
Device Connected LEDsPower Status LEDs
To Powe r
Source
EPS Cables
To P o wer
Source
5406zl
