Enhancements
Release M.10.33 Enhancements

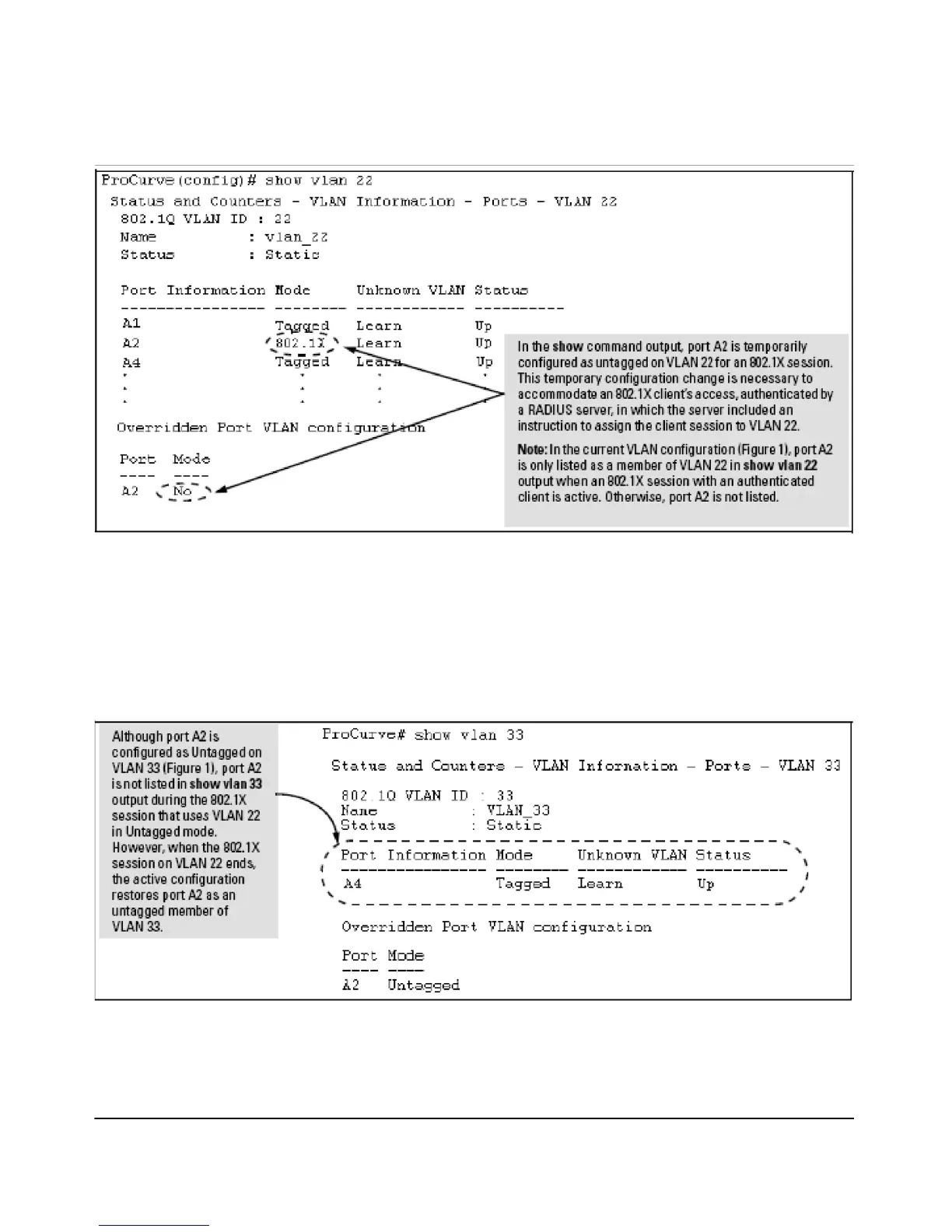

Figure 10. Active Configuration for VLAN 33 Temporarily Drops Port 22 for the 802.1X Session
When the 802.1X client session on port A2 ends, the port removes the temporary untagged VLAN
membership. The static VLAN (VLAN 33) that is “permanently” configured as untagged on the
port becomes available again. Therefore, when the RADIUS-authenticated 802.1X session on
port A2 ends, VLAN 22 access on port A2 also ends, and the untagged VLAN 33 access on port
A2 is restored as shown in Figure Figure 11.
Figure 11. The Active Configuration for VLAN 33 Restores Port A2 After the 802.1X Session Ends
