HP ProDesk 400 G5 Desktop Mini User Manual

Hood sensor
The hood sensor is located near the front of the computer.
1. Prepare the computer for disassembly (Preparation for disassembly on page 15).
2. Remove the access panel (Access panel on page 16).

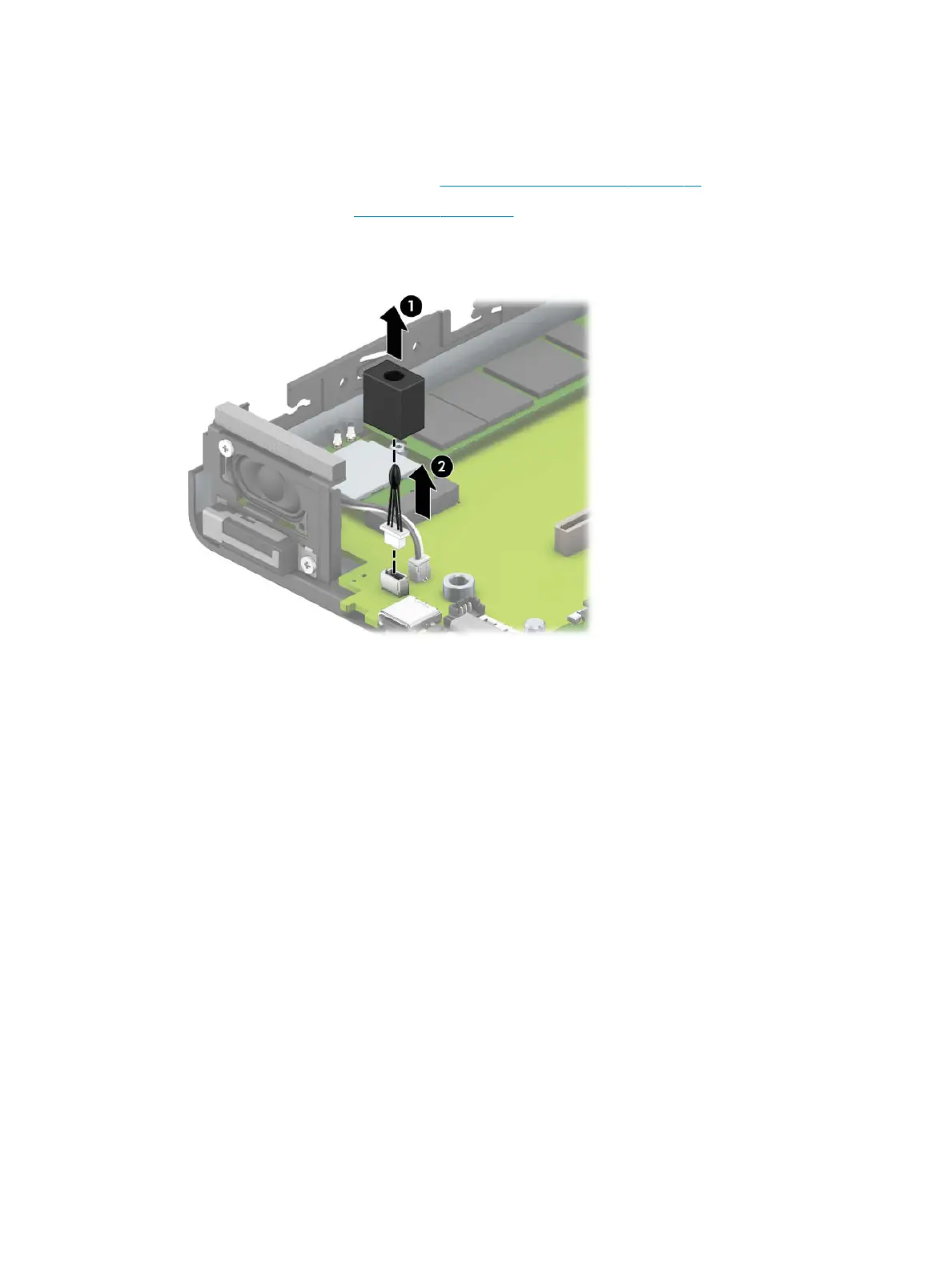

3. Lift the rubber cover from the hood sensor (1).
4. Disconnect the cable from the system board, and then lift the hood sensor out of the computer (2).
To install the hood sensor, reverse the removal procedure.
18 Chapter 4 Removal and replacement procedures

HP ProDesk 400 G5 Desktop Mini Specifications

General

Chipset	Intel Q370
Memory	Up to 32 GB DDR4-2666 SDRAM
Operating System	Windows 10 Pro
Power Supply	65 W external power adapter
Processor	Core™ i3, Core™ i5, Core™ i7 (8th Gen)
Storage	Up to 2 TB HDD
Graphics	Intel UHD Graphics 630
Form Factor	Desktop Mini
Ports (Front)	1x headphone/microphone combo; 2x USB 3.1 Gen 1
Ports (Rear)	2x USB 2.0; 2x USB 3.1 Gen 1
Dimensions	177 x 175 x 34 mm
Weight	1.26 kg
Network	Gigabit Ethernet
Wireless	Bluetooth 5.0
