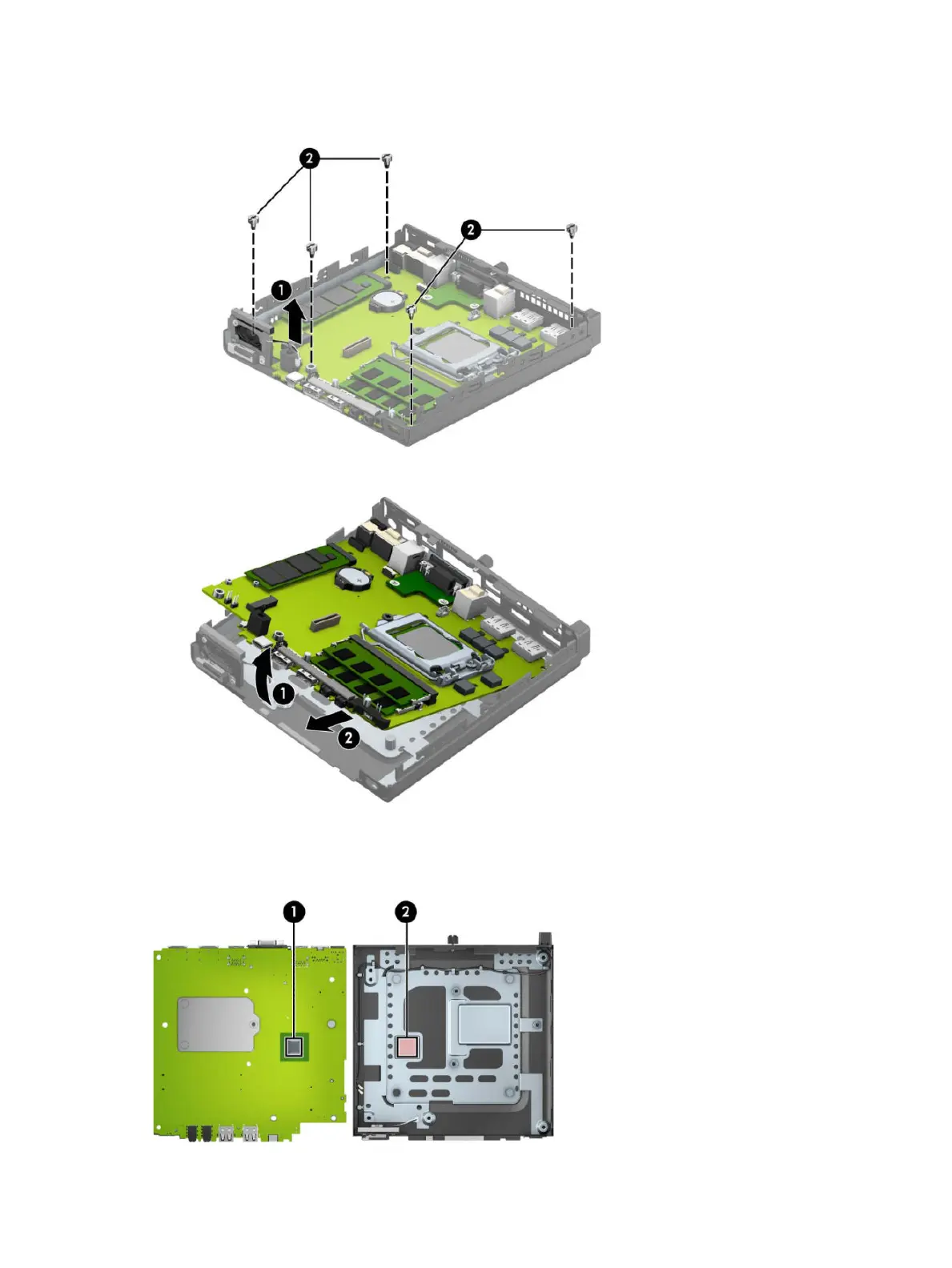

b. On models without a hard drive, disconnect the speaker cable from the system board (1), and then
remove the ve Torx T15 screws (2) that secure the system board to the computer.
8. Lift the front of the system board (1), and then pull it out of the computer (2).
To install the system board, reverse the removal procedures.
When replacing a system board be sure to install a thermal pad to service the graphics processor on the
system board (1) at the location on the chassis as shown by callout (2) in the following image.
36 Chapter 4 Removal and replacement procedures

HP ProDesk 400 G5 Desktop Mini Specifications

General

Chipset	Intel Q370
Memory	Up to 32 GB DDR4-2666 SDRAM
Operating System	Windows 10 Pro
Power Supply	65 W external power adapter
Processor	Core™ i3, Core™ i5, Core™ i7 (8th Gen)
Storage	Up to 2 TB HDD
Graphics	Intel UHD Graphics 630
Form Factor	Desktop Mini
Ports (Front)	1x headphone/microphone combo; 2x USB 3.1 Gen 1
Ports (Rear)	2x USB 2.0; 2x USB 3.1 Gen 1
Dimensions	177 x 175 x 34 mm
Weight	1.26 kg
Network	Gigabit Ethernet
Wireless	Bluetooth 5.0
