Internal drive bezel
1. Prepare the computer for disassembly (see Preparation for disassembly on page 20).
2. Remove the access panel (see Access panel on page 21).
3. Remove the front bezel (see Front bezel on page 23).

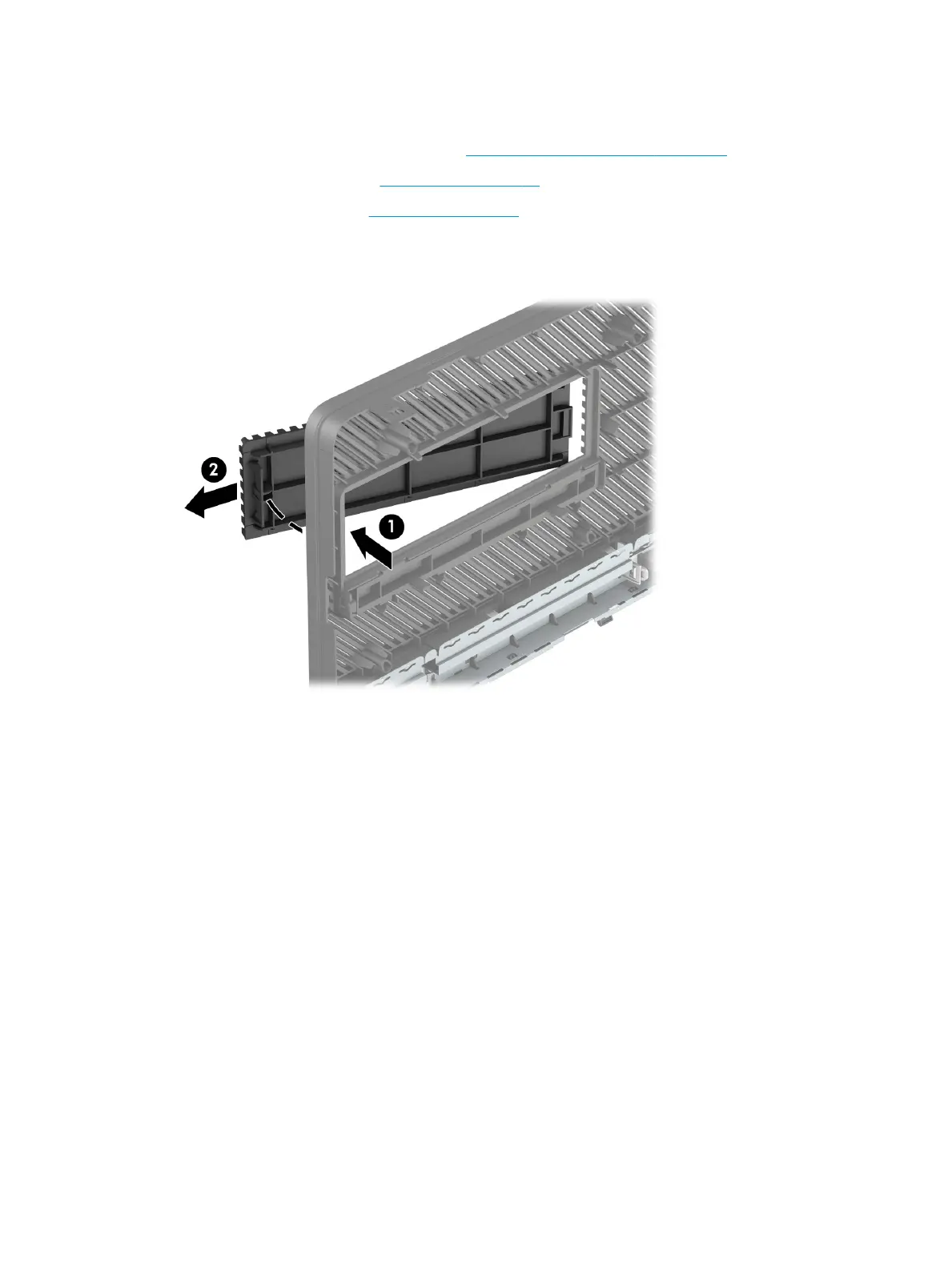

4. Release the tab (1) on the left side of the internal drive bezel that attaches to the front bezel.
5. Remove the internal drive bezel (2).
Reverse this procedure to install the internal drive bezel.
24 Chapter 4 Removal and replacement procedures
