Drive cage
1. Prepare the computer for disassembly (see Preparation for disassembly on page 20).
2. Remove the access panel (see Access panel on page 21).
3. Disconnect all cables to drives installed in the drive cage (see Hard drives on page 30 and Optical drives
on page 33).

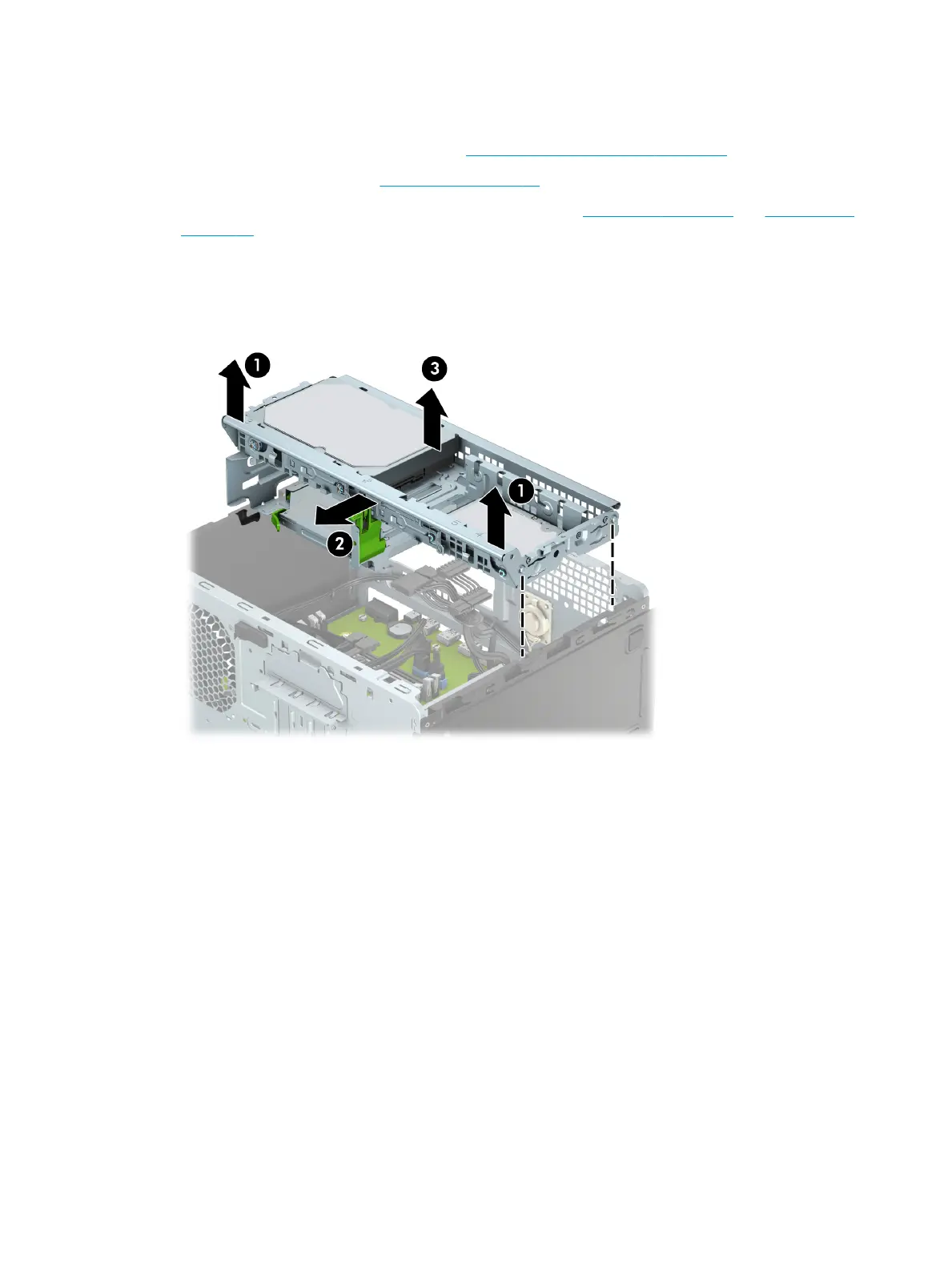

4. Lift the rear edge of the drive cage (1) to disengage the cage from the computer chassis.
5. Slide the drive cage (2) toward the rear panel.
6. Remove the drive cage (3).
Reverse this procedure to install the drive cage.
