Optical drives
Follow these steps to remove a 5.25-inch size optical drive:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 20).
2. Remove the access panel (see Access panel on page 21).

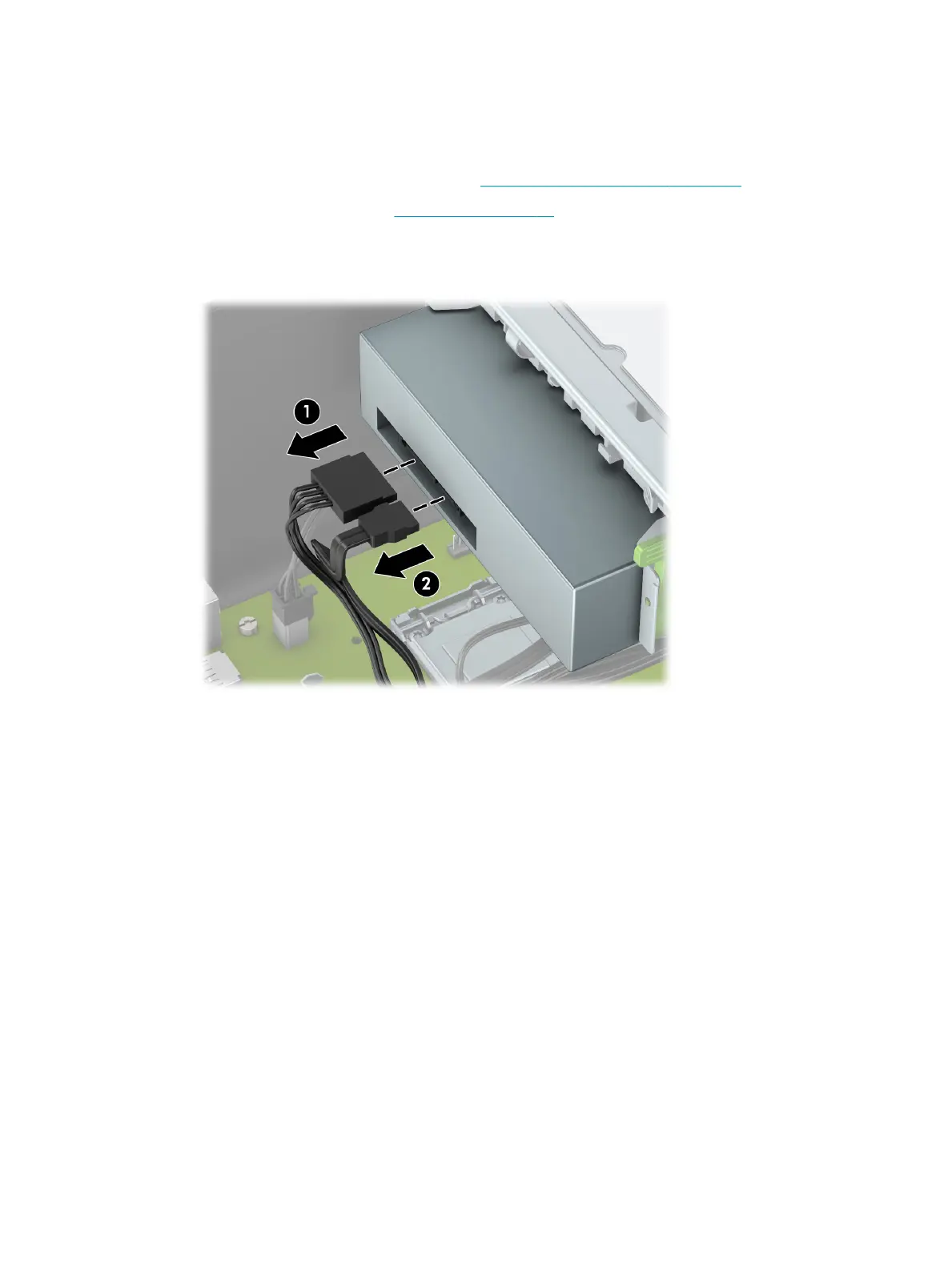

3. Disconnect the optical drive power cable (1) from the optical drive.
4. Disconnect the optical drive data cable (2) from the optical drive.
5. Press and hold the optical drive release latch (1) that secures the optical drive to the drive cage.
Optical drives 33
