Memory module
The computer has three memory module sockets.
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain
before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to
the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing
memory modules while voltage is present may cause irreparable damage to the memory modules or
system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important
to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation resulting from
having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before beginning
these procedures, ensure that you are discharged of static electricity by
briey touching a grounded
metal object.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
To remove, replace, or add a memory module:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 20).
2. Remove the access panel (see Access panel on page 21).
3. Remove the drive cage (see Drive cage on page 36).

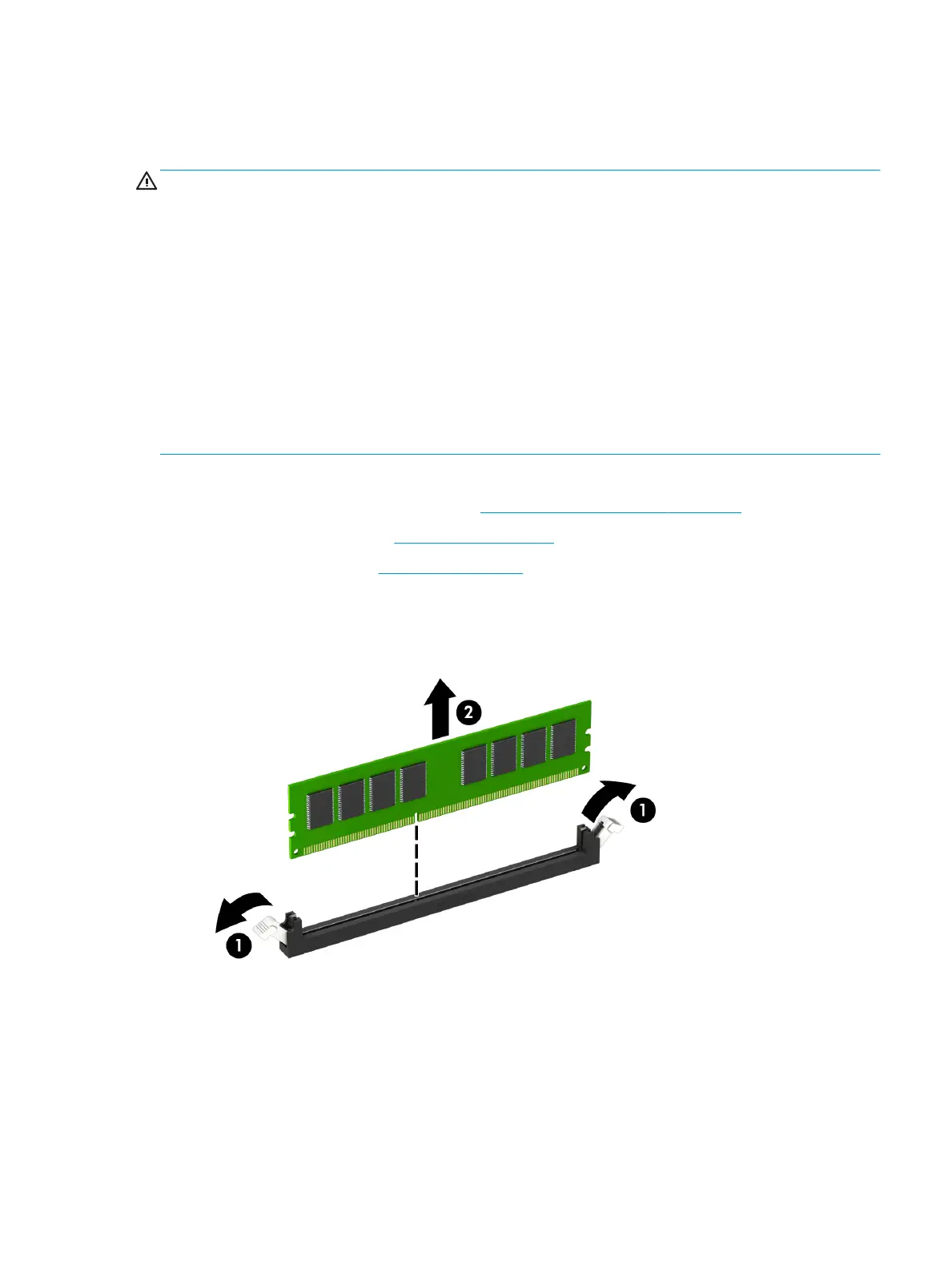

4. Open both latches (1) of the memory module socket.
5. Remove the memory module (2) from the socket.
Reverse this procedure to install a memory module. Recongure the computer, if necessary.
Memory module 37
