Hard drives
Follow these steps to remove a 2.5-inch hard drive:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 20).
2. Remove the access panel (see Access panel on page 21).
3. Disconnect the hard drive power cable (1) from the 2.5-inch hard drive.
4. Disconnect the hard drive data cable (2) from the 2.5-inch hard drive.

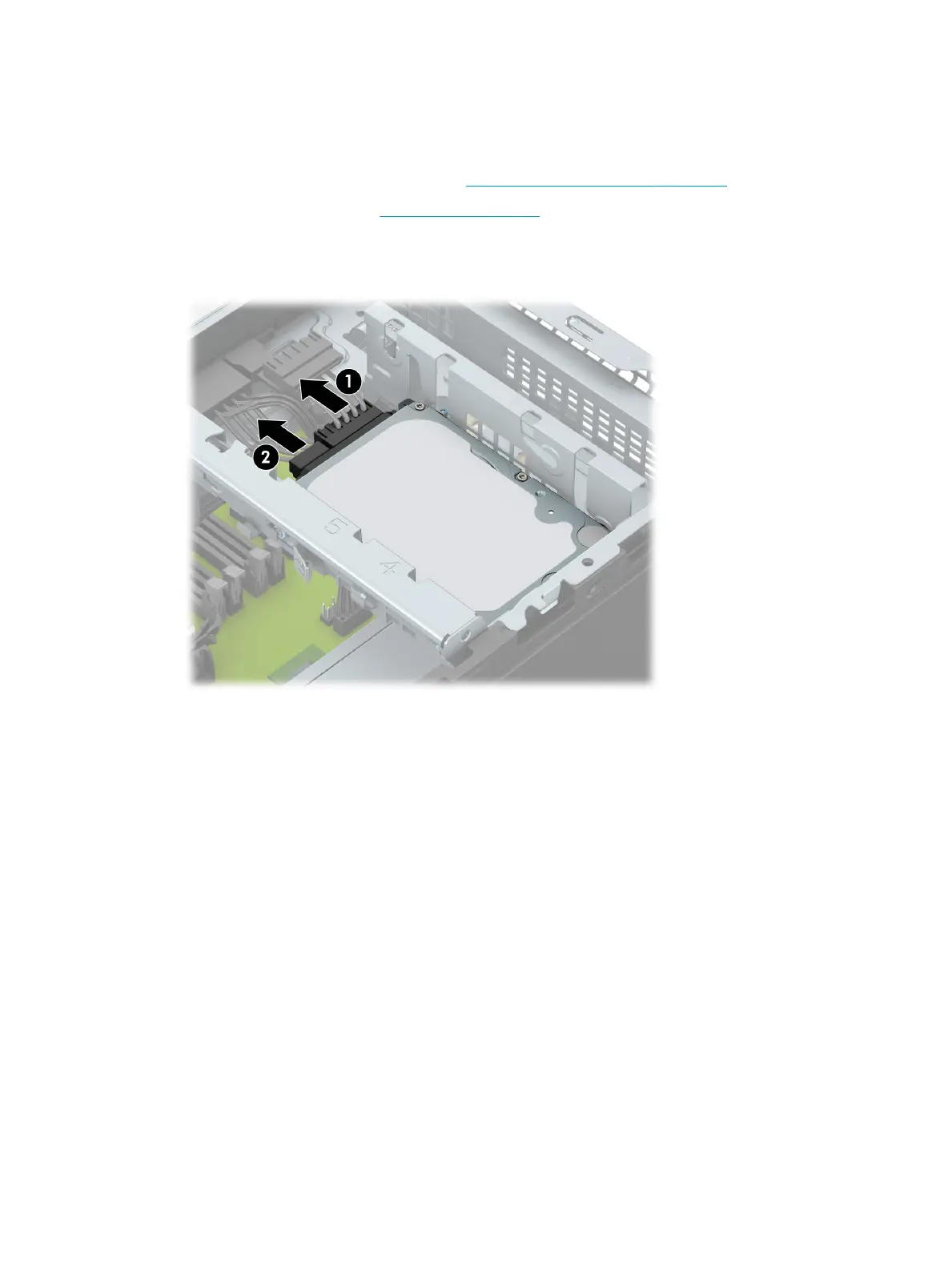

5. Release the retention clip (1) that secures the 2.5-inch hard drive to the drive cage.
6. Lift the left side of the 2.5-inch hard drive (2) until it releases from the slots in the drive cage.
30 Chapter 4 Removal and replacement procedures
