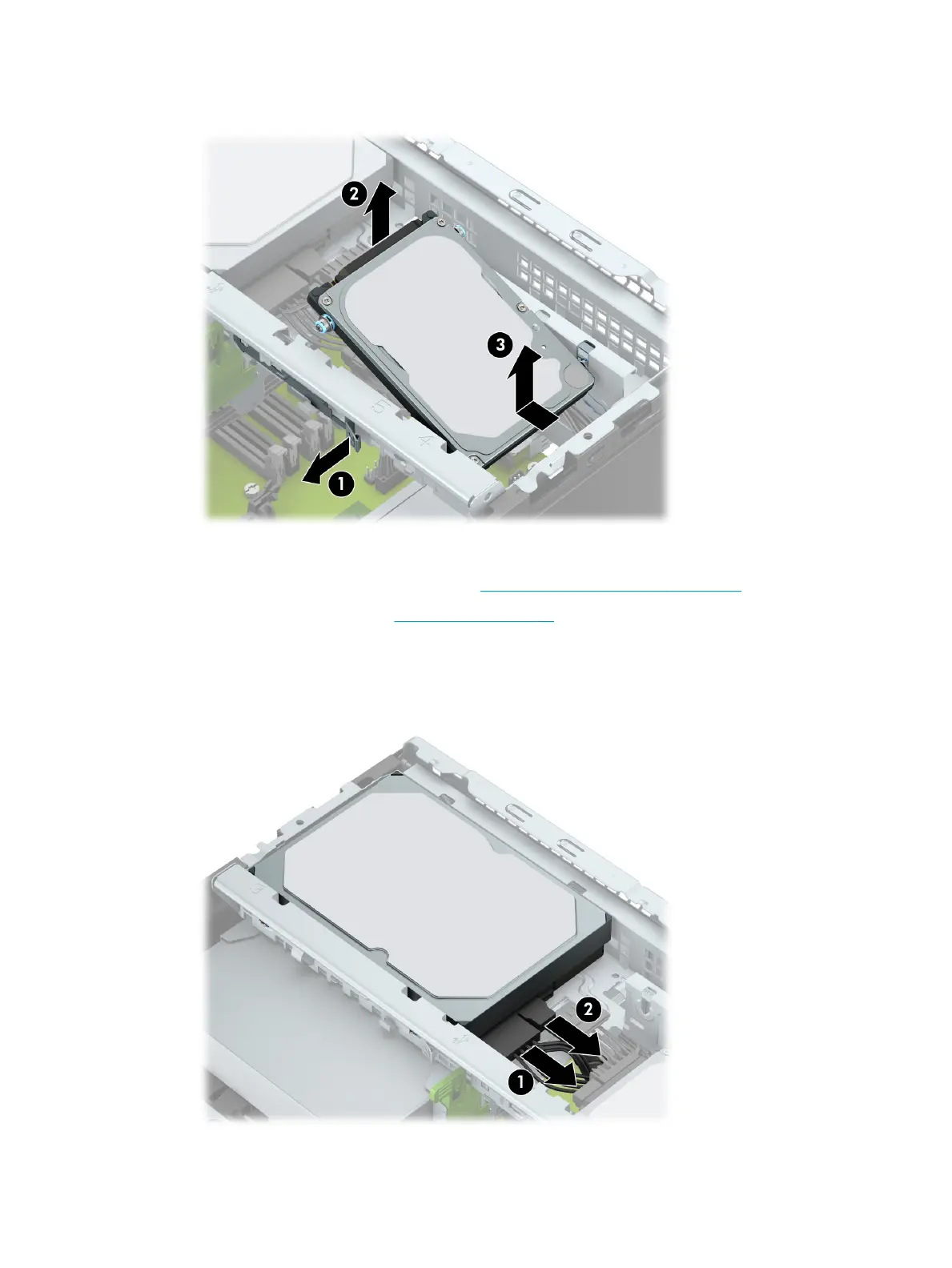

7. Slide the 2.5-inch hard drive to the left as far as it will go, and then remove the 2.5-inch hard drive (3).
Follow these steps to remove a 3.5-inch hard drive:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 20).
2. Remove the access panel (see Access panel on page 21).
3. Position the computer with the rear panel toward you.
4. Disconnect the hard drive power cable (1) from the 3.5-inch hard drive.
5. Disconnect the hard drive data cable (2) from the 3.5-inch hard drive.
Hard drives 31
