Speaker
Follow these steps to remove the speaker:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 20).
2. Remove the access panel (see Access panel on page 21).
3. Position the computer with the front panel toward you.

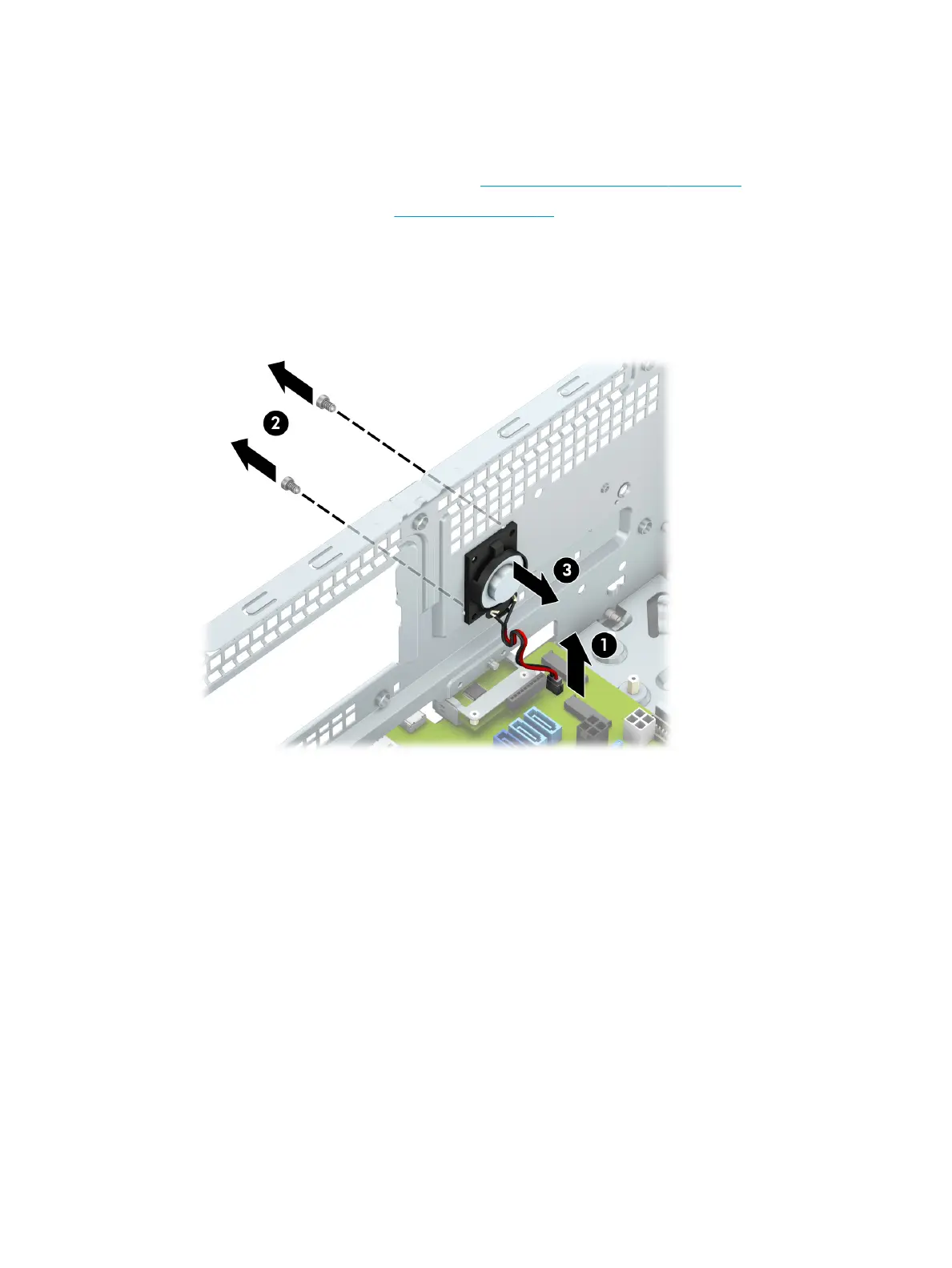

4. Disconnect the speaker cable (1) from the system board.
5. Remove the two Torx-15 M3.5×8.5 screws (2) that secure the speaker to the computer chassis.
6. Remove the speaker (3).
Reverse this procedure to install the speaker.
Speaker 25
