HP ProLiant DL160 Gen9 - System Board Components

Component identification 12

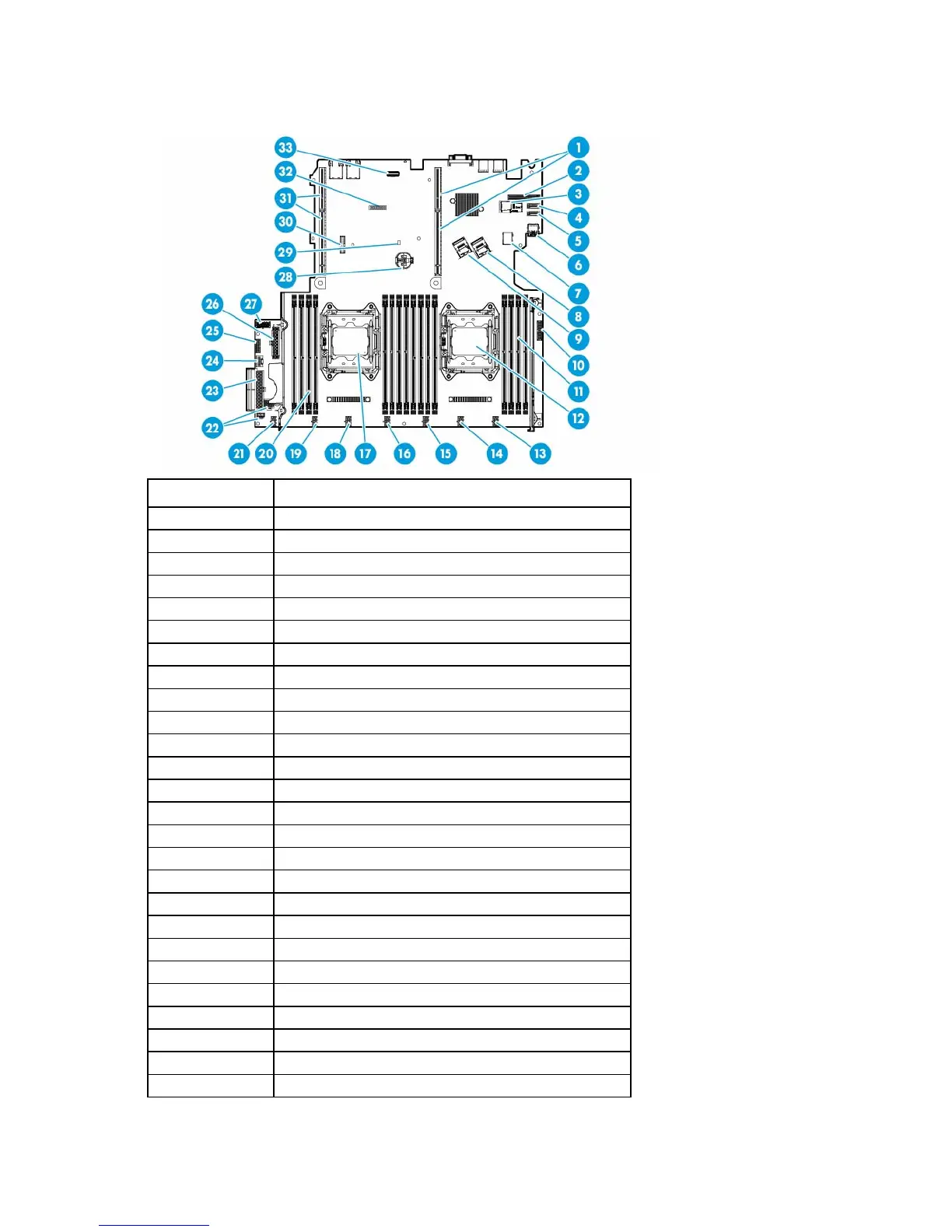

System board components
Item Description
1
Primary PCIe riser board connectors*
2
Dedicated iLO module connector
3
microSD slot
4
SATA 5 connector (for M.2 SSD 2)
5
SATA 4 connector (for M.2 SSD 1 or optical drive)
6
Internal USB 3.0 connector (for USB flash devices)
7
8SFF front USB 3.0 connector
8
Mini-SAS connector 1
9
Mini-SAS connector 2
10
Front I/O connector
11
DIMM slots for processor 1
12
Processor 1
13
Fan connector 7
14
Fan connector 6
15
Fan connector 5
16
Fan connector 4
17
Processor 2
18
Fan connector 3
19
Fan connector 2
20
DIMM slots for processor 2
21
Fan connector 1
22
Reserved
23
24-pin power supply connector
24
HP Smart Storage Battery connector
25
Power supply sideband signal connector
26
20-pin drive power connector
