Hardware options installation 49
7.

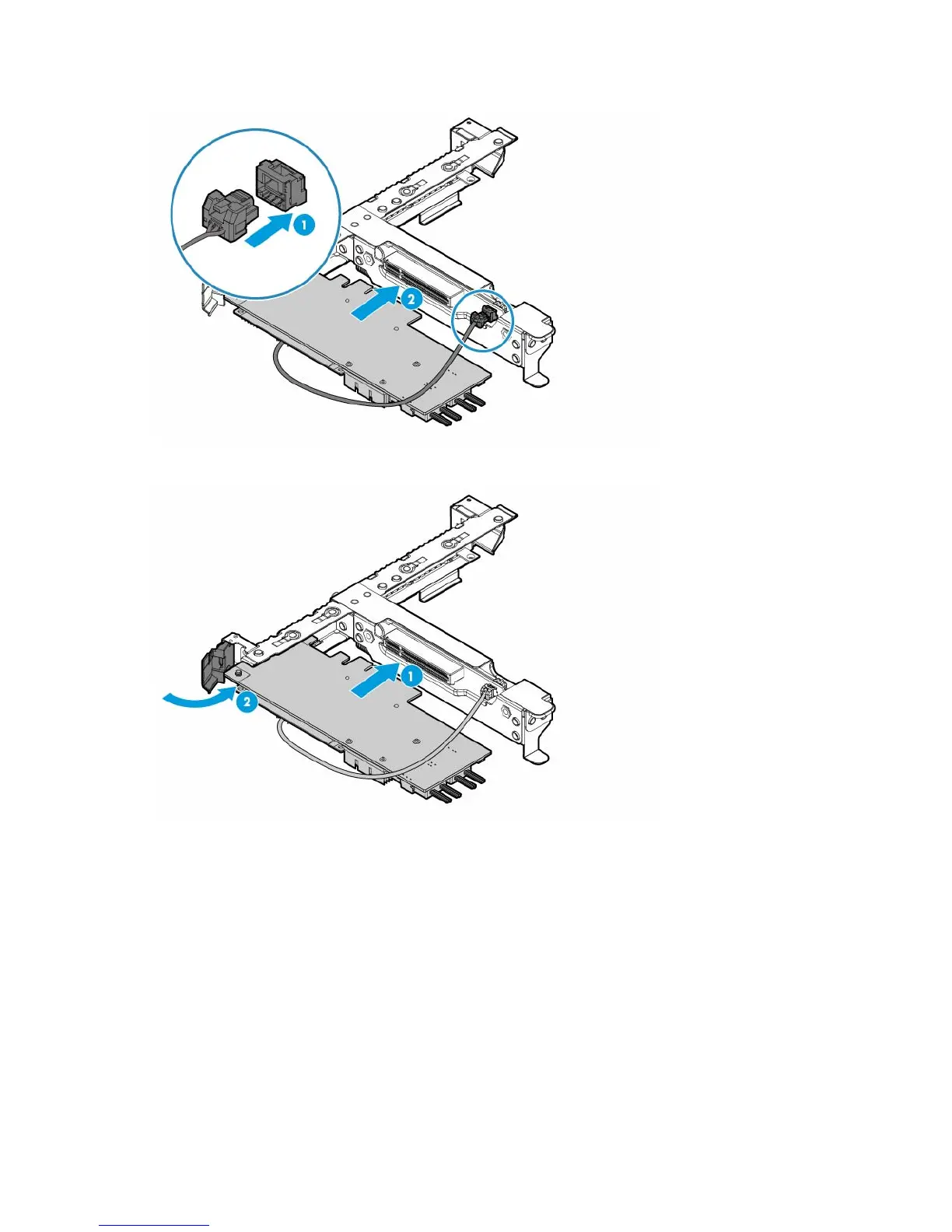

Connect the other end of the cache module cable to the PCIe riser board.
8. Install the storage controller ("Installing a storage controller" on page 45).
9. Install the HP Smart Storage Battery:
a. Disconnect the 24-pin power supply cable from the system board.
b. Align the component and press down until it clicks in place.
c. Connect the battery cable.
