Hardware options installation 80
2.
Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 17).
o Remove the server from the rack (on page 19).
4. Remove the access panel (on page 20).
5. Remove the PCI riser cage (on page 21).

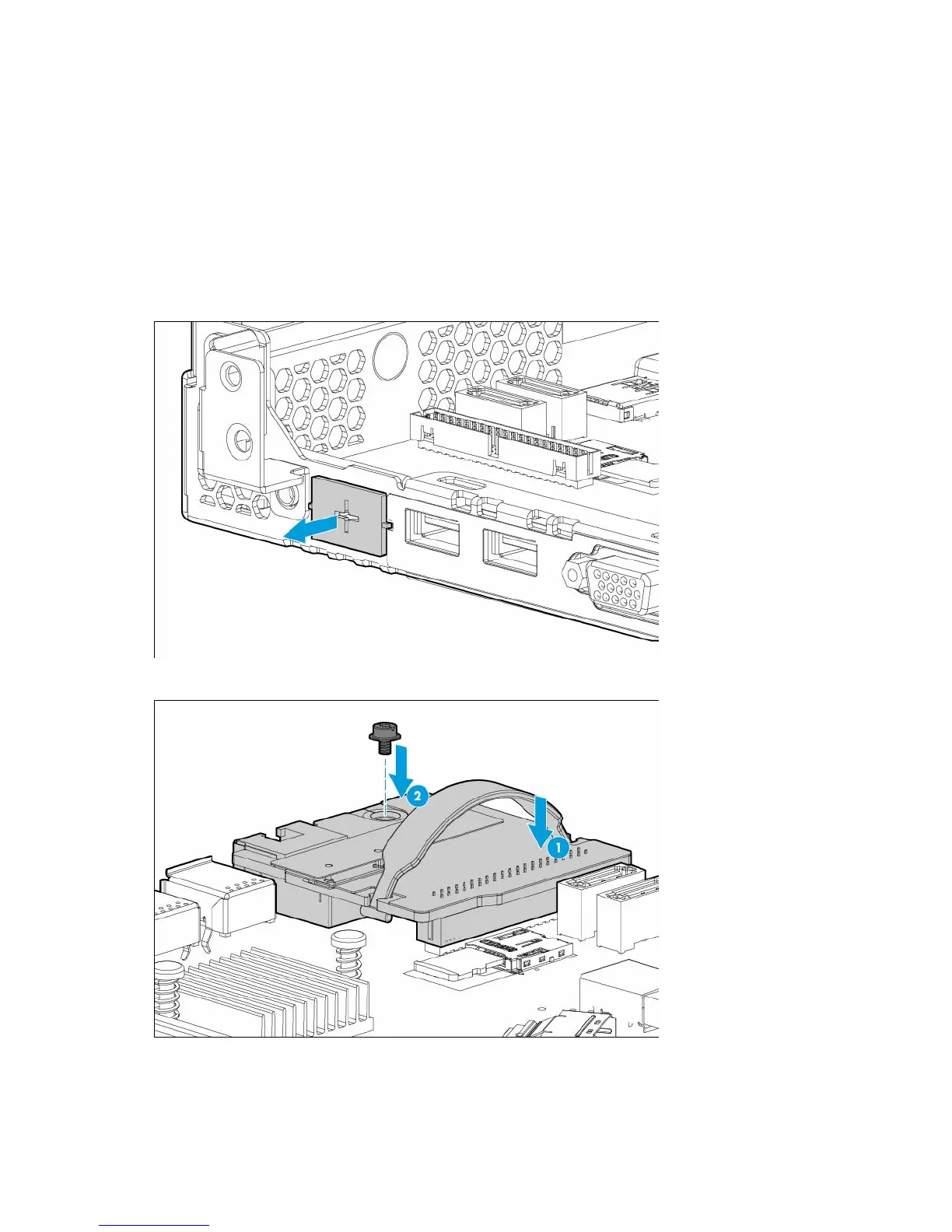

6. Using a flat screwdriver, toggle the knockout to loosen it, and then pull it out of the chassis.
7. Install the dedicated iLO management module.
8. If removed, install the PCI riser cage and the expansion board.
9. Install the access panel (on page 21).
