CAUTION: Be sure to close the processor socket retaining bracket before closing the processor
locking lever. The lever should close without resistance. Forcing the lever closed can damage the
processor and socket, requiring system board replacement.

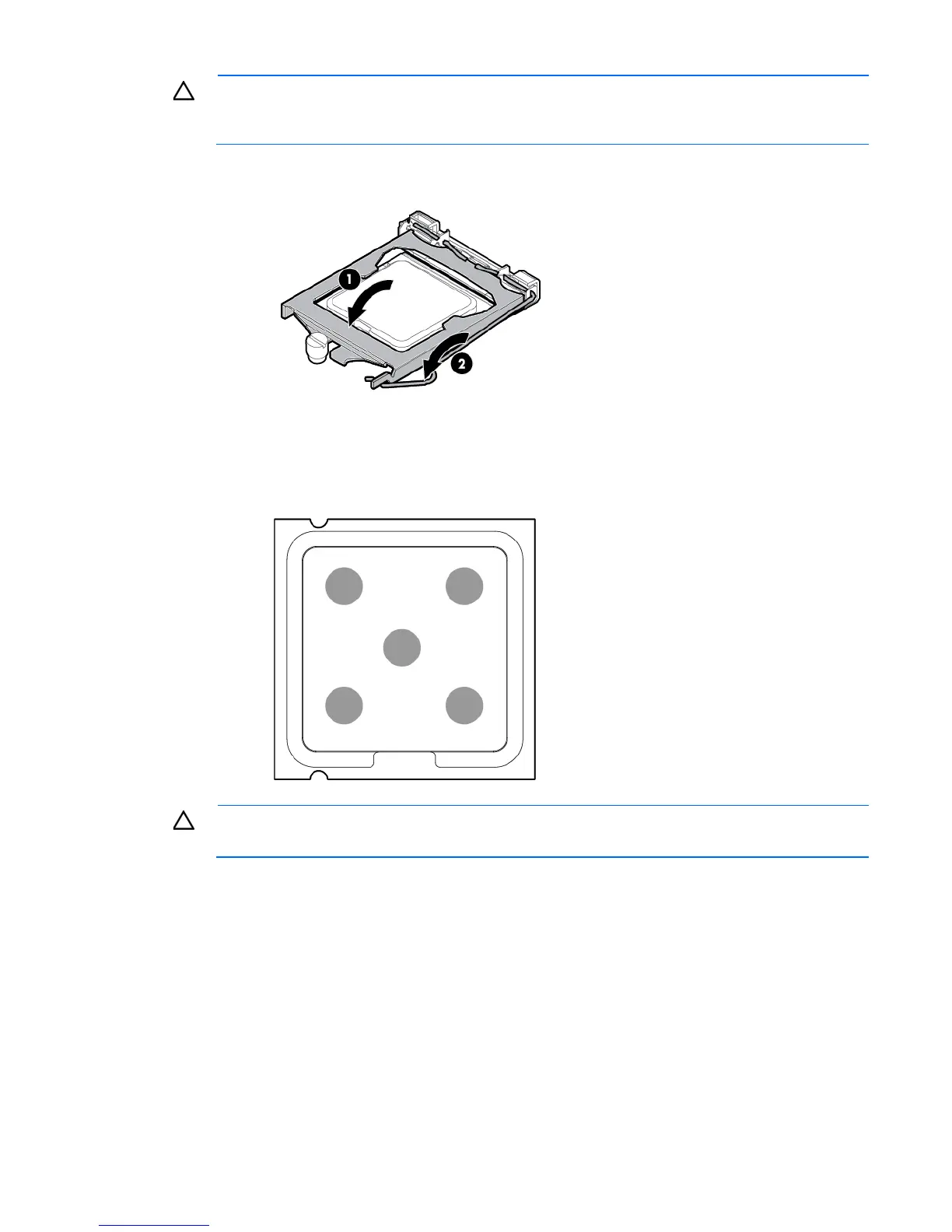

2. Close the processor retaining bracket, and then secure the processor locking lever.
3. Clean the old thermal grease from the heatsink with the alcohol swab. Allow the alcohol to evaporate
before continuing.
4. Apply all the grease to the top of the processor in the following pattern to ensure even distribution.
CAUTION: Do not overtighten the screws as this might damage the board, connectors, or screws
and voids the warranty of the board.
5. Install the heatsink:
a. Position the heatsink using the guide pin on the processor backplate.
b. Tighten one pair of diagonally opposite screws halfway, and then tighten the other pair of screws.
