Removal and replacement procedures 36
b.

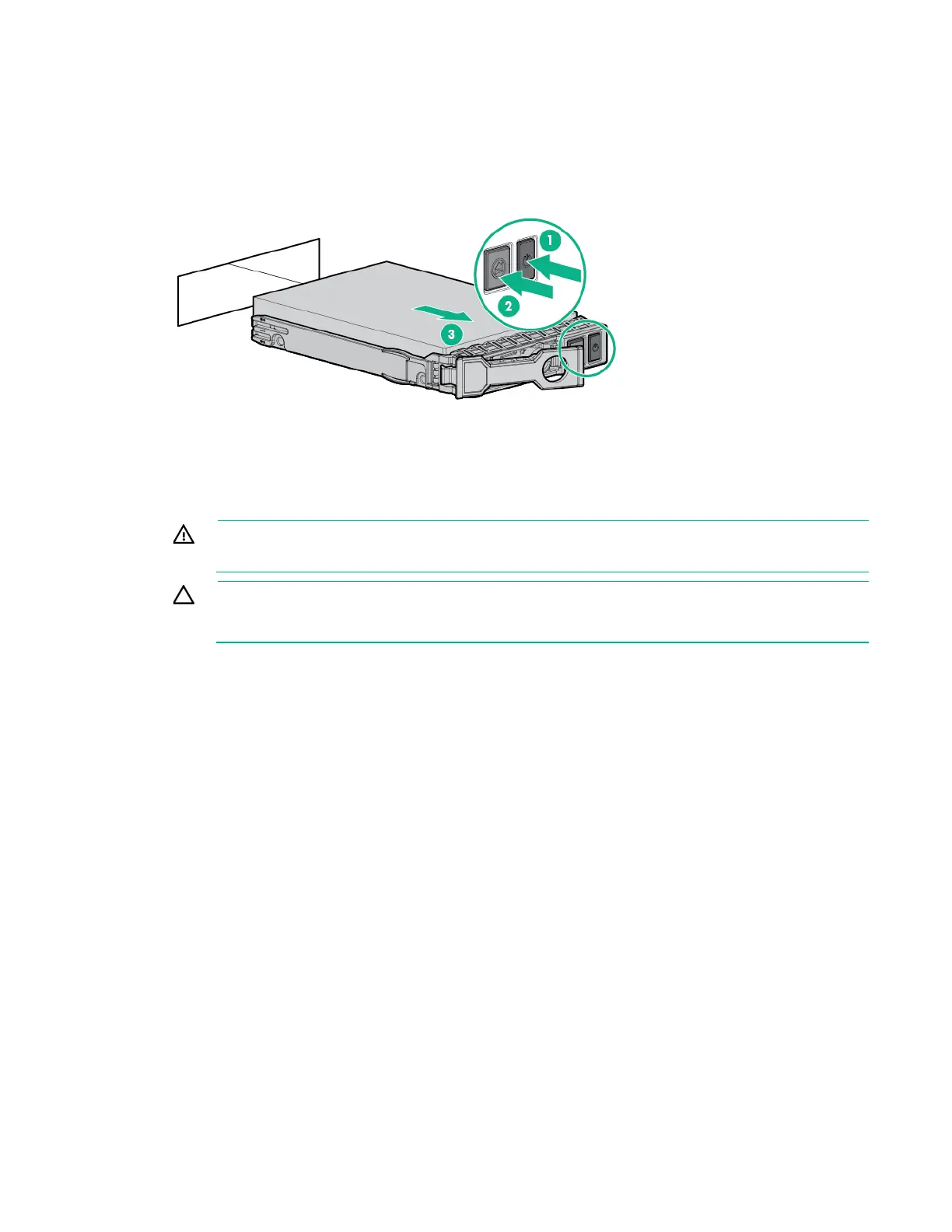

The Do Not Remove button will illuminate and flash. Do not depress the button while it is
illuminated.
c. Wait until the flashing stops and the icon on the button is no longer illuminated.
d. Depress the Do Not remove button to release the release lever.
e. Pull the release lever to disengage the drive from the backplane and slide the drive out of the
drive bay.
To replace the drive, slide the drive into the bay until it is fully seated, and then close the release lever to
lock the drive in the bay.
M.2 SSD enablement board assembly
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives, power
input modules, and the internal system components to cool before touching them.
CAUTION: To prevent damage to electrical components, take the appropriate anti-static
precautions before beginning any system installation. Improper grounding can cause
electrostatic discharge.
To remove the component:
1. Back up all server data.
2. Do one of the following:
o For tower models, open and remove the tower bezel ("Remove the tower bezel" on page 28).
o For rack models, if installed, remove the security bezel ("Remove the security bezel (optional)"
on page 28).
3. Power down the server (on page 29).
4. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
5. Do one of the following:
o For tower models, place the server on a flat, level surface with the access panel facing up.
o For rack models, extend the server from the rack (on page 29).
6. Remove the access panel.
7. Remove the air baffle (on page 31).
8. Remove the M.2 SSD enablement board assembly:
