Removal and replacement procedures 38
b.
Disconnect each power cord from the server.
4. Do one of the following:
o For tower models, place the server on a flat, level surface with the access panel facing up.
o For rack models, extend the server from the rack (on page 29).
5. Remove the access panel ("Access panel" on page 33).
6. Remove the air baffle (on page 31).

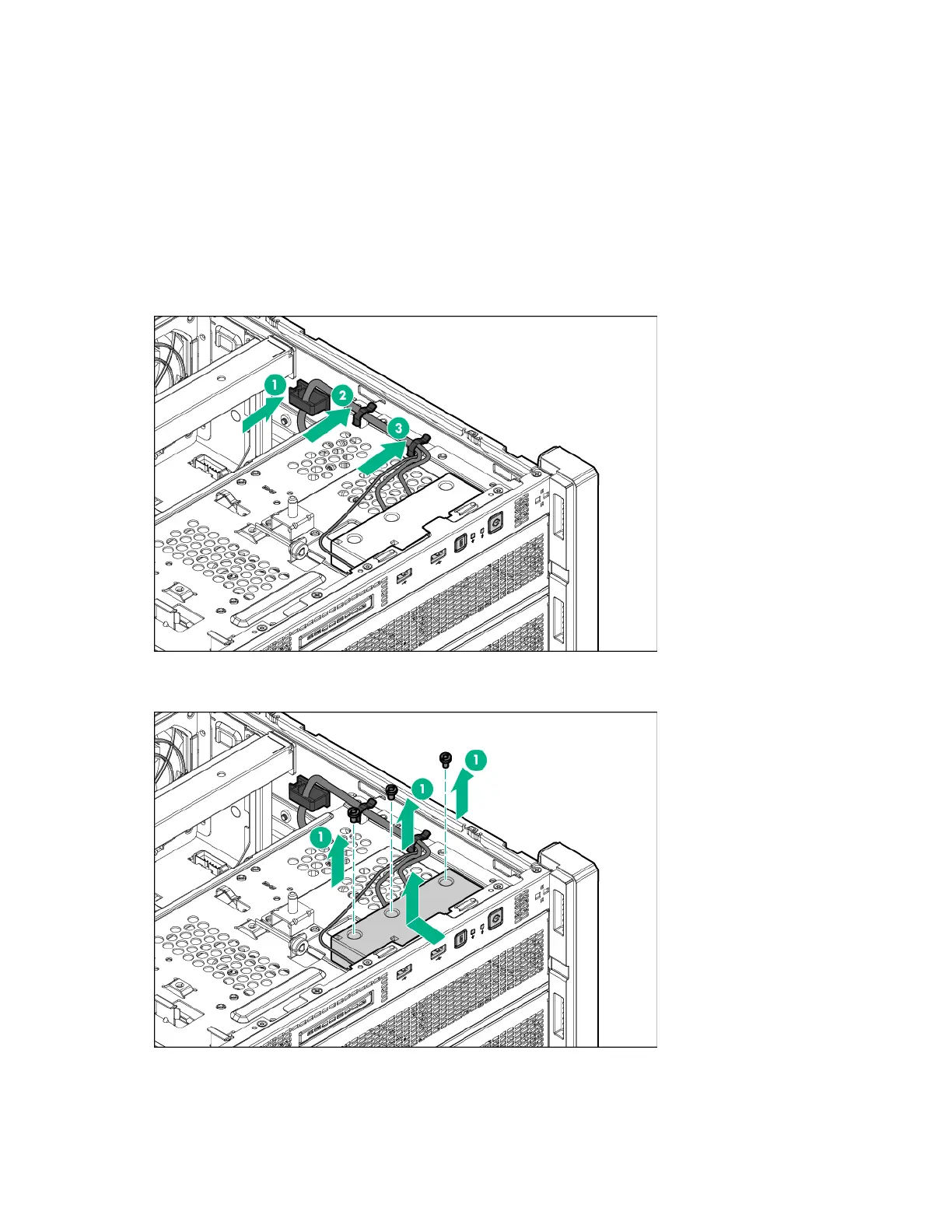

7. Remove the fan cage (on page 31).
8. Disconnect the front I/O cable from the system board. For more information, see "System board
components (on page 85)."
9. Release the front I/O cables from the cable clips.
10. Remove any installed device or cable from the USB port.
11. Remove the front I/O module assembly.
To replace the component, reverse the removal procedure.
