Component identification 78
Item Description
1
Media/drive cage bay
2
Drive cage bay
3
Serial label pull tab*
4
LFF SAS/SATA drives
5
Optical drive bay
6
USB 2.0 connectors (2)
*The serial label pull tab is double-sided. One side shows the server serial number, and the other side shows the
default iLO account information. The same information is printed on a label attached to the chassis.

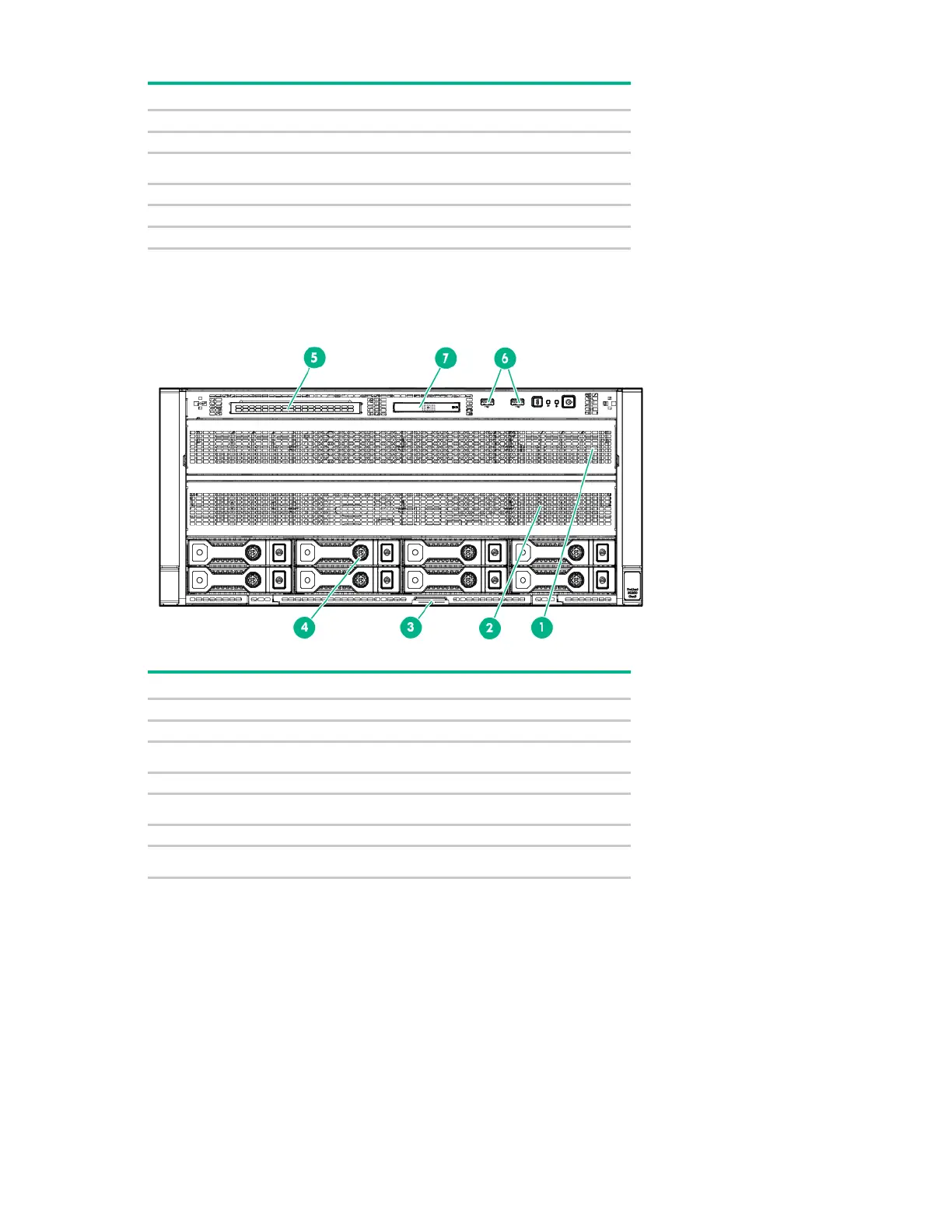

• LFF model (rack orientation)
Item
Description
1
Media/drive cage bay
2
Drive cage bay
3
Serial label pull tab*
4
LFF SAS/SATA drives
5
Optical drive bay
6
USB 2.0 connectors (2)
7
Systems Insight Display bay
*The serial label pull tab is double-sided. One side shows the server serial number, and the other side shows the
default iLO account information. The same information is printed on a label attached to the chassis.
For more information on box and drive numbering, see "Device numbering (on page 90)."
