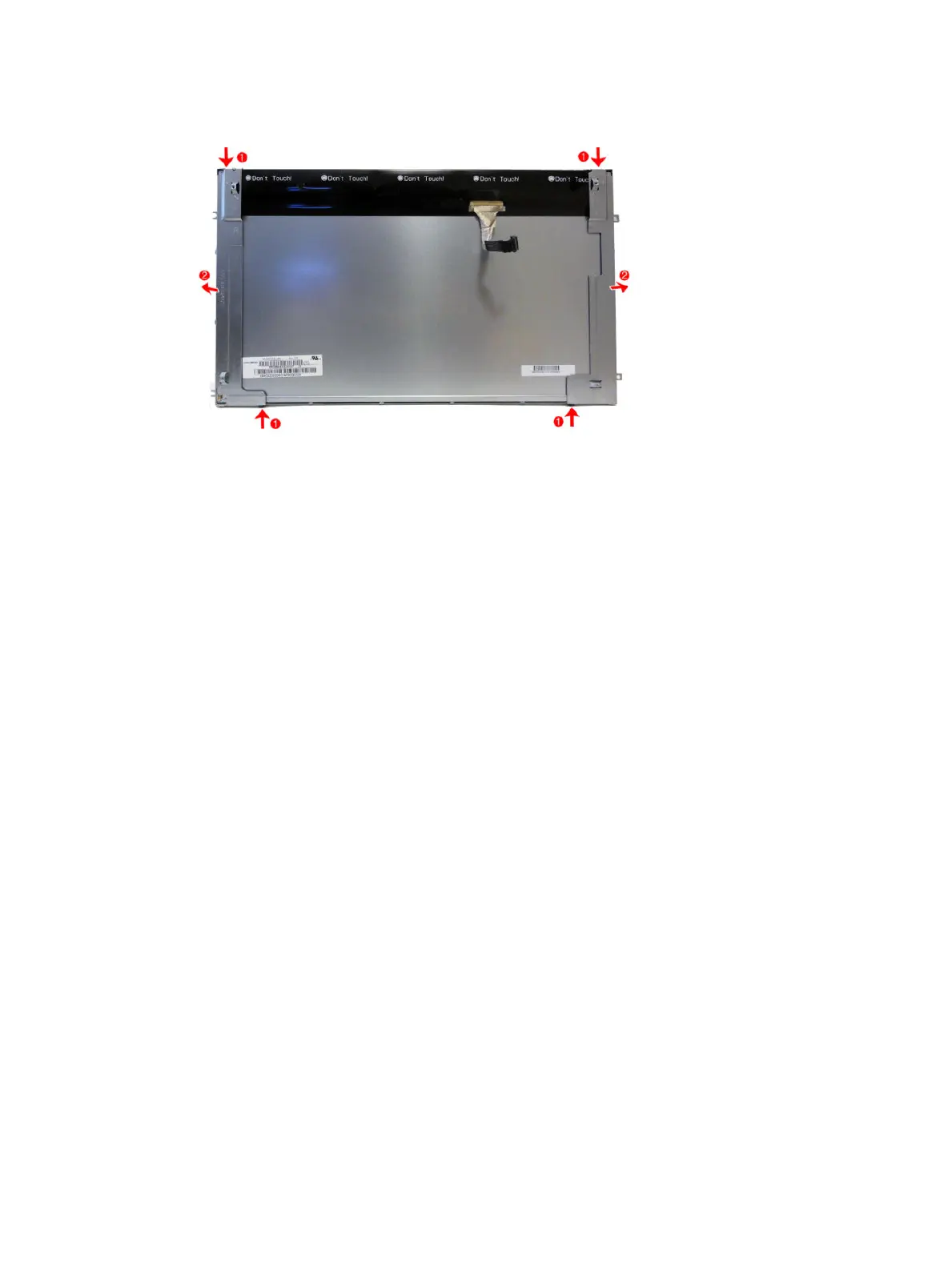

15. Non-touch models: If it is necessary to remove the brackets from the panel, remove the two Torx

screws from each bracket (1), and then rotate the brackets o the panel (2).

To install the display panel, reverse the removal procedures.

60 Chapter 4 Removal and Replacement Procedures
