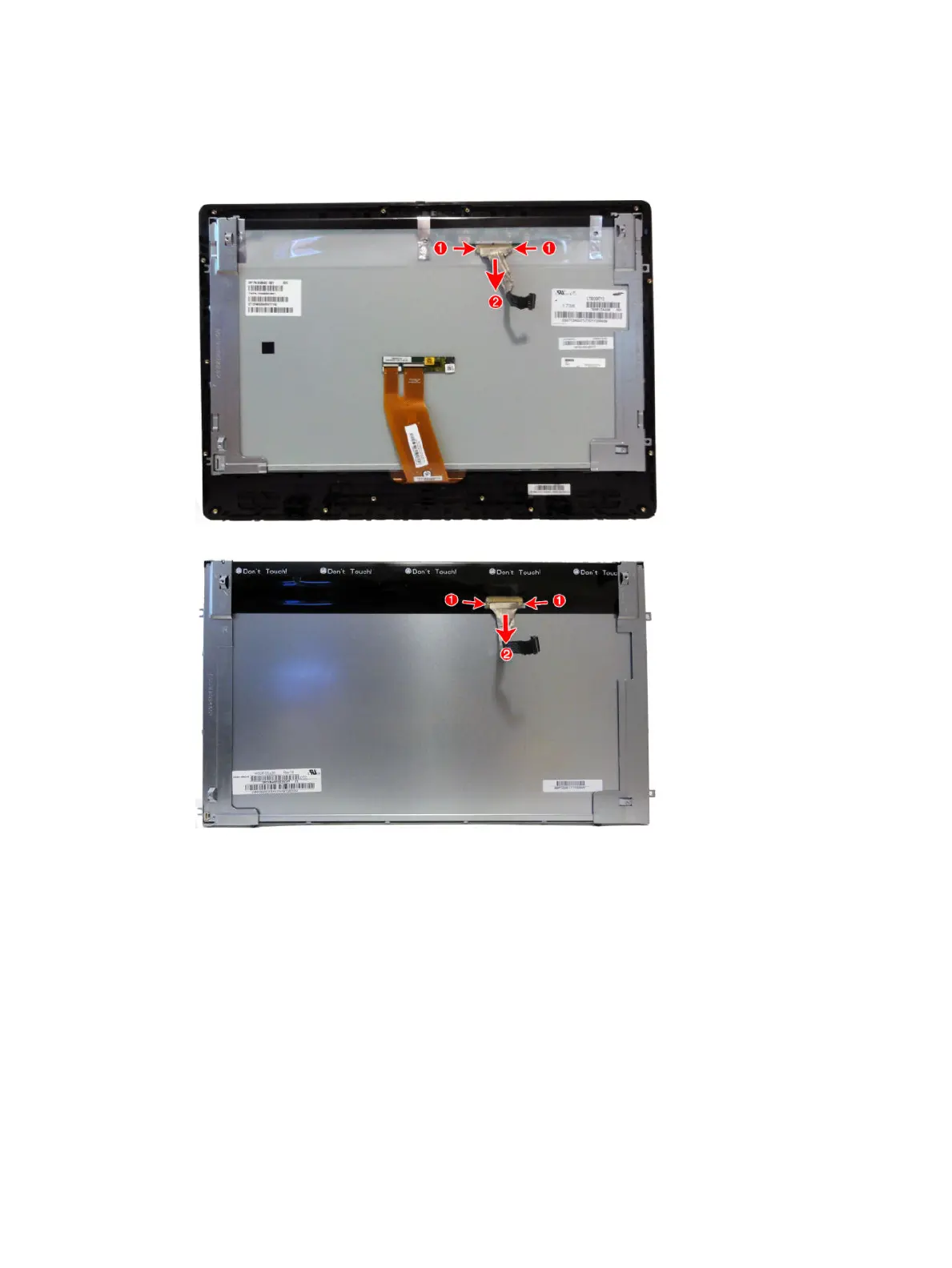

14. If it is necessary to remove the display cable, disconnect the display cable from the connector on the

display panel by pressing on the latches on each side of the connector (1), and then pulling the cables

from the connector (2).

Touch models

Non-touch models

Display panel 59
