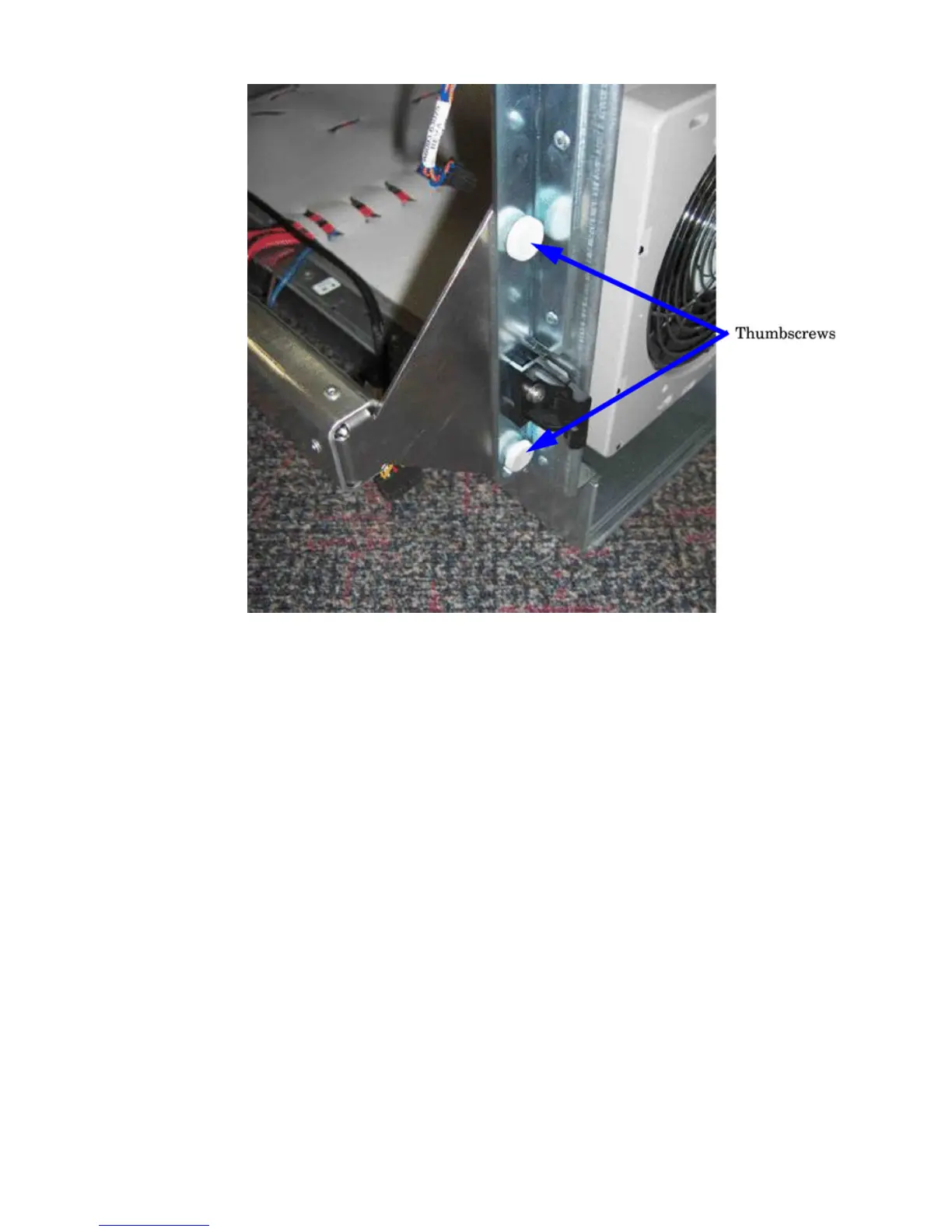

Figure 2-6 Attaching the Front of Handle to Chassis
7. Repeat steps 2—4 to install the other handle on the other side of the server.
8. After handles are secured, server is ready to lift.
9. Handles are removed in reverse order of steps 2—4.
10. After moving the server, remove the lift handles from the chassis.
11. After the server is secured, replace the previously removed cell boards and bulk power
supplies.
12. Reinstall the side covers and front bezel.
Using the RonI Model 17000 SP 400 Lifting Device
Use the lifter designed by the RonI company to rack-mount the server. The lifter can raise 400
lb/182 kg to a height of 5 feet. The lifter can be broken down into several components. When
completely broken down, no single component weighs more than 25 lb/12 kg. The ability to break
the lifter down makes it easy to transport from the office to the car and then to the customer site.
Documentation for the RonI lifter has been written by RonI and is available on the HP Cybrary:
http://cybrary.inet.cpqcorp.net/ARCHIVE/PUBS/USERS/LIFTOFLEX-17000.pdf. Complete details
on how to assemble the lifter, troubleshoot the lifter, and maintain the lifter are provided by
RonI.
Use the following procedure to unload the server from the pallet after the lifter is assembled.
Using the RonI Model 17000 SP 400 Lifting Device 35
